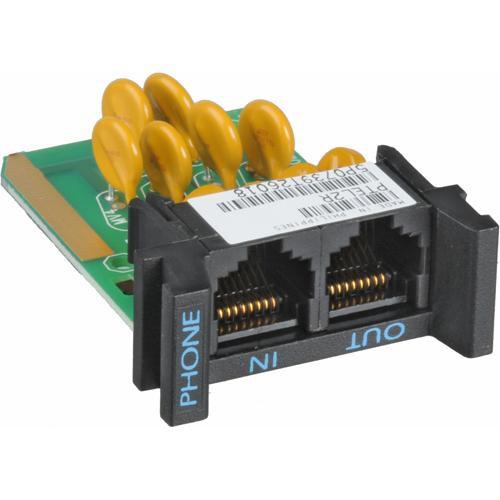

User Manual for APC RJ-45 and RJ-11 Surge Protection Module for Analog Phone Line Click to enlarge the picture
Contents of the user manual for the APC RJ-45 and RJ-11 Surge Protection
- Product category: UPS Accessories APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Accessories
|
User manual for the APC RJ-45 and RJ-11 Surge Protection contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The RJ-45 and RJ-11 Surge Protection Module for Analog Phone Line from APC is a replacement module for APC's Modular Data Line Surge Protection System. The module installs in an available port on this system to provide RJ-45 or RJ-11 analog phone line surge protection. This is a great way to replace a failed module or to add another line of RJ-45 or RJ-11 protection to the system. - RJ-45 or RJ-11 Dataline Surge Protection
- The module protects network devices from electrical surges that may be transmitted over analog phone cables with RJ-45 or RJ-11 connectors. It is compatible with the Modular Data Line Surge Protection System, model numbers PRM24 and PRM4, by APC.
UPC: 731304202851 In the Box APC RJ-45 and RJ-11 Surge Protection Module for Analog Phone Line Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC RJ-45 and RJ-11 Surge Protection Module for Analog Phone Line in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC PTEL2R Specs | Surge Energy Rating | Peak Current Normal Mode: 0.20 kA
Peak Current Common Mode: 0.25 kA
NM Surge response Time: 1 ns
Dataline Protection: RJ-11 Modem/Fax protection, RJ-11 Modem/Fax protection (four wire dual line), RJ-11 Modem/Fax protection (two wire single line), RJ-11 Modem/Fax/DSL protection (four wire dual line), RJ-11 Modem/Fax/DSL protection (two wire single line), RJ-45 Modem/Fax protection (four wire dual line), RJ-45 Modem/Fax protection (two wire single line), RJ-45 Modem/Fax/DSL protection (four wire dual line)
Data Lines Protected: 1-4 (RJ-11); 3-6 (RJ-45)
Let Through Voltage Rating: < 260 | | Dimensions (WxHxD) | 0.73 x 1.72 x 2.72" (1.9 x 4.4 x 6.9 cm) | | Weight | 0.05 lb (0.02 kg) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 1.5" |
