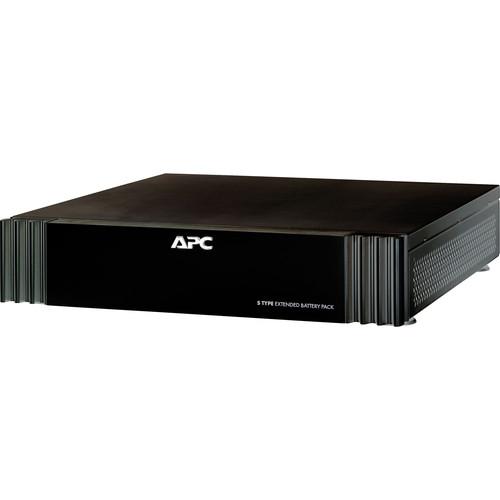

User Manual for APC SBATT AV S Type Extended Battery Pack 48VDC Click to enlarge the picture
Contents of the user manual for the APC SBATT AV S Type Extended
- Product category: Power Distributors & Conditioners APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Distributors & Conditioners
|
User manual for the APC SBATT AV S Type Extended contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The SBATT AV S Type Extended Battery Pack 48VDC by APC provides up to 81 minutes of additional battery life for the APC AV S15 Power Conditioner with Battery Backup. Connect two SBATTs and get up to 159 minutes of extra battery life increasing the runtime by approximately 200%. The SBATT prolongs battery life by regulating the charge voltage according to battery temperature and allows additional run time to be quickly added whenever needed. It also warns you when a battery is not available to provide backup power. Not only is the SBATT stylish and an essential addition to the S15, but also provides convenient, tool-less horizontal and vertical mounting options allowing you to easily integrate it in with your existing system. - One SBATT provides the S15 Power Conditioner with up to 32 minutes of extended battery time for a full load and 81 minutes for a half load
- Two SBATTs provide the S15 Power Conditioner with up to 62 minutes of extended battery time for a full load and 159 minutes for a half load
- Allows additional run time to be quickly added as needed
- Prolongs battery life by regulating the charge voltage according to battery temperature
- Includes tool-less horizontal and vertical mounting options
- Warns when a battery is not available to provide backup power
UPC: 731304235675 In the Box APC SBATT AV S Type Extended Battery Pack 48VDC (Black) All Required Connectors Rack Mounting Brackets Limited 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC SBATT AV S Type Extended Battery Pack 48VDC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SBATTBLK Specs | Nominal Voltage | 48VDC | | Battery | Eight 12V, 9 amp-hour, Sealed lead-acid maintenance-free batteries | | Battery Volt-Amp-Hour Capacity | 864 | | Battery Blocks | 4 (per string) | | Battery Life | 2-5 years (depending on use, environment and temperature) | | Battery Runtime | SBATT plus S15 batteries
Full load: 32 minutes
Half load: 81 minutes
Two SBATTs plus S15 batteries
Full load: 62 minutes
Half load: 159 minutes Actual runtimes are determined by load, battery charge level, battery health and quantity of batteries installed. Additional runtime can be achieved by adding a second SBATT unit to your system. | | Operating Environment | 32 to 104 °F (0 to 40 °C) | | Operating Relative Humidity | 5 to 95% | | Operating Elevation | 0 to 10000 feet (0 to 3000 meters) | | Storage Temperature | 5 to 113 °F (-15 to 45 °C) | | Storage Relative Humidity | 5 to 95% | | Storage Elevation | 0 to 50000 feet (0 to 15000 meters) | | Rack Height | 2U | | Color | Black | | Dimensions | 17 x 3.5 x 18.55" (43.2 x 8.89 x 47.1 cm) | | Weight | 55 lb (24.94 kg) | | | | Package Weight | 74.5 lb | | Box Dimensions (LxWxH) | 25.5 x 21.0 x 11.3" |
