User Manual for APC Service Bypass Panel 200 208 240V Click to enlarge the picture
Contents of the user manual for the APC Service Bypass Panel 200 208
- Product category: UPS Accessories APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Accessories
|
User manual for the APC Service Bypass Panel 200 208 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

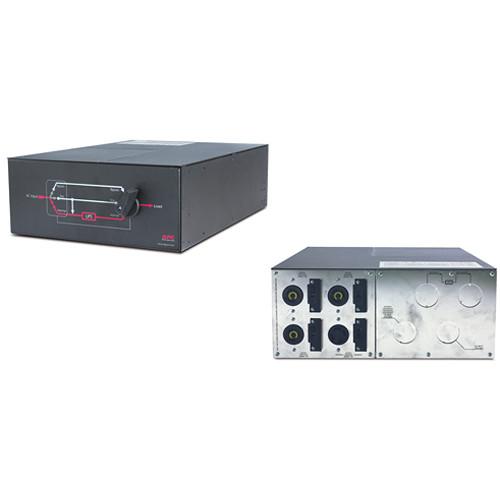

Product description The black Service Bypass Panel 200/208/240V from APC is designed for both home and corporate environments. It improves the manageability, availability and performance of sensitive electronic, network, communications and industrial equipment of all sizes. - Breaker maintenance bypass panel to isolate the UPS from the critical load
UPC: 731304225195 In the Box APC Service Bypass Panel 200/208/240V (Black) Rack Mounting Brackets 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Service Bypass Panel 200 208 240V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SBP16KRMP4U-HW Specs | Output | Nominal Output Voltage: 120 V, 200 V, 208 V
Maximum Total Current Draw per Phase: 100 A
Output Connections: (1) Hard Wire 3-wire (2PH + G)
(1) Hard Wire 4-wire (2PH + N +G)
(1) NEMA L14-30 R
(3) NEMA L5-20 R
Overload Protection: Yes | | Input | Nominal Input Voltage: 208 V
Input Frequency: 50/60 Hz
Input Connections: Hard Wire 3-wire (2PH + G)
Hard Wire 4-wire (2PH+N+G)
Maximum Line Current per Phase: 100 A
Maximum Input Current per Phase: 100 A
Load Capacity: 20 kVA
Load Power Factor Range: 0 to 1 | | Environmental | Operating Environment: -4 to 122°F (-20 to 50°C)
Operating Relative Humidity: 0 to 95%
Operating Elevation: 0 to 15000' (0 to 4500 m)
Storage Temperature: -40 to 149°F (-40 to 65°C)
Storage Relative Humidity: 0 to 95%
Storage Elevation: 0 to 50000' (0 to 15000 m) | | Regulatory Approvals | CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778 | | Dimensions (W x H x D) | 17 x 7 x 26.5" (432 x 178 x 673 mm) | | Weight | 51 lb (23.18 kg) | | | | Package Weight | 74.0 lb | | Box Dimensions (LxWxH) | 38.5 x 23.5 x 11.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
