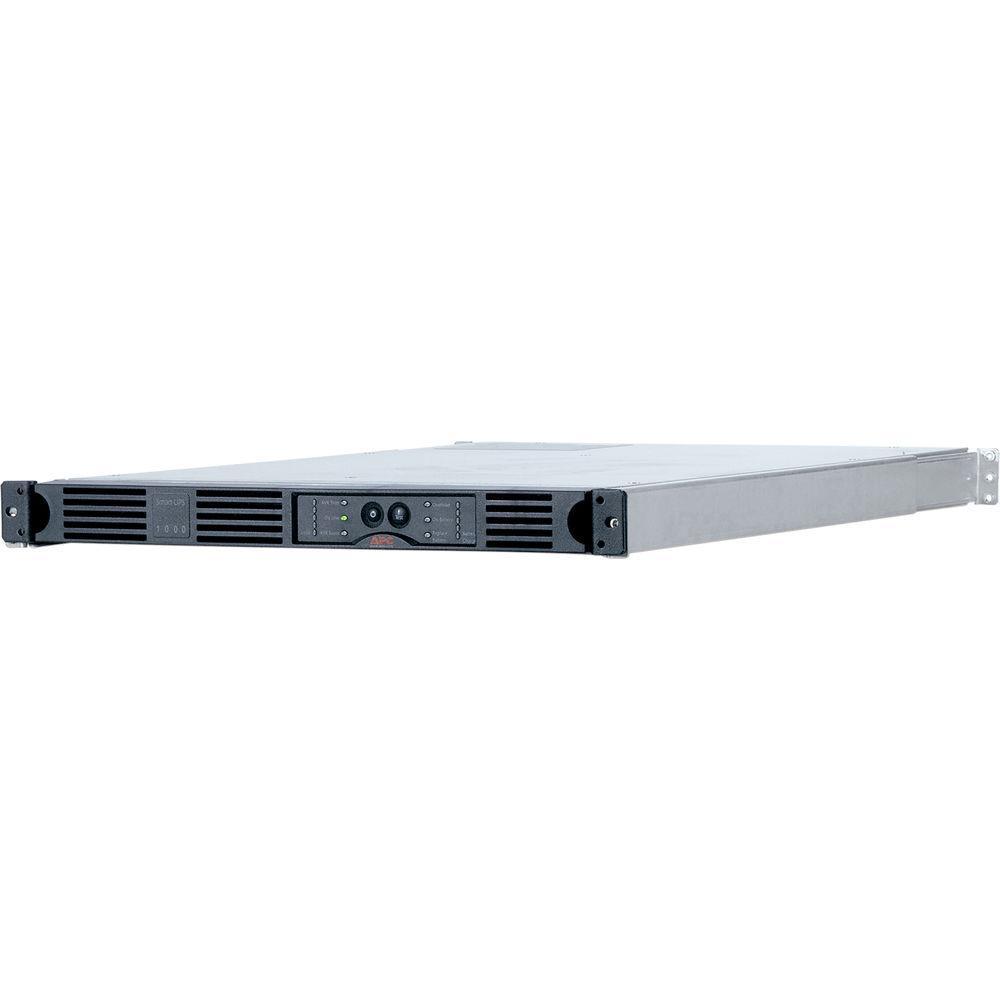

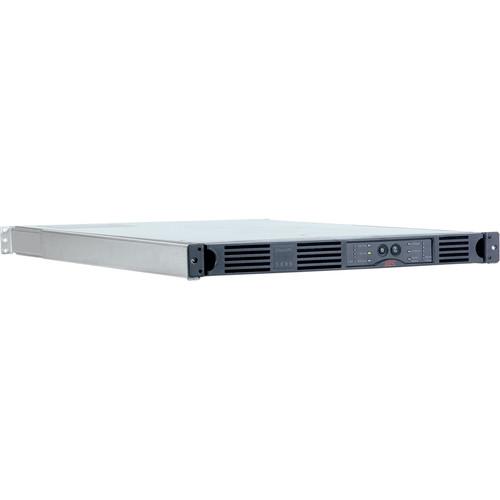

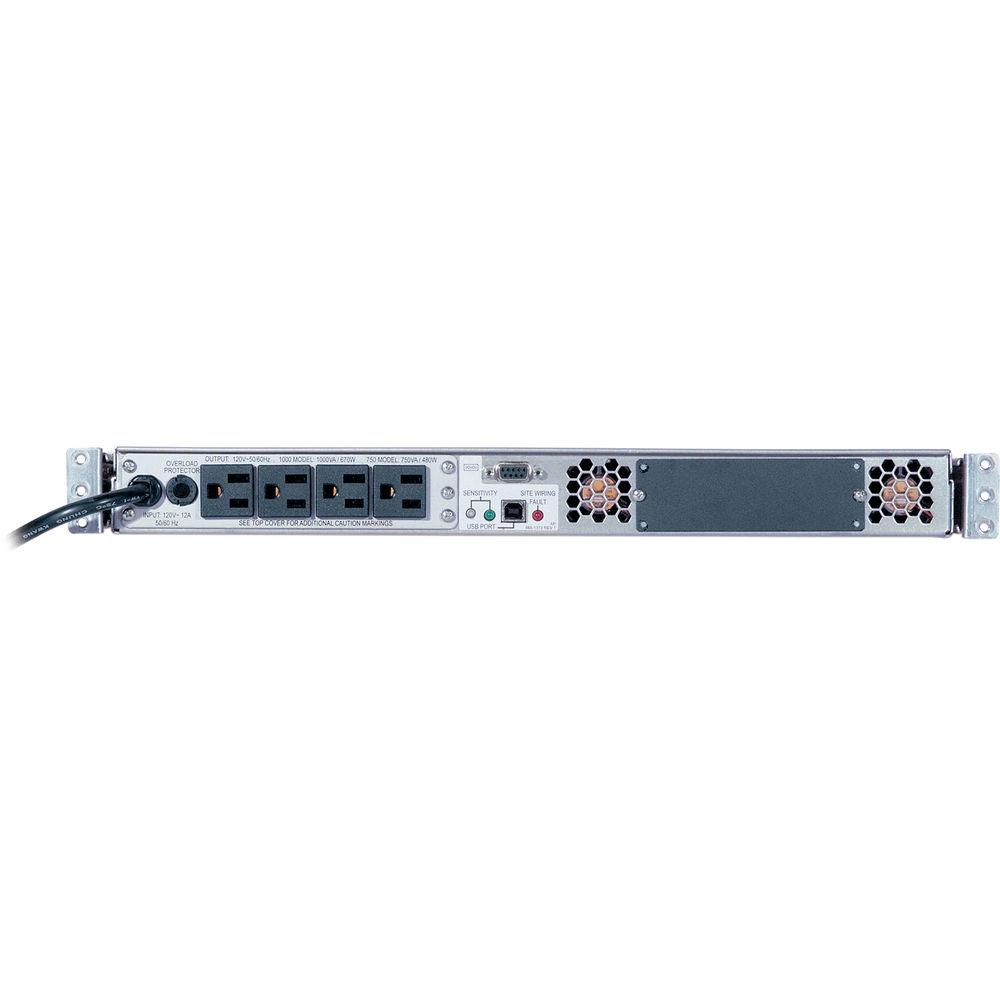

User Manual for APC Smart-UPS 1000 - 1000VA 640W Rack Mountable Power Surge Protector and Battery Backup Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 1000 - 1000VA 640W
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS 1000 - 1000VA 640W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart UPS 1000 VA USB & Serial Rack Mountable Power Surge Protector and Battery Backup from APC offers an intelligent solution to protect your hardware and data. Housed in an attractive rack mountable casing and featuring 4 outlets the Smart UPS 1000's battery can keep your equipment running for 14.5 minutes at half-load and 5.4 minutes at full-load if a power failure should occur. - Surge Protection
- Your hardware is protected by a powerful surge suppressor, rated to withstand a surge of up to 480 joules, assuring you that your hardware will be protected and will continue to operate correctly.
- Battery Backup
- A high-capacity battery can supply power for up to 14.5 minutes. This protects your data, giving you ample time to perform a system shutdown in case of power loss.
- Audible Alarm
- An audible alarm is built in to the unit, letting you know when the battery is in use, when the battery level is low, and if there is an overload. The unique sounds for each make it very easy for you to know if your attention is needed.
- Automatic Operation
- When connected to a computer via the built-in USB or RS-232 connection the power supply can automatically shut down your system in case of a power failure. This ensures a safe shutdown of your computer even if you're not around.
- Hot Swappable Battery
- The battery can be changed without having to turn off the UPS, allowing you to quickly and easily replace the battery without having to shut down your system.
- Rack Mountable
- The UPS is rack mountable, making it easy to install to power any sort of rack-mounted equipment.
UPC: 731304123910 In the Box APC Smart-UPS 1000 - 1000VA/640W Rack Mountable Power Surge Protector and Battery Backup Software CD-ROM Rack Mounting Brackets Rack Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 1000 - 1000VA 640W Rack Mountable Power Surge Protector and Battery Backup in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 1000 Specs | | | Total Outlets | 4 | | Protected Outlets | 4 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Communications | USB, Serial | | | | Surge Energy Rating | 480 Joules | | Maximum Wattage | 640 W | | Input Voltage Range | 82 to 144 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Load Capacity | 1000 VA | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 5.4 Minutes | | Half-Load Runtime | 14.5 Minutes | | Replacement Battery | RBC34 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | | | Cable Length | 8' / 2.4 m | | Dimensions (W x H x D) | 17.0 x 2.0 x 26.0" / 43.0 x 4.0 x 66.0 cm | | Weight | 48.0 lb / 21.8 kg | | | | Package Weight | 58.0 lb | | Box Dimensions (LxWxH) | 32.0 x 23.5 x 9.0" |
