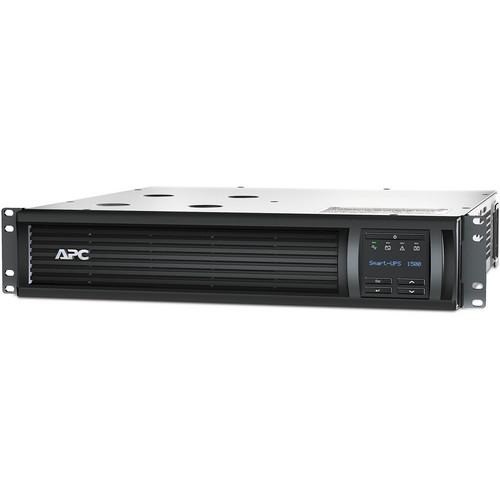

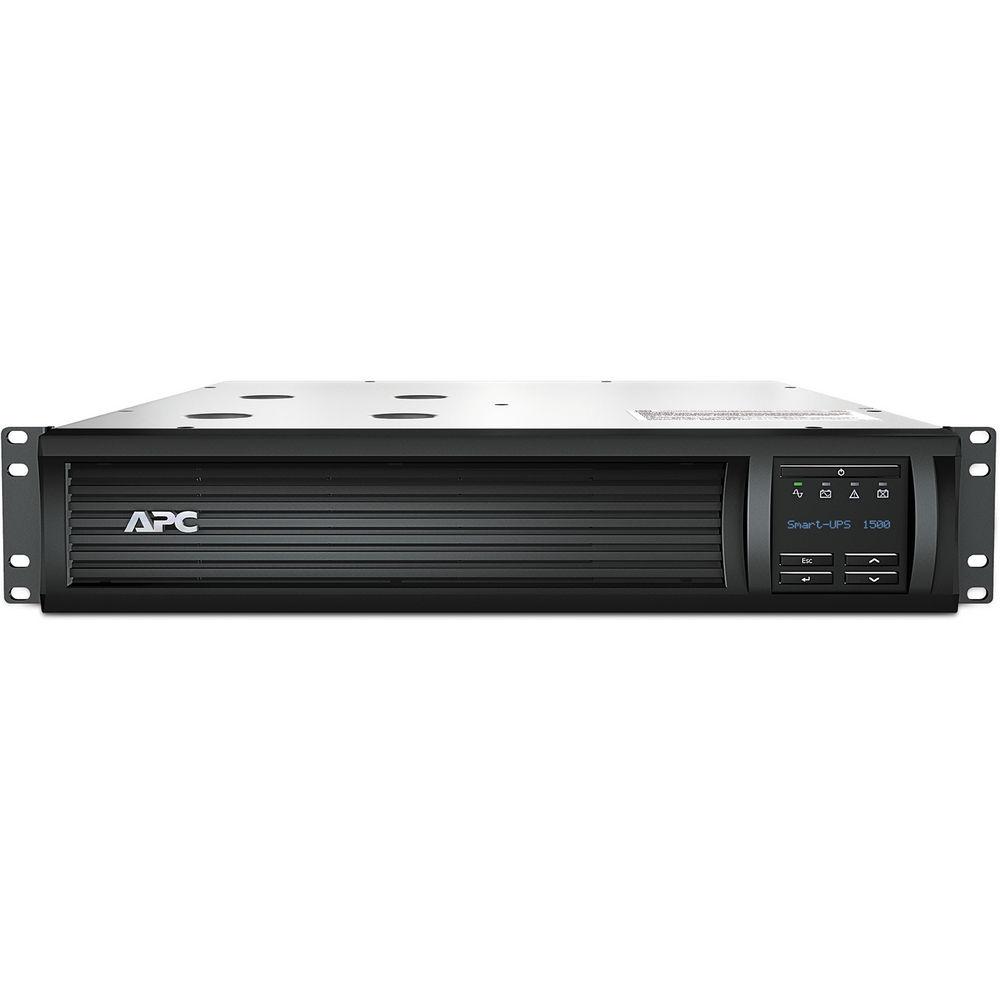

User Manual for APC Smart-UPS 1500VA 2U Rackmount with LCD Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 1500VA 2U Rackmount with
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS 1500VA 2U Rackmount with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The 100V, black Smart-UPS 1500VA 2U Rackmount with LCD from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery, which continues to power computers, monitors, and other components if the electricity is curtailed from them. An LCD status display provides information regarding the remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery, and the unit delivers battery-powered AC. Availability - Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy-to-use navigation keys.
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long-term maintenance planning.
- Green Mode
- Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve superior operating efficiency without sacrificing protection.
- Energy Meter
- Provides actual kilowatt hours of usage for energy-conscious users.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide high compatibility for active PFC (power factor corrected) servers and sensitive electronic devices.
- Single Switched Outlet Group
- A single outlet group may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off, and non-critical load shedding.
- High Online Efficiency
- Reduces utility costs, generates less heat.
- SmartSlot
- Customizes UPS capabilities with management cards.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
Availability - Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions, without using the battery.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic Self-Test
- Periodic battery self-tests ensures early detection of a battery that needs to be replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
Manageability - Network Manageable
- Provides remote power management of the UPS over the network.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low, or if there is an overload condition.
- LED Status Indicators
- Quickly provides unit and power status with visual indicators.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- USB Connectivity
- Provides management of the UPS via a USB port.
Serviceability - User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, thus reducing Mean Time to Repair (MTTR).
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to the protected equipment while batteries are being replaced.
- Predictive Failure Notification
- Provides early-warning fault analysis, ensuring proactive component replacement.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries, enabling timely preventive maintenance.
Adaptability - Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety - Safety Agency Approved
- The product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
UPC: 731304290445 In the Box APC Smart-UPS 1500VA 2U Rackmount with LCD (100V, Black) Smart-UPS Signaling RS-232 Cable Rack Mounting Support Rails Limited 2-Year Warranty Note: *Warranty is only for Japan Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 1500VA 2U Rackmount with LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

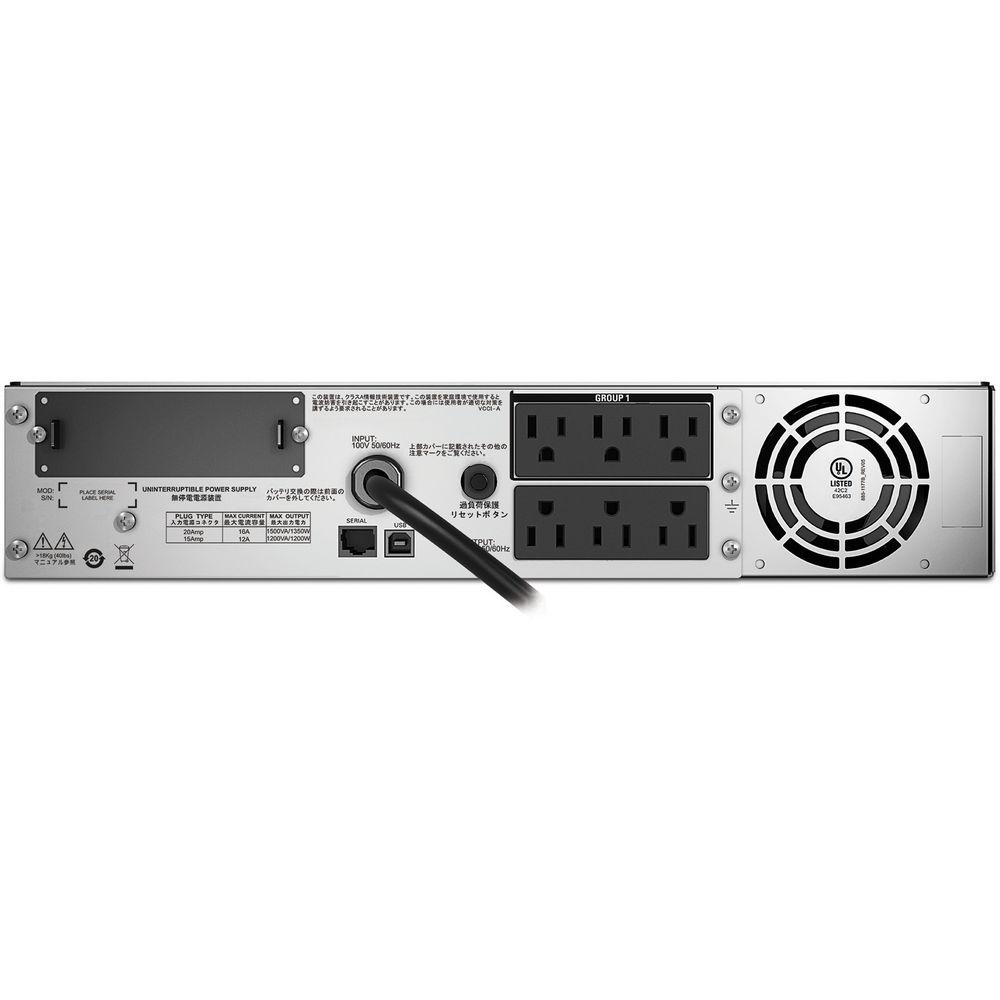

Technical parametersAPC SMT1500RMJ2U Specs | | | Total Outlets | 6 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB, Serial | | Noise Filtering | 0.3% | | Topology | Line Interactive | | | | Surge Energy Rating | 540 Joules | | Maximum Current | 12 A | | Maximum Wattage | 1200 W | | Nominal Input Voltage | 100 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 100 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <7% | | Load Capacity | 1200 VA | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 4 Hours | | Replacement Battery | APCRBC133 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 46 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 3.3 x 18.4" / 432.0 x 86.0 x 468.0 mm | | Weight | 61.3 lb / 27.8 kg | | | | Package Weight | 74.5 lb | | Box Dimensions (LxWxH) | 24.0 x 23.5 x 9.5" |
