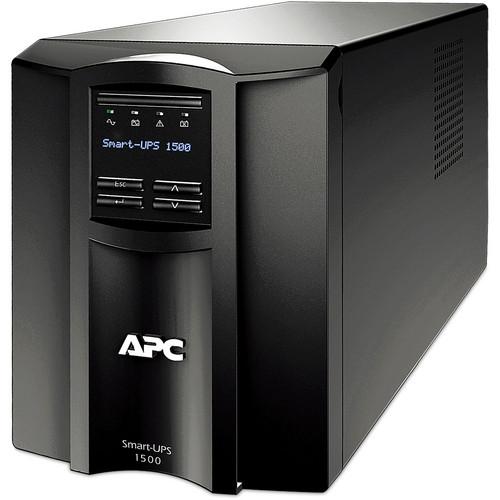

User Manual for APC Smart-UPS 1500VA LCD 120V with AP9631 Installed Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 1500VA LCD 120V with
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS 1500VA LCD 120V with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The black Smart-UPS 1500VA LCD 120V with AP9631 Installed from APC is a 1000W/1500VA uninterruptible power supply that features eight battery-powered outlets, a replaceable battery with a 3-hour recharge time and an LCD status and control panel. It also supplies battery-powered AC, provides a predictive battery replacement date and allows UPS customization with SmartSlot cards. This unit comes with an intuitive LCD interface that provides clear and accurate information and allows you to configure the UPS locally. It also features the ability to regulate the UPS according to the battery temperature, so if the unit is running hot, it can compensate by lowering the charge. It also operates with a pure sine wave output, which mimics utility power to the closest margins and levels of compatibility for power factor corrected servers and sensitive electronics. In Green Mode, the Smart-UPS 1500VA bypasses unused electrical components in good operating conditions and provides power where it is most needed, which gives the unit remarkable operating efficiency without compensating on protection for all devices. Changes in temperature and humidity are reported via the user interface or e-mail. You can connect the Smart-UPS 1500VA to a network using a 10 or 100 BaseT connection. It offers Telnet or SSH for remote management access and control output from external devices via output relays. This unit is shipped from the factory with the audible alarm feature turned off. You can reactivate the alarm through the LCD status and control panel. The Smart-UPS 1500VA is a smart and efficient way to manage power and maintain control over all your powered devices. - Intuitive LCD Interface
- Provides clear and accurate information in multiple languages and is capable of configuring the UPS locally with easy-to-use navigation keys.
- Predictive Battery Replacement Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long-term maintenance planning.
- Green Mode
- Features a (patent-pending) operating mode that bypasses unused electrical components in good power conditions to achieve remarkable operating efficiency without sacrificing on protection.
- Energy Meter
- Provides actual kilowatt hours of usage for energy-conscious users.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single Switched Outlet Group
- A single outlet group may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Customizable Input Contacts
- Monitor conditions from external devices.
- Device Encryption
- Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3.
- High Online Efficiency
- Reduces utility costs, generates less heat.
- 10/100 BaseT Connection
- Connect the device to a network using a 10 or 100 BaseT connection.
- SmartSlot
- Customize UPS capabilities with management cards.
- Temperature and Humidity Monitoring
- Changes in temperature and humidity are reported via the user interface or e-mail.
- Cold Start Capable
- Provides temporary battery power when the utility power is out.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Command Line Interface
- Offers Telnet or SSH for remote management access.
- Customizable Output Relays
- Control output from external devices via output relay(s).
UPC: 731304284314 In the Box APC Smart-UPS 1500VA LCD 120V with AP9631 Installed (Black) Smart-UPS Signaling RS-232 Cable USB Cable Web/SNMP Management Card CD with Software 3-Year Repair or Replacement Excluding Battery 2-Year Limited Warranty for Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 1500VA LCD 120V with AP9631 Installed in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMT1500X448 Specs | | | Total Outlets | 8 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | Data Line Protection | RJ45 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | No | | Noise Filtering | 0.3% | | Topology | Line Interactive | | | | Surge Energy Rating | 459 Joules | | Maximum Wattage | 1000 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 1500 VA | | Thermal Dissipation | 135 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | RBC7 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Noise Level | 45 dBA | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 8.6 x 6.7 x 17.3" / 219.0 x 171.0 x 439.0 mm | | Weight | 53.0 lb / 24.1 kg | | | | Package Weight | 58.5 lb | | Box Dimensions (LxWxH) | 23.3 x 14.5 x 13.0" |
