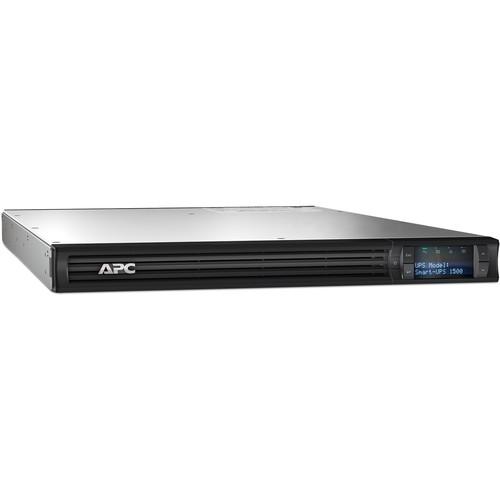

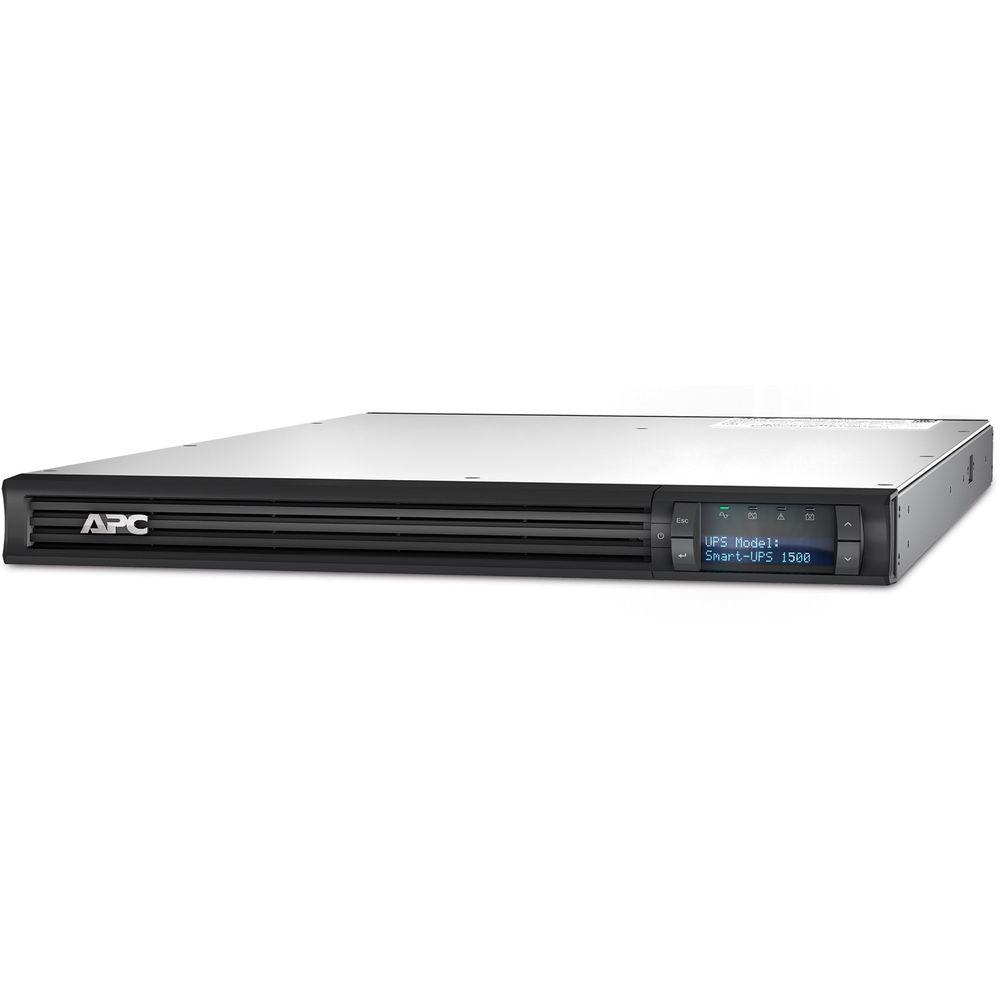

User Manual for APC Smart-UPS 1500VA RM 1U LCD Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 1500VA RM 1U LCD
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS 1500VA RM 1U LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart-UPS 1500VA RM 1U LCD (120V) from APC provides remote power management of UPS over the network. It safeguards equipment from surges, spikes, lightning, and other power disturbances. An onboard LCD display, available in multiple languages, gives you the ability to configure the UPS locally, and comes with easy-to-use navigation keys. The Green mode feature bypasses unused electrical components in good power conditions, and saves energy costs while reducing the impact on the environment. It also increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR). It features hot-swappable batteries, temperature compensated battery-charging, LED status indicators, automatic self-test, and more. Feature - High Online Efficiency
- Reduces utility costs, generates less heat
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions, to achieve high operating efficiency without sacrificing any protection
- High Frequency Design
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling
- Energy Meter
- Provides actual kilowatt hours of usage
- Predictive Replace Battery Date
- Provides the month and year when battery replacement is recommended, to aid in long term maintenance planning

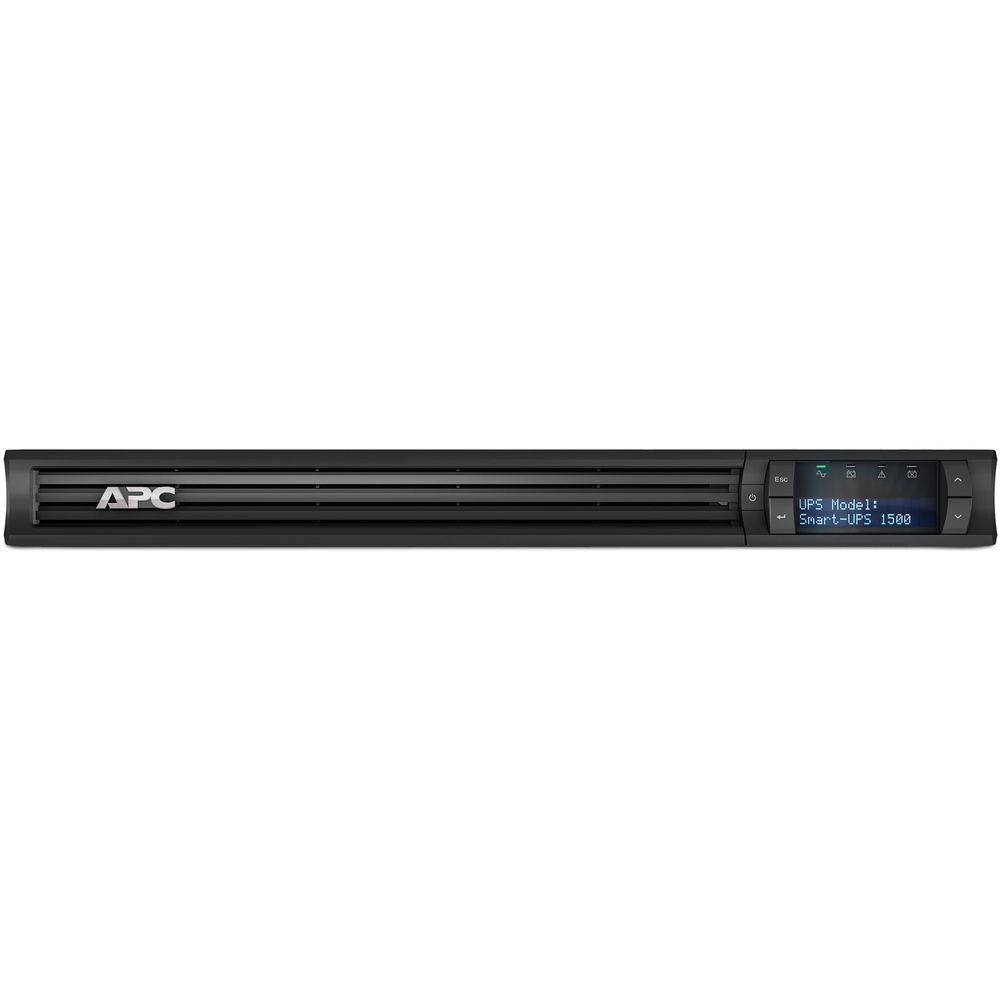

- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys

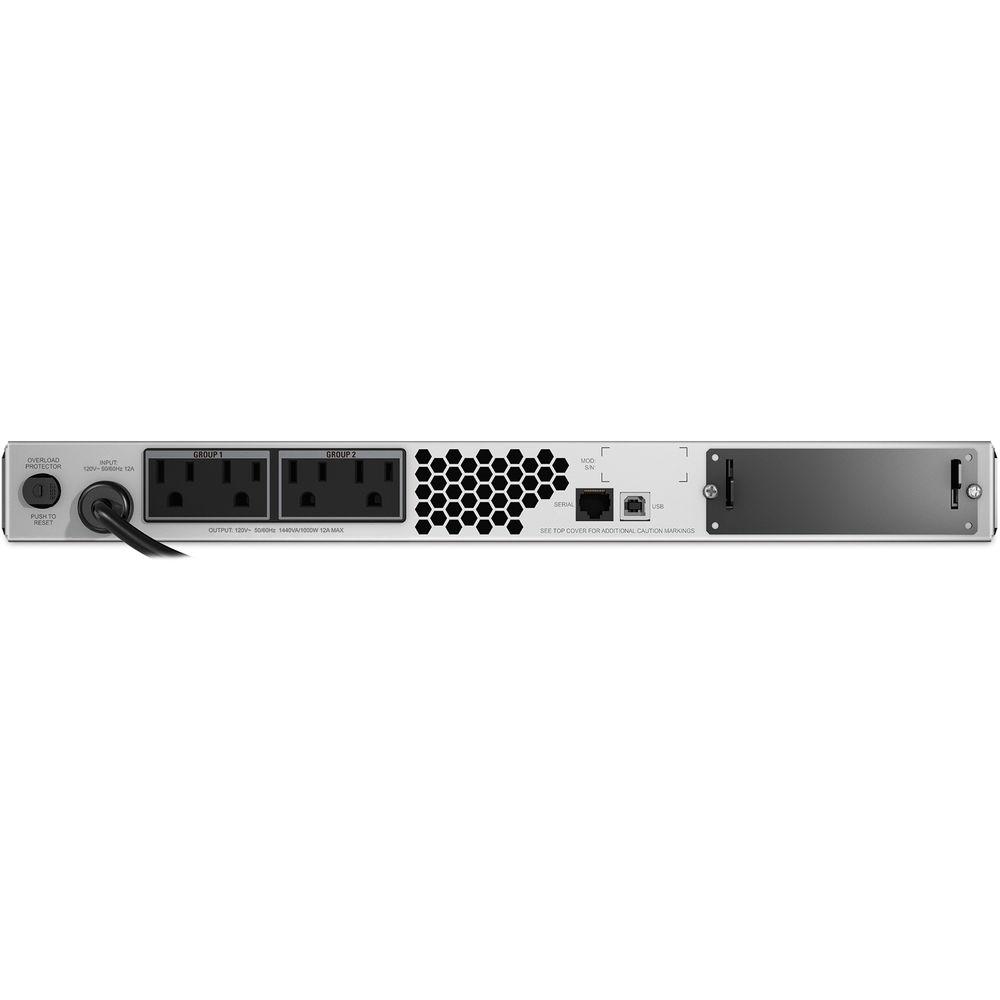

- Multiple Switched Outlet Groups
- Multiple outlet groups that may be controlled separately from the UPS for the discrete reboot of hung devices, sequenced on/off and non-critical load shedding
- Pure Sine Wave Output On Battery
- Simulates utility power to provide optimal compatibility for active PFC (Power Factor Corrected) servers and sensitive electronics
- Cold-Start Capable
- Provides temporary battery power when the utility power is out
- SmartSlot
- Customize UPS capabilities with management cards
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
Availability - Boost and TrimAutomatic Voltage Regulation (AVR)
- Gives high application availability by correcting low and high voltage conditions
- Optimal Battery Management
- Maximizes battery performance, life, and reliability through precision charging
- Power-Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
Manageability - Network Manageable
- Provides remote power management of the UPS over the network
- Audible Alarms
- Actively lets you know if the unit is on battery, if the battery is low or if there is an overload condition
- LED Status Indicators
- Quickly understand unit and power status with visual indicators
- Serial Connectivity
- Provides management of the UPS via a serial port
- USB Connectivity
- Provides management of the UPS via a USB port
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
Serviceability - User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
- Resettable Circuit Breakers
- Enables a quick recovery from overload events
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability - Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
Safety - Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
UPC: 731304299394 In the Box APC Smart-UPS 1500VA RM 1U LCD (120V) Software CD Documentation CD Rack Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Limited 3-Year Repair or Replace (Excluding Battery) Limited 2-Year for Battery More from Manufacturer rbdtqdea Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 1500VA RM 1U LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMT1500RM1U Specs | | | Total Outlets | 4 | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Topology | Line Interactive | | | | Surge Energy Rating | 540 Joules | | Maximum Current | 12 A | | Maximum Wattage | 1000 W | | Nominal Input Voltage | 120 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 1440 VA | | Thermal Dissipation | 88 BTU/Hour | | Maximum Efficiency | 98.3% | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 4 Hours | | Replacement Battery | APCRBC88 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 46 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 1 RU | | Dimensions (W x H x D) | 17.0 x 1.7 x 26.2" / 432.0 x 44.0 x 665.0 mm | | Weight | 53.1 lb / 24.1 kg | | | | Package Weight | 64.8 lb | | Box Dimensions (LxWxH) | 31.8 x 22.5 x 8.0" |
