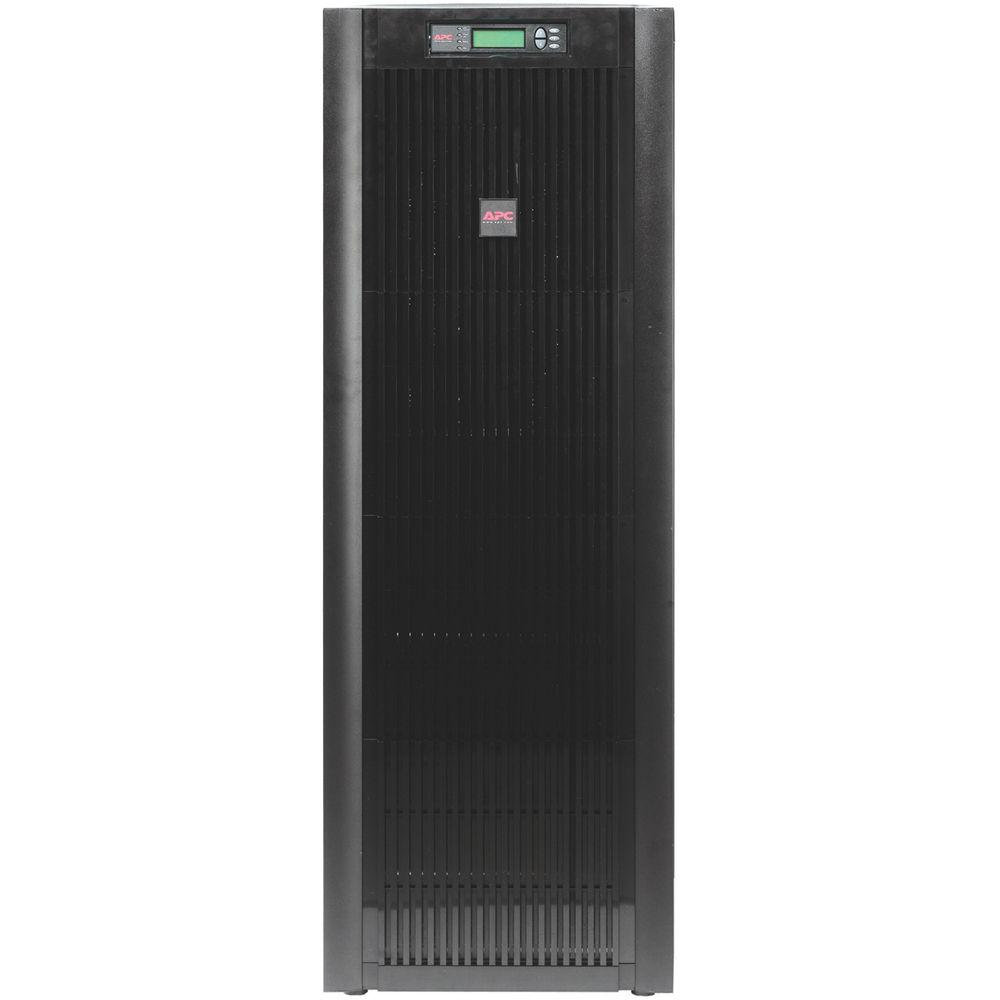

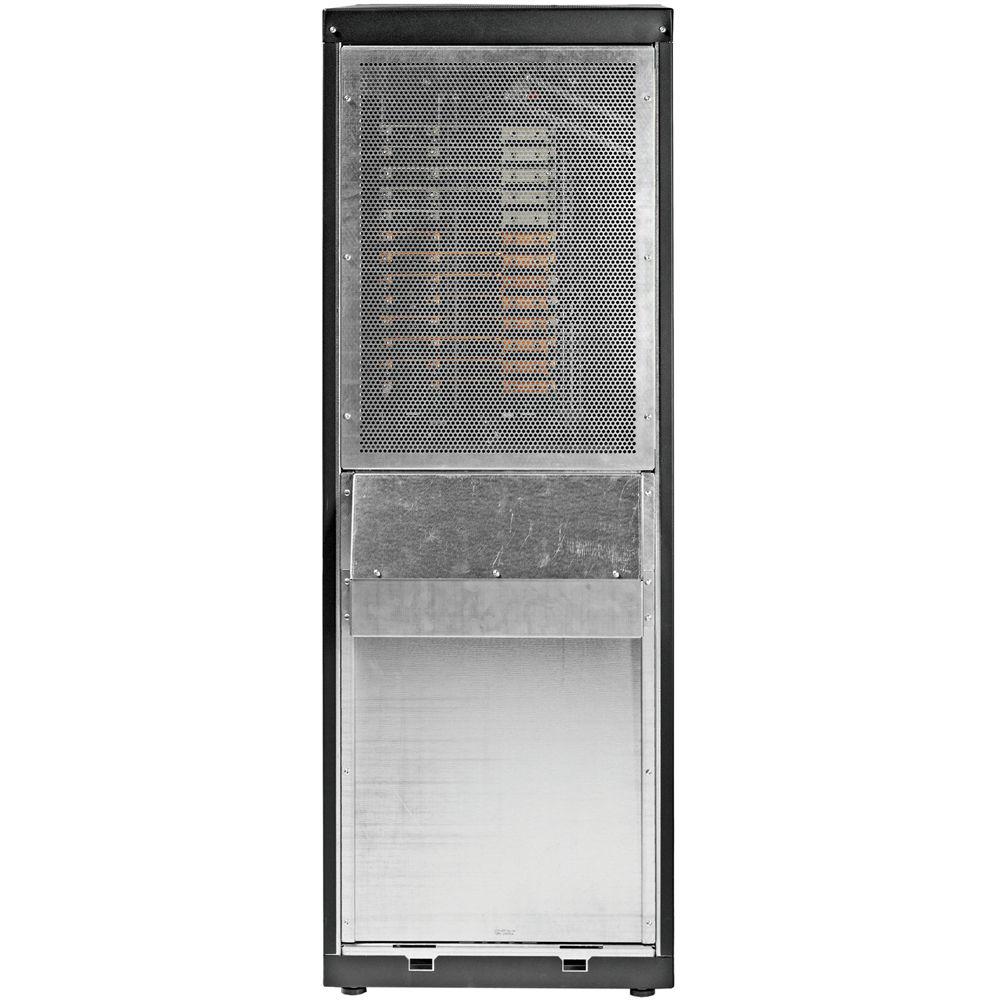

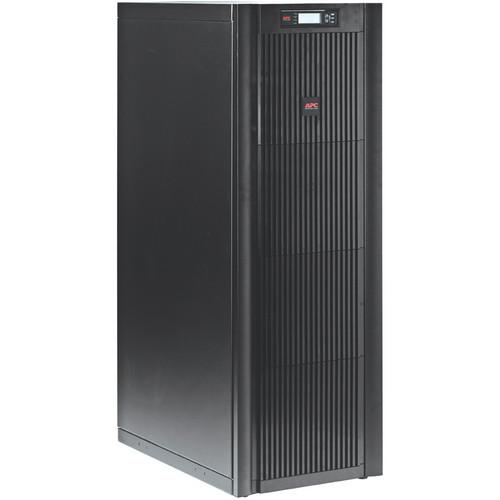

User Manual for APC Smart-UPS 20KVA VT 400V With 4 Battery Modules Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 20KVA VT 400V With
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS 20KVA VT 400V With contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart-UPS 20KVA VT 400V with 4 Battery Modules from APC offers centralized three-phase power protection. This unit is an ideal sourrce of uninterrupted power specially for small data centers, large retail stores, regional offices.The Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses and scalable runtime with hot-swappable batteries for increased availability. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers and generators due the Smart-UPS VT's Soft Start feature. Service ability is greatly enhanced by user-replaceable batteries. - Dual Mains Input
- Increases availability by allowing the UPS to be connected to two separate power sources.
- Scalable Runtime
- Allows additional run time to be quickly added as needed.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Generator Compatible
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
- Battery Modules Connected in Parallel
- Delivers higher availability through additional batteries.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
- Battery Replacement Without Tools
- Allows quick, easy battery replacement.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Shippable with Modules Installed
- Enables pre-installation UPS staging and testing and faster installation.
- Modular Design
- Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
- Network Manageable
- Provides remote management of the UPS over the network.
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager.
- LCD Display
- An LCD Alphanumeric display indicates system parameters and alarms
- Audible Alarms
- Provides notification of changing utility power and UPS conditions.
- Programmable Frequency
- Ensures compatibility with different input frequencies.
- LED Status Indicators
- LEDs provide visual confirmation of unit and power status.
- SmartSlot
- Customize UPS capabilities with management cards.
- Input power factor correction
- Minimizes installation costs by enabling the use of smaller generators and cabling.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Manual Maintenance Bypass
- Reduces installation costs by eliminating the need for an external mechanical bypass.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Frequency and Voltage Regulation
- The unit corrects poor frequency and voltage conditions without drawing power from the battery this ensures that maximum battery power is available in case of mains failure.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out. It operates even when main ultility power is switched off.
In the Box APC Smart-UPS 20KVA VT 400V With 4 Battery Modules Battery Modules Ship Installed Power Modules Ship Installed Bolt Down Brackets Network Management Card CD with Software Installation Guide Start Up Included User Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 20KVA VT 400V With 4 Battery Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 20kVA Specs | | | SmartSlot Interface | 1 | | Communications | Serial | | Emergency Power Off (EPO) Support | Yes | | | | Maximum Current | 27 A | | Maximum Wattage | 16,000 W | | Nominal Input Voltage | 400 VAC 3PH | | Input Voltage Range | 380 to 415 VAC | | Input Voltage Adjustable Range | 304 to 477 VAC | | Input Frequency | 50/60 Hz ± 10 Hz (Auto Sensing) | | Output Voltage Range | 230 to 415 VAC | | Voltage Distortion | <5% | | Load Capacity | 20,000 VA | | Circuit Breaker Rating | 50 A | | Thermal Dissipation | 3112 BTU/Hour | | Maximum Efficiency | 95.3% | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Cells | 4 | | Charging Time | 5 Hours | | Replacement Battery | VRLA | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -60 to 104°F / -50 to 40°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 3333' / 1000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 51 dBA | | | | Dimensions (W x H x D) | 59.0 x 22.0 x 32.0" / 149.9 x 55.9 x 81.3 cm | | Weight | 1320.8 lb / 599.1 kg | | | | Package Weight | 1415.0 lb | | Box Dimensions (LxWxH) | 65.0 x 42.0 x 26.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
