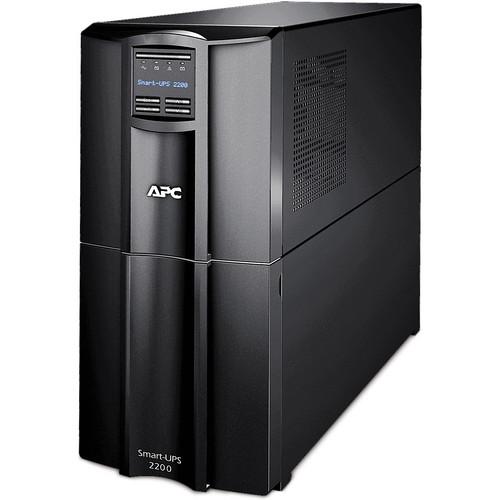

User Manual for APC Smart-UPS 2200 LCD 100V Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 2200 LCD 100V
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS 2200 LCD 100V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart-UPS 2200 LCD 100V from APC protects critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, the UPS has extremely high efficiency at low, medium and high load levels, making it ideal for today's multi-core or virtualized servers that have varying load consumption. - Availability
- Boost and Trim Automatic Voltage Regulation (AVR): Provides higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Intelligent Battery Management: Maximizes battery performance, life and reliability through intelligent, precision charging.
Power Conditioning: Protects connected loads from surges, spikes, lightning and other power disturbances.
Temperature-Compensated Battery Charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic Restart of Loads After UPS Shutdown: Automatically starts up the connected equipment upon the return of utility power.
Automatic Self-Test: Periodic battery self-tests ensure early detection of a battery that needs to be replaced.
Disconnected Battery Notification: Warns when a battery is not available to provide backup power. - Manageability
- Network Manageable: Provides remote power management of the UPS over the network.
Audible Alarms: Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED Status Indicators: Quickly display unit and power status with visual indicators.
Serial Connectivity: Provides management of the UPS via a serial port.
USB Connectivity: Provides management of the UPS via a USB port (not available on all models).
Disconnected Battery Notification: Warns when a battery is not available to provide backup power. - Serviceability
- User-Replaceable Batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, thus reducing Mean Time to Repair (MTTR).
Hot-Swappable Batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Predictive Failure Notification: Provides early-warning fault analysis, ensuring proactive component replacement.
Resettable Circuit Breakers: Enables a quick recovery from overload events.
Battery Failure Notification: Provides early-warning fault analysis on batteries, enabling timely preventive maintenance - Adaptability
- Adjustable Voltage Transfer Points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable Voltage Sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. - Safety
- Safety Agency Approved: The product has been tested and approved to work safely with connected service provider equipment and within the specified environment.
- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages and is capable of configuring the UPS locally with easy-to-use navigation keys.
High Frequency Design: Reduces or eliminates bulky transformers, resulting in lighter units for ease of handling.
Predictive Replace Battery Date: Dynamically provides the month and year when battery replacement is recommended to aide in long-term maintenance planning.
Green Mode: Features patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve remarkable operating efficiency without sacrificing protection.
Energy Meter: Provides actual kilowatt hours of usage for energy-conscious users.
Single Switched Outlet Group: A single outlet group may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High Online Efficiency: Reduces utility cost, generates less heat.
EPO: Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
Pure Sine Wave Battery Backup: Prevents interruptions, lost pre-sets, missed DVR recordings, lost multimedia server data and premature projector bulb wear and tear when the power goes out.
SmartSlot: Customize UPS capabilities with management cards.
Field-Replaceable Power Distribution Panel: Ensures compatibility with equipment that has different plug types.
Temperature-Compensated Battery Charging: Prolongs battery life by regulating the charge voltage according to battery temperature. UPC: 731304291756 In the Box APC Smart-UPS 2200 LCD 100V Documentation CD Smart-UPS Signaling RS-232 Cable Limited 2-Year Warranty Note: Warranty only for Japan. Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 2200 LCD 100V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 2200 Specs | | | Total Outlets | 8 x NEMA 5-15R
2 x NEMA 5-20R | | Plug Type | NEMA L5-30P | | Data Line Protection | RJ11, RJ45 | | | | Load Capacity | 2200 VA | | Maximum Efficiency | 98% | | | | Certifications | REACH, RoHS, as per Manufacturer | | | | Package Weight | 133.0 lb | | Box Dimensions (LxWxH) | 28.5 x 22.5 x 14.0" |
