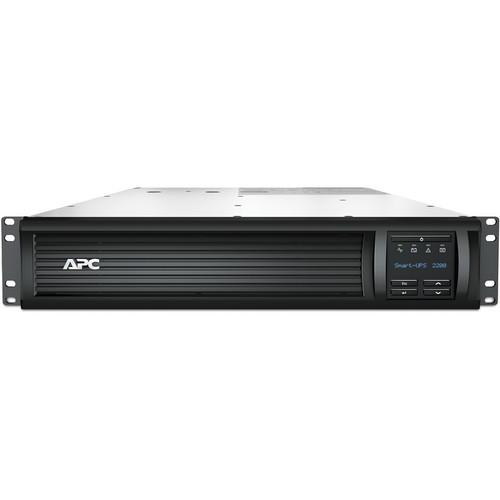

User Manual for APC Smart-UPS 2200VA LCD Rack Mount 2U Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 2200VA LCD Rack Mount
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS 2200VA LCD Rack Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) offers efficient network power protection to your servers, point-of-sale, routers, switches, hubs, and other network devices. With Automatic Voltage Regulation, the unit offers higher application availability by correcting low and high voltage conditions without utilizing the battery. Its intuitive LCD interface offers precise data in multiple languages along with the ability to configure the equipment locally with easy to use navigation keys.
With an intelligent battery management, the Smart-UPS 2200 VA RM 2U LCD 230 V maximizes battery performance, life, and reliability via precision charging. The unit features a Green operating mode that bypasses unused electrical components in good power conditions to attain high operating efficiency without compromising with any protection. It houses a power condition that offers protection for connected loads from surges, spikes, lightning, and other power disturbances. The equipment boasts of temperature-compensated battery charging capability to enhance battery life by controlling the charge voltage as per battery temperature.
Apart from battery failure notification, the Smart-UPS also conducts periodic battery self-test to ensure early detection of a battery that needs to be replaced. Packed with user-replaceable batteries, the equipment increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR). It comes with pure sine wave output on battery that simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Featuring an automatic self-test, the Smart-UPS automatically starts up the connected equipment upon the return of utility power and restarts loads after it is shutdown. With network manageability, the unit provides remote management over the network. It features audible alarms that actively inform you whether the unit is on battery, the battery is low, or if there is an overload condition. The equipment has an energy meter that displays actual kilowatt hours of usage.
Through LED status indicators, the Smart-UPS updates you on the unit and power status. In addition to serial connectivity for managing the UPS via a serial port, the unit has USB connectivity that enables you to manage the UPS via a USB port. Hot-swappable batteries ensure clean, uninterrupted power to protect equipment while batteries are being replaced. The UPS comes with resettable circuit breakers for a quick recovery from overloaded events.
The Smart-UPS X 2200 VA RM 2U LCD 230 V has a single switched outlet group that can be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. High on online efficiency, the UPS reduces utility costs and generates less heat. The SmartSlot customizes UPS capabilities with management cards. As the unit is cold-start capable, it offers temporary battery power when the utility power is out.
With adjustable voltage-transfer points, Smart-UPS widens the input voltage window or tightens the output voltage regulation for maximizing useful battery life. You can also use this equipment for optimal performance with adjustable voltage sensitivity in some specific power environments or generator applications. The unit has been tested and approved to work safely with the connected service provider equipment and within the specified environment. It also delivers battery powered AC through its outlets. - Network Power Protection
- Offers efficient network power protection to your servers, point-of-sale, routers, switches, hubs, and other network devices
- AVR
- Automatic Voltage Regulation - provides higher application availability by correcting low and high voltage conditions without utilizing the battery
- LCD Interface
- Intuitive LCD interface - offers precise data in multiple languages along with the ability to configure the equipment locally with easy to use navigation keys
- Battery Management
- Intelligent battery management - maximizes battery performance, life, and reliability via precision charging
- Protected Power
- Power condition - offers protection for connected loads from surges, spikes, lightning, and other power disturbances
- Alarmed
- Audible alarms to send notifications of changing utility power and UPS conditions
- Circuit Breakers Reset
- Resettable circuit breakers for a quick recovery from overloaded events
- SmartSlot
- SmartSlot - customizes UPS capabilities with management cards
- Cold Start
- Cold-start capability - offers temporary battery power when the utility power is out
- Single Switched Outlet Group
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
UPC: 731304284635 In the Box APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) Rack Mounting Hardware Rack Mounting Support Rails Smart Ups Signalling Rs-232 Cable USB Cable Documentation CD CD with Software Warranty 3-Year Repair-Replace/2-Year for Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 2200VA LCD Rack Mount 2U in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMT2200RMI2U Specs | | | Total Outlets | 8 x IEC-320 C13
1 x IEC-320 C19 | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Topology | Line Interactive | | | | Surge Energy Rating | 375 Joules | | Maximum Wattage | 1980 W | | Input Voltage Range | 220 to 240 VAC | | Input Voltage Adjustable Range | 151 to 299 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Output Voltage Range | 220 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Load Capacity | 2200 VA | | Thermal Dissipation | 215 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | RBC43 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6.6' / 2 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 18.9 x 3.4 x 26.9" / 480.0 x 86.0 x 683.0 mm | | Weight | 93.1 lb / 42.3 kg | | | | Package Weight | 113.0 lb | | Box Dimensions (LxWxH) | 38.5 x 23.5 x 10.0" |
