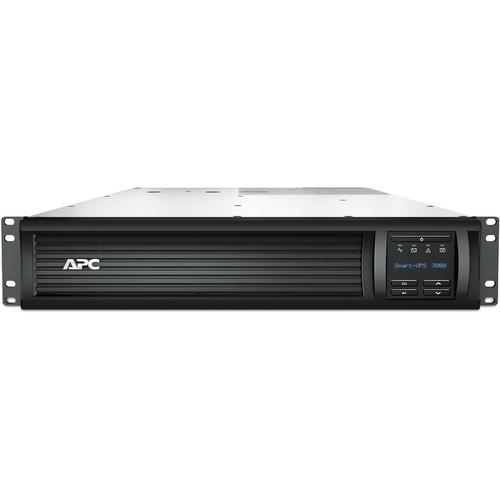

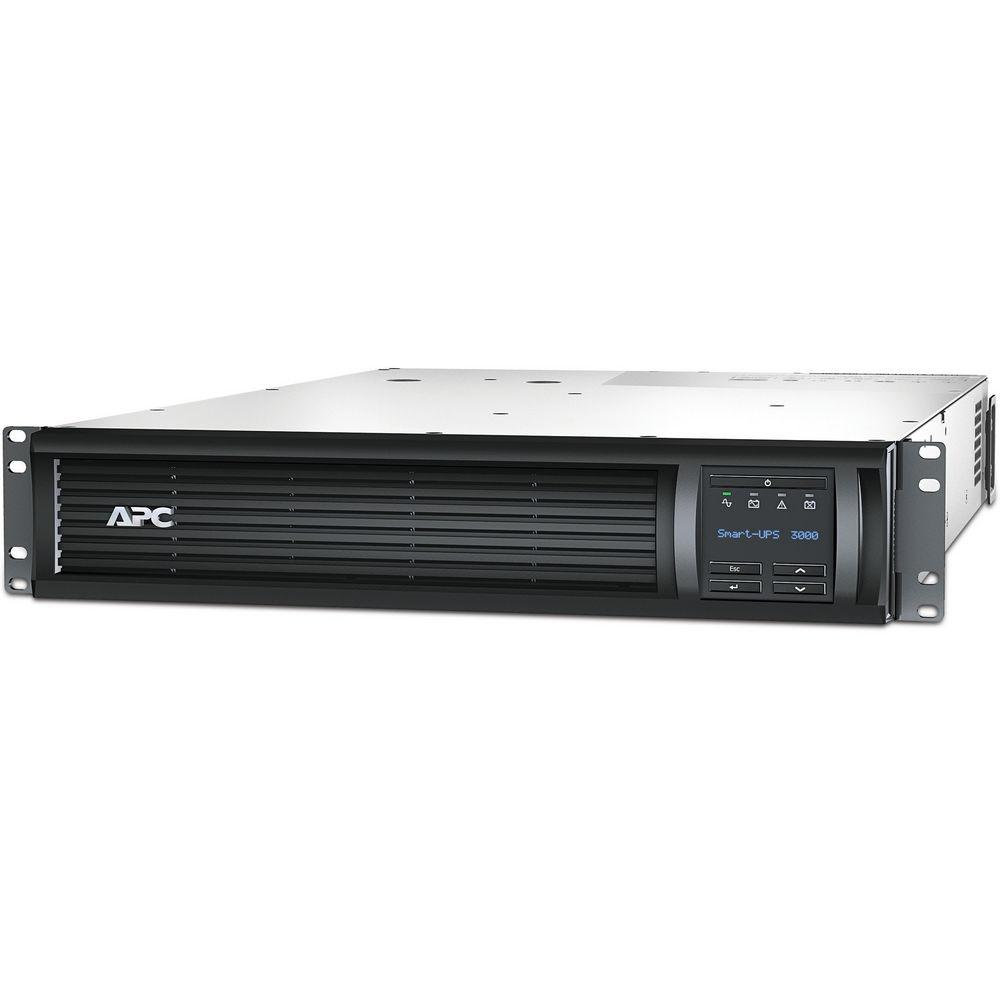

Product description The APC Smart-UPS 3000 VA RM 2U LCD 230 V offers efficient network power protection to your servers, point-of-sale, routers, switches, hubs, and other network devices. With Automatic Voltage Regulation, the unit offers higher application availability by correcting low and high voltage conditions without utilizing the battery. Along with the ability to configure the equipment locally with easy-to-use navigation keys, the Smart-UPS 3000 VA RM 2U LCD 230 V allows you to view precise data in multiple languages. Once the external battery packs are detected, the Smart-UPS automatically adjusts runtime. For enhanced maintenance, it keeps you updated with the month and year when the battery needs to be replaced. It also has an intuitive LCD interface. With an intelligent battery management, the Smart-UPS 3000 VA RM 2U LCD 230 V maximizes battery performance, life, and reliability via precision charging. It has a wide input voltage range, designed to save battery life in harsh electrical environments. The unit is equiped with a predictive replace battery date ability that provides the month and year when battery replacement is recommended to aide in long term maintenance planning.The unit features a Green operating mode that bypasses unused electrical components in good power conditions to attain high operating efficiency without compromising with any protection. It houses a power condition that offers protection for connected loads from surges, spikes, lightning, and other power disturbances. The equipment boasts of temperature-compensated battery charging capability to enhance battery life by controlling the charge voltage as per battery temperature.
Apart from battery failure notification, the Smart-UPS also conducts periodic battery self-test to ensure early detection of a battery that needs to be replaced. Packed with user-replaceable batteries, the equipment increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR). It comes with pure sine wave output on battery that simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
With sequenced shutdown and restart capability, the Smart-UPS enables you to configure outlet groups to shut down and turn on in a pre-determined order. Featuring an automatic self-test, the equipment automatically starts up the connected equipment upon the return of utility power and restarts loads after it is shutdown. With network manageability, the UPS provides remote management over the network. It features audible alarms that actively inform you whether the unit is on battery, the battery is low, or if there is an overload condition. The equipment has an energy meter that displays actual kilowatt hours of usage.
Through LED indicators, the Smart-UPS updates you on the unit and power status. In addition to serial connectivity for managing the UPS via a serial port, the unit has USB connectivity that enables you to manage the UPS via a USB port. With InfraStruXure Central compatibility, the unit offers centralized management. Hot-swappable batteries ensure clean, uninterrupted power to protect equipment while batteries are being replaced. The UPS comes with resettable circuit breakers for a quick recovery from overloaded events.
The Smart-UPS X 3000 VA RM 2U LCD 230 V has a single switched outlet group that can be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. High on online efficiency, the UPS reduces utility costs and generates less heat. As the unit is cold-start capable, it offers temporary battery power when the utility power is out.
With adjustable voltage-transfer points, Smart-UPS widens the input voltage window or tightens the output voltage regulation for maximizing useful battery life. You can also use this equipment for optimal performance with adjustable voltage sensitivity in some specific power environments or generator applications. The unit has been tested and approved to work safely with the connected service provider equipment and within the specified environment. - Offers efficient network power protection to your servers, point-of-sale, routers, switches, hubs, and other network devices
- Automatic Voltage Regulation - provides higher application availability by correcting low and high voltage conditions without utilizing the battery
- Intuitive LCD interface - offers precise data in multiple languages along with the ability to configure the equipment locally with easy to use navigation keys
- Intelligent battery management - maximizes battery performance, life, and reliability via precision charging
- Wide input voltage range - saves battery life in harsh electrical environments
- Predictive replace battery date - provides the month and year when battery replacement is recommended to aide in long term maintenance planning
- Green mode - bypasses unused electrical components in good power conditions to attain high operating efficiency without compromising with any protection
- Power condition - offers protection for connected loads from surges, spikes, lightning, and other power disturbances
- Temperature-compensated battery charging improves battery life by controlling the charge voltage as per battery temperature
- Battery failure notification
- Periodic battery self-test - ensures early detection of a battery that needs to be replaced
- User-replaceable batteries - increase availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Pure sine wave output - simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
- Automatic restart of loads after UPS shutdown - automatically starts up the connected equipment upon the return of utility power
- Network manageable - provides remote management of the UPS over the network
- Audible alarms to send notifications of changing utility power and UPS conditions
- Energy meter - displays actual kilowatt hours of usage
- LED indicators - update you on the unit and power status
- Serial connectivity for managing the UPS via a serial port
- USB connectivity to manage the UPS via a USB port
- InfraStruXure Central compatibility for centralized management
- Hot-swappable batteries ensure clean, uninterrupted power for safeguarding equipment
- Resettable circuit breakers for a quick recovery from overloaded events
- Single switched outlet group - can be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
- High online efficiency - reduces utility costs and generates less heat
- Cold-start capability - offers temporary battery power when the utility power is out
- Adjustable voltage-transfer points - widen the input voltage window or tighten the output voltage regulation for maximizing useful battery life
- Adjustable voltage sensitivity - for optimal performance in some specific power environments or generator applications
- Tested and approved to work safely with the connected service provider equipment and within the specified environment
UPC: 731304284642 In the Box APC Smart-UPS 3000 VA RM 2U LCD 230 V Rack Mounting Hardware Rack Mounting Support Rails Smart Ups Signalling Rs-232 Cable USB Cable Documentation CD CD with Software Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 3000 VA RM 2U LCD 230 V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

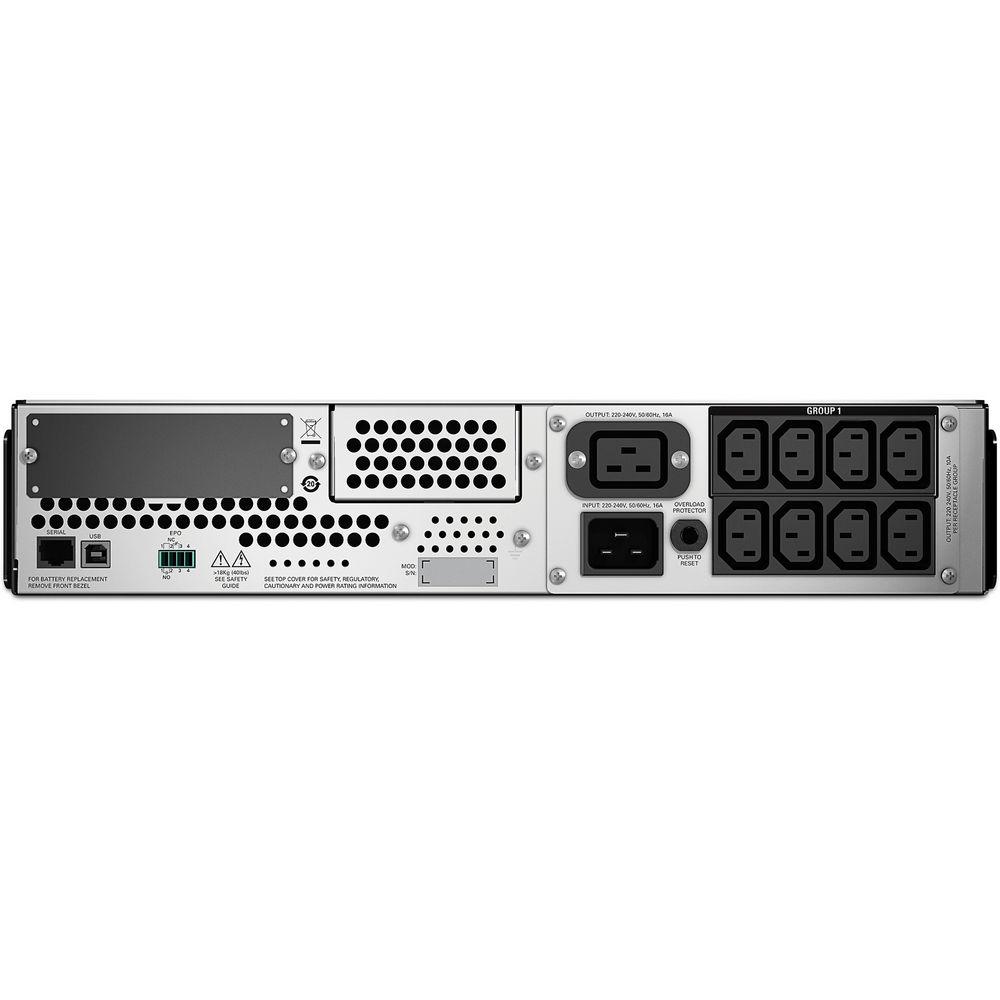

Technical parametersAPC SMT3000RMI2U Specs | | | Total Outlets | 8 x IEC-320 C13
1 x IEC-320 C19 | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | | | Surge Energy Rating | 320 Joules | | Maximum Wattage | 2700 W | | Input Voltage Range | 220 to 240 VAC | | Input Voltage Adjustable Range | 151 to 299 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Output Voltage Range | 220 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Load Capacity | 3000 VA | | Thermal Dissipation | 348 BTU/Hour | | Maximum Efficiency | 98% | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | RBC43 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6.6' / 2 m | | Dimensions (W x H x D) | 18.9 x 3.4 x 26.9" / 480.0 x 86.0 x 683.0 mm | | Weight | 97.4 lb / 44.3 kg | | | | Package Weight | 115.8 lb | | Box Dimensions (LxWxH) | 38.1 x 23.1 x 10.2" |
