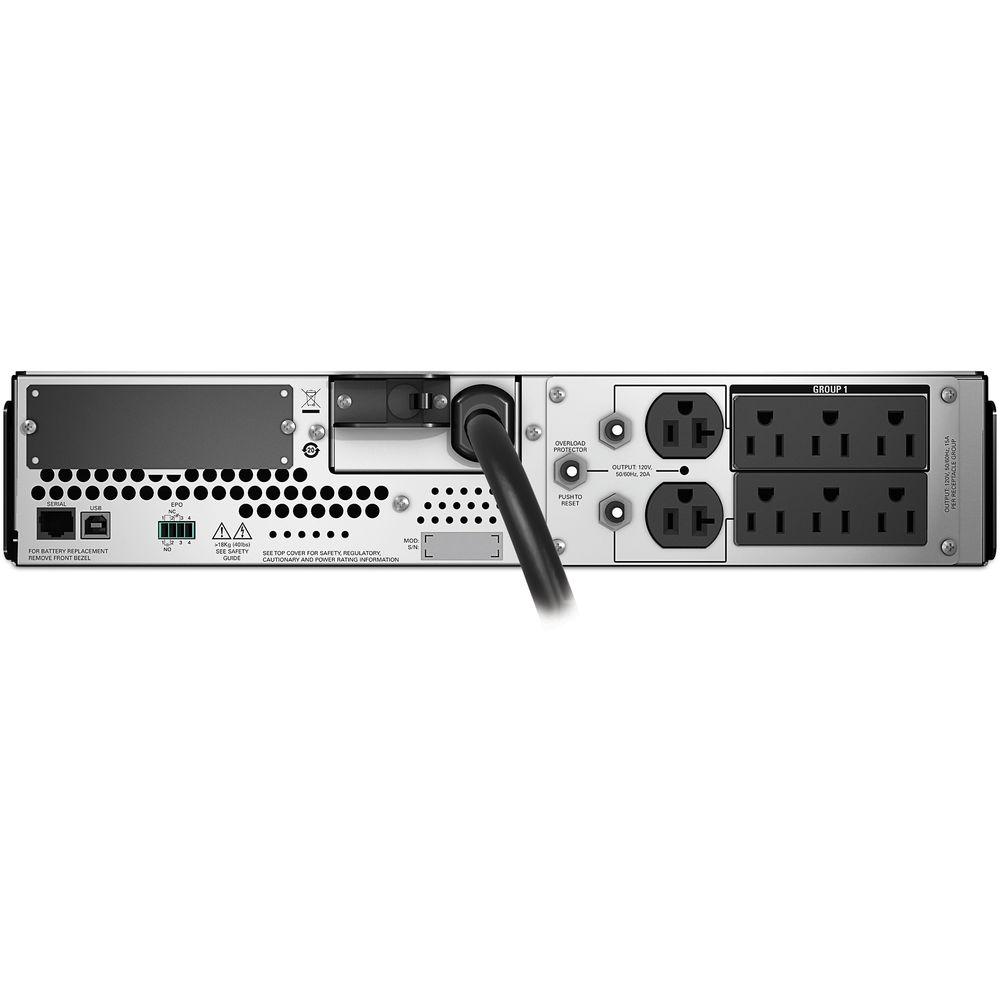

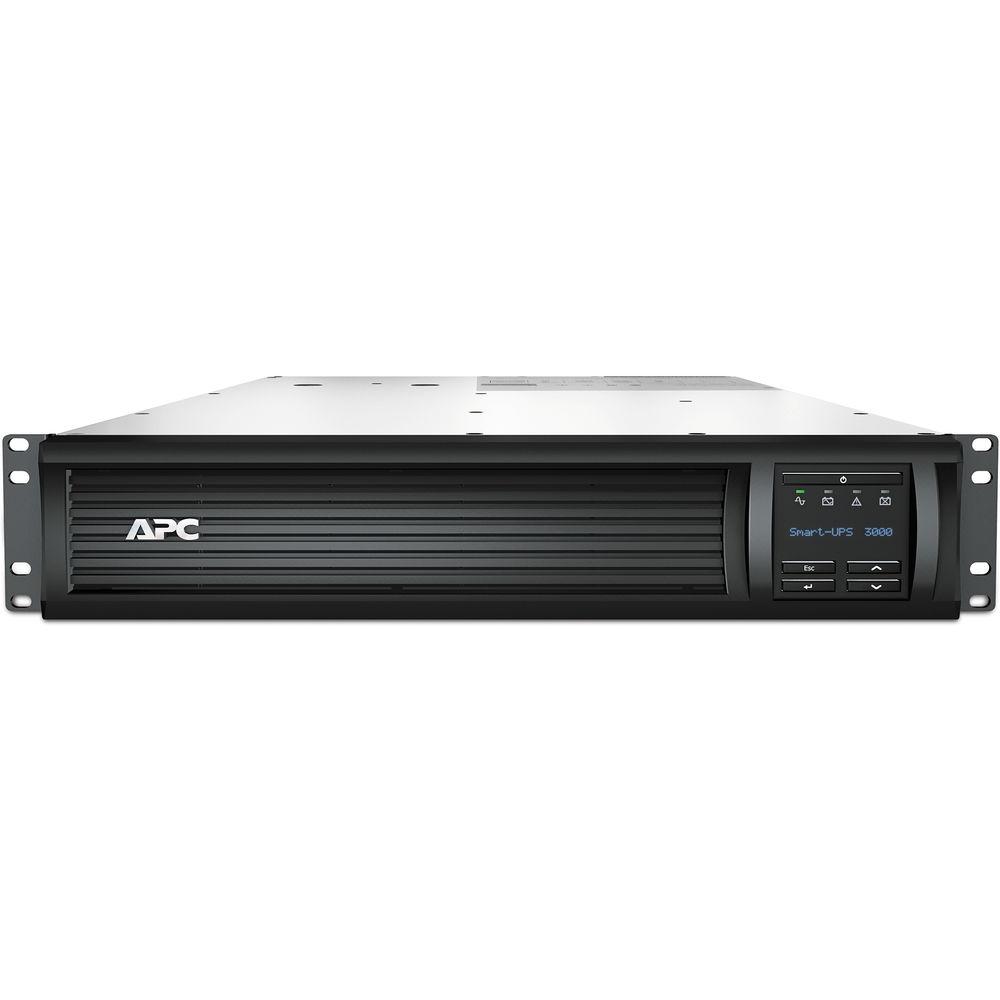

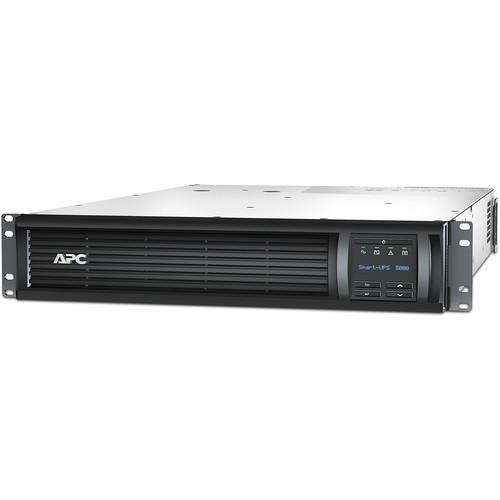

User Manual for APC Smart-UPS 3000VA LCD 2U Rackmount with 12' Cord Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 3000VA LCD 2U Rackmount
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS 3000VA LCD 2U Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The black Smart-UPS 3000VA LCD 2U Rackmount with 12' Cord from APC provides power to your important computer components in the event of an electrical outage. With sine wave output it eliminates humming and heat generated, when powering tube lights and fans. The UPS's Boost and Trim Automatic Voltage Regulation (AVR) feature eliminates voltage fluctuations preventing AV signal degradation. Its LED indicators provide easy to read status of the unit and utility power conditions. With a predictive replace battery date, this UPS provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Its USB connectivity provides management of the UPS via a USB port. - StruxureWare Central Compatible
- Enables centralized management via StruxureWare central
- Predictive Failure Notification
- Provides early-warning fault analysis to ensure proactive component replacement
- Sine Wave Output
- Eliminates humming and heat generated when powering tube lights and fans
- LED Indicators
- Provide easy to read status of the unit and utility power conditions
- Boost and Trim Automatic Voltage Regulation (AVR)
- Eliminates voltage fluctuations as a source of AV signal degradation and component power supply stress
- Green Mode
- This operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
- Single Switched Outlet Group
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
- Pure Sine Wave Output on Battery
- Simulates utility power to provide the high degree of compatibility for active PFC (Power Factor Corrected) servers and sensitive electronics
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
- Sequenced Network Shutdown and Reboot
- Customize network shutdown and reboot sequence of connected servers and UPSs
- Outlet Group Control
- Turn on/off, reboot, or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups)
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Network Manageable
- Provides remote power management of the UPS over the network
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
- Serial Connectivity
- Provides management of the UPS via a serial port
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
- USB Connectivity
- Provides management of the UPS via a USB port
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances
- SmartSlot
- Customize UPS capabilities with management cards
- Easy to Install
- Innovative design allows fast and easy installation
UPC: 731304294092 In the Box APC Smart-UPS 3000VA LCD 2U Rackmount with 12' Cord (Black) Software CD Documentation CD Rack Mounting Hardware Rack Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Limited 3-Year Repair or Replace (Excluding Battery) Limited 2-Year Warranty for Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 3000VA LCD 2U Rackmount with 12' Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMT3000R2X145 Specs | Total Outlets | 6 x NEMA 5-15R 2 x NEMA 5-20R | Plug Type | NEMA L5-30P | SmartSlot Interface | 1 | Communications | USB, Serial | | Surge Energy Rating | 459 Joules | Maximum Wattage | 2700 W | Nominal Input Voltage | 120 VAC | Input Voltage Adjustable Range | 75 to 154 VAC | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | Nominal Output Voltage | 120 VAC | Load Capacity | 3000 VA | Thermal Dissipation | 348 BTU/Hour | Maximum Efficiency | 97.6% | Waveform | Sine Wave | | Cells | 1 | Chemistry | Lead-Acid | Charging Time | 3 Hours | Replacement Battery | RBC43 | | Operating Temperature | 32 to 104°F / 0 to 40°C | Operating Humidity | 0 to 95% | Storage Temperature | 5 to 113°F / -15 to 45°C | Storage Humidity | 0 to 95% | Operating Altitude | 10,000' / 3000 m | Storage Altitude | 50,000' / 15,000 m | Noise Level | 55 dBA | Certifications | REACH, RoHS, as per Manufacturer | | Cable Length | 12' / 3.6 m | Rack Form Factor | 2 RU | Dimensions (W x H x D) | 18.9 x 3.4 x 26.9" / 48.0 x 8.6 x 68.3 cm | Weight | 97.4 lb / 44.3 kg | | Package Weight | 118.5 lb | Box Dimensions (LxWxH) | 38.0 x 24.0 x 9.0" |
