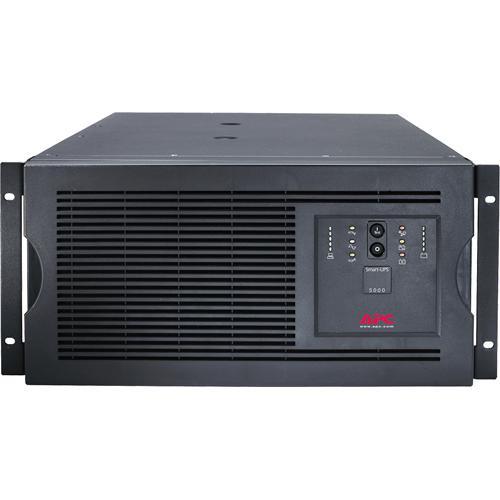

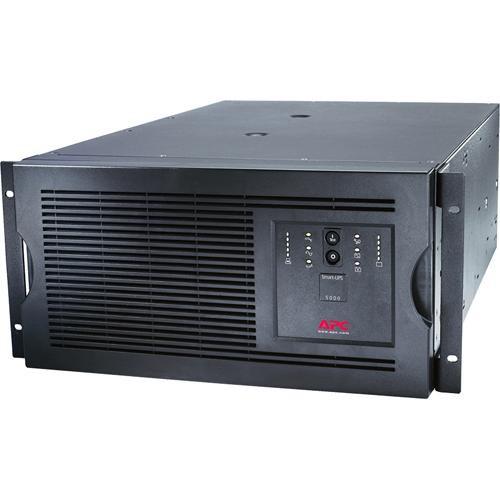

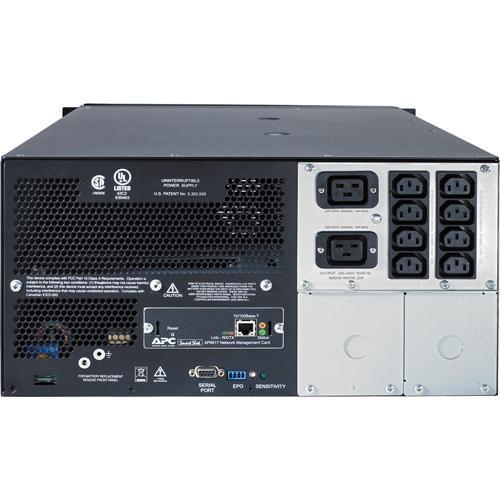

User Manual for APC Smart-UPS 5000VA 230V Rackmount Tower Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 5000VA 230V Rackmount Tower
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS 5000VA 230V Rackmount Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart-UPS 5000VA 230V Rackmount/Tower from APC provides professional power protection and battery backup for computer systems. Safe system shutdown and advanced power management capabilities keep systems and data safe. The UPS can communicate with a computer via serial for automatic shutdown in the event of a power failure. It features 10 outlets, all of which provide battery backup. Its battery provides 26.7 minutes of run time at half-load capacity. - Battery delivers 26.7 minutes of runtime at half-load and 9.4 minutes at full-load
- SmartSlot expansion capability
- Audible alarm lets you know when there is a power problem
- Communicates with a computer via a serial port
- Rackmount design for professional installation
UPC: 731304255321 In the Box APC Smart-UPS 5000VA 230V Rackmount/Tower Software CD-ROM Rack Mounting Hardware Rack Mounting Support Rails RS-232 Cable Web/SNMP Management Card User Manual Limited 2-Year Warranty Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 5000VA 230V Rackmount Tower in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 5000 Specs | | | Total Outlets | 8 x IEC-320 C13
2 x IEC-320 C19 | | Data Line Protection | RJ45 | | Communications | Serial | | | | Surge Energy Rating | 480 Joules | | Maximum Wattage | 4000 W | | Nominal Input Voltage | 230 VAC | | Input Voltage Adjustable Range | 151 to 302 VAC | | Input Frequency | 50/60 Hz ± 5 Hz (Auto Sensing) | | Output Voltage Range | 220 to 240 VAC | | Voltage Distortion | <5% | | Load Capacity | 5000 VA | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Full-Load Runtime | 9.4 Minutes | | Half-Load Runtime | 26.7 Minutes | | Charging Time | 3 Hours | | Replacement Battery | RBC55 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 30,000' / 9000 m | | Storage Altitude | 50,000' / 15,000 m | | | | Dimensions (W x H x D) | 19.0 x 8.8 x 26.0" / 48.3 x 22.2 x 66.0 cm | | Weight | 215.0 lb / 97.7 kg | | | | Package Weight | 235.0 lb | | Box Dimensions (LxWxH) | 40.0 x 24.0 x 20.0" |
