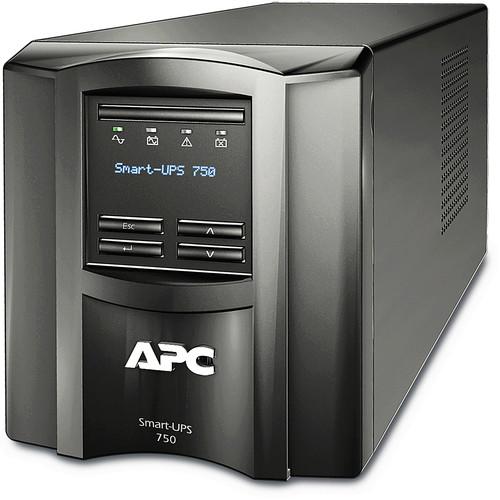

User Manual for APC Smart-UPS 750VA LCD 120V Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 750VA LCD 120V
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS 750VA LCD 120V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart-UPS 750VA LCD 120V from APC provides battery backup power so you can work through medium length power outages. It safeguards your equipment against damaging surges and spikes that travel along utility and data lines. The Smart-UPS also features automatic voltage regulation (AVR), which instantly adjusts high and low voltages to safe levels so you can work indefinitely during brownouts and over voltages. - Key Features
- Intuitive LCD Interface: Provides clear and accurate information in multiple languages by configuring the UPS locally with easy-to-use navigation keys.
Predictive Replace Battery Date: Dynamically provides the month and year when battery replacement is recommended to aide in long-term maintenance planning.
Green Mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve remarkable operating efficiency without sacrificing protection.
Energy Meter: Provides actual kilowatt hours of usage for energy conscious users.
Pure Sine Wave Output on Battery: Simulates utility power to provide high compatibility for active PFC (power factor corrected) servers and sensitive electronics.
StruxureWare Central Compatible: Enables centralized management via StruxureWare Central.
High Online Efficiency: Reduces utility cost, generates less heat.
SmartSlot: Customize UPS capabilities with management cards.
Cold-Start Capable: Provides temporary battery power when the utility power is out.
Temperature-Compensated Battery Charging: Prolongs battery life by regulating the charge voltage according to battery temperature. - Availability
- Boost and Trim Automatic Voltage Regulation (AVR): Provides higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Intelligent Battery Management: Maximizes battery performance, life and reliability through intelligent, precision charging.
Power Conditioning: Protects connected loads from surges, spikes, lightning and other power disturbances.
Temperature-Compensated Battery Charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic Restart of Loads After UPS Shutdown: Automatically starts up the connected equipment upon the return of utility power.
Automatic Self-Test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected Battery Notification: Warns when a battery is not available to provide backup power. - Manageability
- Network Manageable: Provides remote power management of the UPS over the network.
Audible Alarms: Actively lets you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED Status Indicators: Quickly displays unit and power status with visual indicators.
Serial Connectivity: Provides management of the UPS via a serial port.
USB connectivity: Provides management of the UPS via a USB port (not available on all models).
Disconnected Battery Notification: Warns when a battery is not available to provide backup power. - Serviceability
- User-Replaceable Batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, thus reducing Mean Time to Repair (MTTR).
Hot-Swappable Batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Predictive Failure Notification: Provides early-warning fault analysis ensuring proactive component replacement.
Resettable Circuit Breakers: Enables a quick recovery from overload events.
Battery Failure Notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance. - Adaptability
- Adjustable Voltage Transfer Points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable Voltage Sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. - Safety
- Safety Agency Approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
UPC: 731304305644 In the Box APC Smart-UPS 750VA LCD 120V Smart-UPS Signaling RS-232 Cable USB Cable CD with Software Documentation CD Limited 3-Year Warranty 2-Year Battery Repair or Replacement Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 750VA LCD 120V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 750 Specs | | | Total Outlets | 6 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | No | | Noise Filtering | 0.3% | | Topology | Line Interactive | | | | Surge Energy Rating | 540 Joules | | Maximum Wattage | 500 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 750 VA | | Thermal Dissipation | 90 BTU/Hour | | Maximum Efficiency | 97.9% | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | RBC48 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 40 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 5.4 x 6.3 x 14.2" / 138.0 x 161.0 x 363.0 mm | | Weight | 29.0 lb / 13.2 kg | | | | Package Weight | 31.0 lb | | Box Dimensions (LxWxH) | 19.5 x 12.0 x 11.0" |
