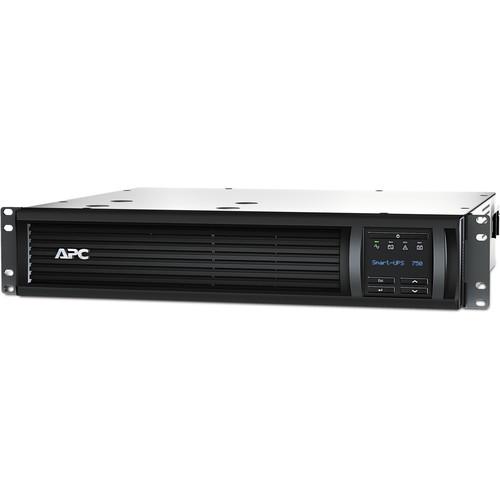

User Manual for APC Smart-UPS 750VA LCD Rackmount 2U Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 750VA LCD Rackmount 2U
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS 750VA LCD Rackmount 2U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

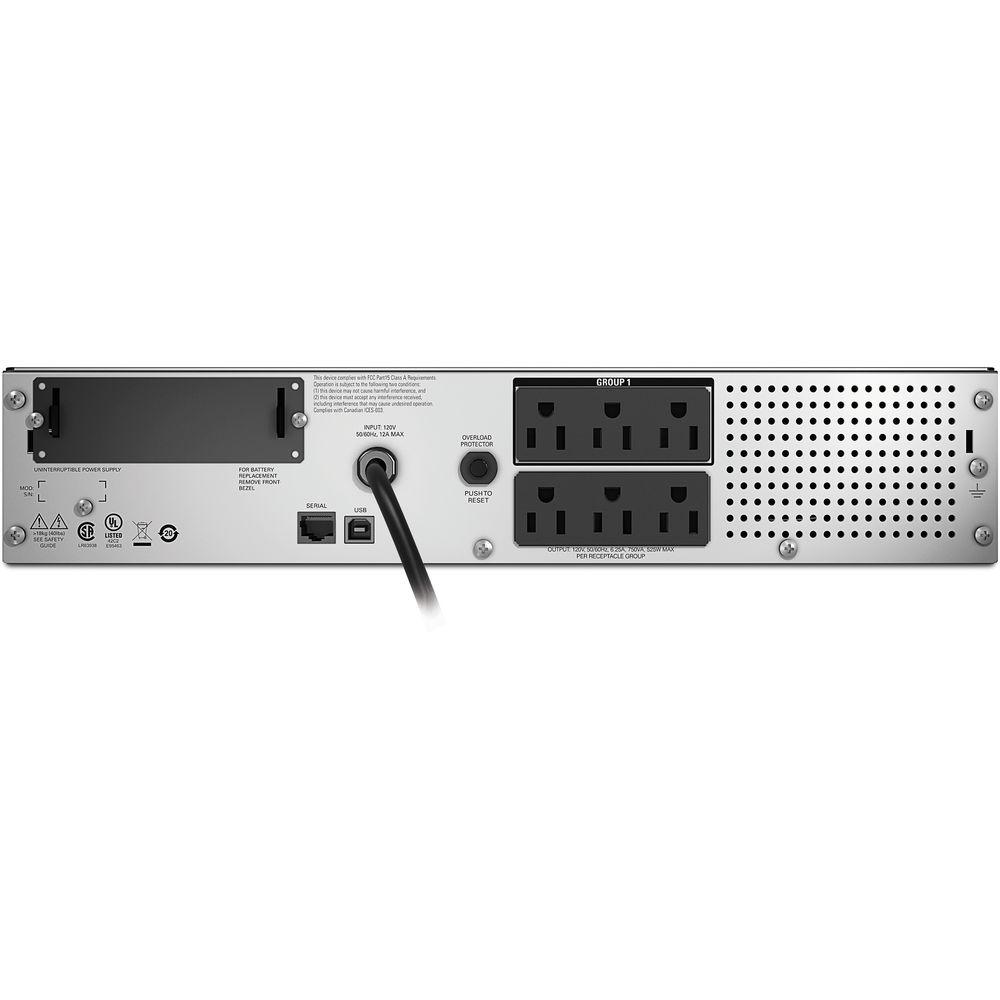

Product description The APC Smart-UPS 750VA LCD Rackmount 2U (120V) features six NEMA 5-15R power outlets that provide temporary battery power for up to six systems. The APC Smart-UPS also protects your equipment from surges, spikes, lightning, and other power disturbances. The LCD interface displays the actual kilowatt-hours the UPS is using and allows you to configure it locally with easy-to-use navigation keys. The Smart-UPS lets you separately control the power to your equipment, which enables you to reboot hung devices, sequenced on/off, and non-critical load shedding. By using the battery, the UPS provides an active power factor correction that outputs pure sine waves to protect sensitive equipment. The UPS will also automatically power up your equipment after the return of utility power.
The APC Smart-UPS 750VA uses an intelligent battery management system to precisely charge the battery based upon its current temperature that maximizes the battery's performance and life. The battery has a predictive replace date that lets you know the month and year when the battery needs to be replaced. Additionally, the battery is periodically self-tested; it notifies you with a distinctive low audible alarm if it needs to be replaced. With the hot-swap feature, you can perform upgrades and replacements of the battery and still provide clean uninterrupted protected power to your equipment. The UPS can be customized with management cards via SmartSlot to provide better flexibility. At-a-glance, the UPS has LED indicators that notify you of the status and utility power conditions. Furthermore, it has a serial and USB port to provide management of the UPS. Included with the UPS are CDs, rack-mounting rails, RS-232 and USB cables. - Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing any protection.
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users.
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

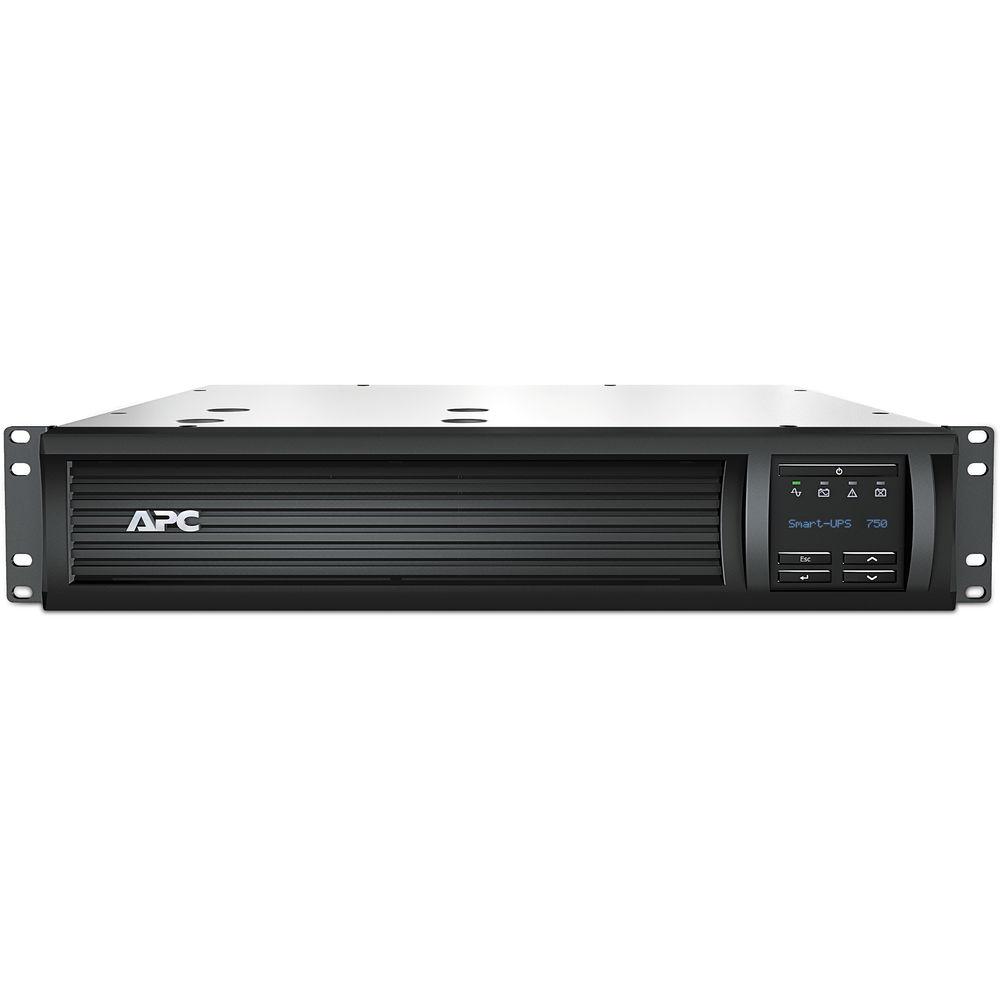

- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy-to-use navigation keys.
- Single Switched Outlet Groups
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off, and non-critical load shedding.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- SmartSlot
- Customize UPS capabilities with management cards.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- LED Indicators
- Provide easy-to-read status of the unit and utility power conditions.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- USB Connectivity
- Provides management of the UPS via a USB port.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries thereby reducing Mean Time to Repair (MTTR).
UPC: 731304294122 In the Box APC Smart-UPS 750VA LCD Rackmount 2U (120V) CD with Software Documentation CD Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 750VA LCD Rackmount 2U in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMT750R2X122 Specs | | | Total Outlets | 6 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | No | | Noise Filtering | 0.3% | | Topology | Line Interactive | | | | Surge Energy Rating | 459 Joules | | Maximum Wattage | 500 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 750 VA | | Thermal Dissipation | 46 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | APCRBC123
APCRBC123J | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 42 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 3.5 x 17.0 x 16.0" / 89.0 x 432.0 x 406.0 mm | | Weight | 38.1 lb / 17.3 kg | | | | Package Weight | 49.3 lb | | Box Dimensions (LxWxH) | 22.6 x 21.1 x 9.4" |
