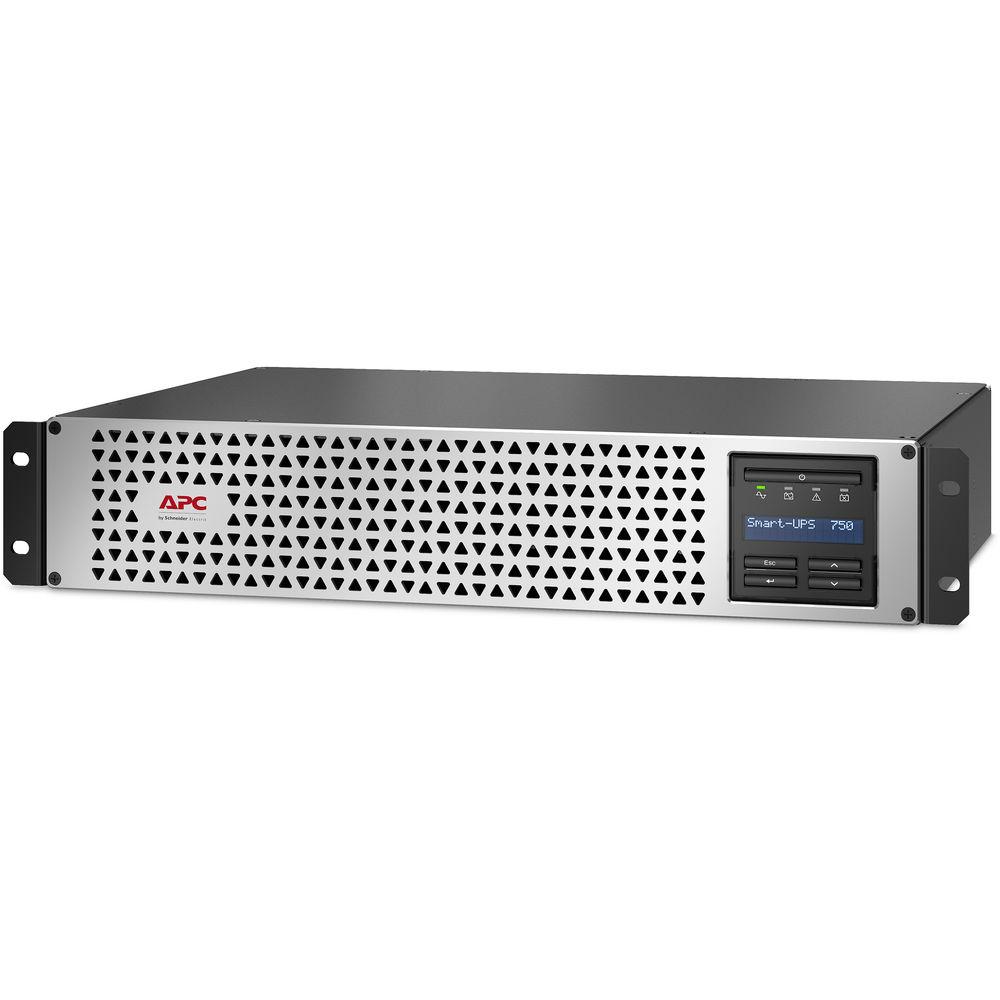

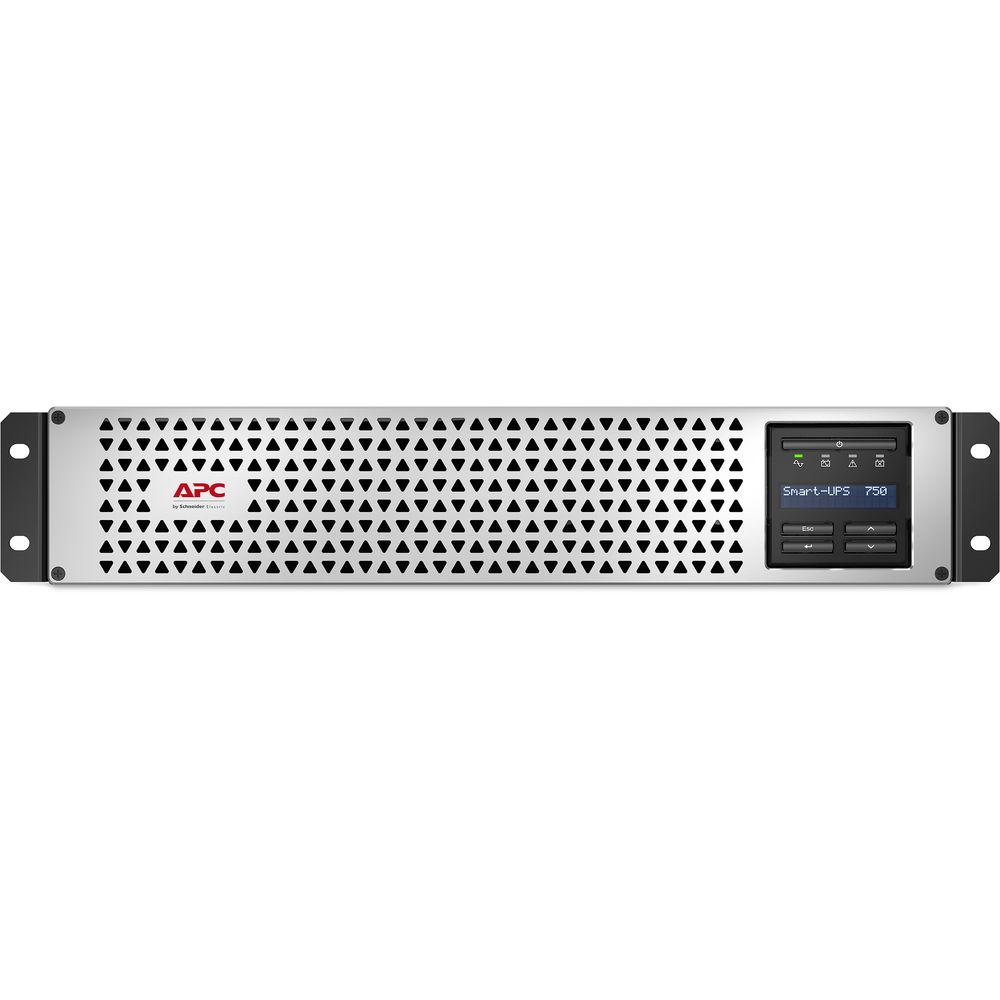

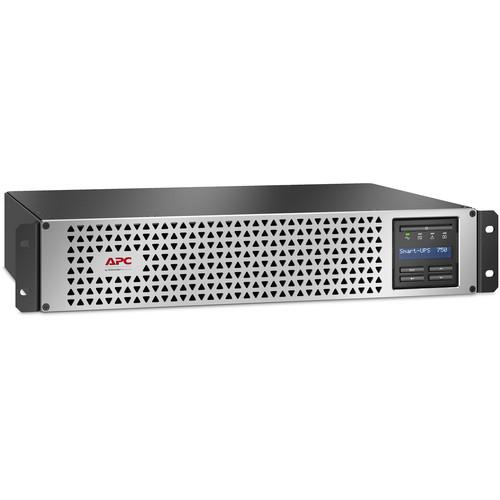

User Manual for APC Smart-UPS 750VA Li-Ion Short-Depth Rackmount with SmartConnect Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 750VA Li-Ion Short-Depth Rackmount
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS 750VA Li-Ion Short-Depth Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Keep servers, routers, switches, hubs, and other business-critical applications running during a power outage with the Smart-UPS 750VA Li-Ion Short-Depth Rackmount with SmartConnect from APC. Capable of up to 750VA output, the Smart-UPS Li-Ion UPS comes equipped with six battery-protected NEMA 5-15R outlets and has an estimated 2-hour recharge time, while its SmartConnect interface allows for remote monitoring, automatic notifications, and firmware updates. The UPS features a compact design ideal for short-depth rack applications. Audible alarms are designed to warn you if the unit is on battery power of if the battery is low. Hot-swappable batteries help to ensure uninterrupted power during battery replacement. The UPS can be managed via its serial, USB, or SmartSlot interfaces. In addition to its five-year warranty, the unit comes with a lifetime $150,000 equipment protection policy. - Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Energy Meter
- Provides actual kilowatt hours of usage for energy-conscious users.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to help ensure high operating efficiency without sacrificing protection.
- High Online Efficiency
- Helps to reduce utility costs while generating less heat.
- Lithium-Ion Battery
- Designed to provide twice the service life of a typical lead acid battery. It is small, light, and environmentally friendly.
- Predictive Battery Replacement Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long-term maintenance planning.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide a high degree of compatibility for active PFC (power-factor corrected) servers and sensitive electronics.
- Short-Depth Rack Compatibility
- Compact design fits comfortably in short-depth rack applications.
- Single Switched Outlet Group
- May be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off, and non-critical load shedding.
- SmartConnect
- Easy-to-use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- SmartSlot
- Customize UPS capabilities with management cards.
- Temperature-Compensated Battery Charging
- Helps to prolong battery life by regulating the charge voltage according to battery temperature.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Intelligent Battery Management
- Designed to maximize battery performance, life, and reliability through intelligent, precision charging.
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Automatic Self-Test
- Periodic battery self-test helps to ensure early detection of a battery that needs to be replaced.
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Remote Accessibility
- Network manageable via serial, USB, or optional ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown, and energy management capabilities.
- LCD Interface
- Provides clear information with the ability to configure the UPS locally with easy-to-use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds, and notifications.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low, or if there is an overload condition.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Resettable Circuit Breakers
- Helps to ensure a quick recovery from overload events.
- Hot-Swappable Batteries
- Helps to ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- User-Replaceable Batteries
- Helps to boost availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable Voltage-Transfer Points
- Helps to maximize useful battery life by widening the input voltage window or tightening the output voltage regulation.
UPC: 731304341994 In the Box APC Smart-UPS 750VA Li-Ion Short-Depth Rackmount with SmartConnect (120V) Rack Mounting Support Rails Smart UPS Signalling RS-232 Cable USB Cable $150,000 Lifetime Equipment Protection Policy Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 750VA Li-Ion Short-Depth Rackmount with SmartConnect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Li-Ion Specs | | | Total Outlets | 6 x NEMA 5-15R | | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 6 to 10 ms | | | | Surge Energy Rating | 680 Joules | | Maximum Wattage | 600 W at 120 VAC | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 82 to 144 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 750 VA | | Thermal Dissipation | 70 BTU/Hour | | Waveform | Sine Wave | | | | Chemistry | Lithium-Ion | | Charging Time | 2 Hours | | User Replaceable | Yes | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -40 to 95°F / -40 to 35°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3048 m | | Storage Altitude | 25,000' / 7620 m | | Noise Level | 41 dBA | | Certifications | CSA, FCC, UL, as per Manufacturer | | | | Cable Length | 8' / 2.44 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 3.4 x 17.2 x 12.5" / 8.6 x 43.8 x 31.8 cm | | Weight | 34 lb / 15.4 kg | | | | Package Weight | 42.7 lb | | Box Dimensions (LxWxH) | 23.0 x 18.25 x 8.5" |
