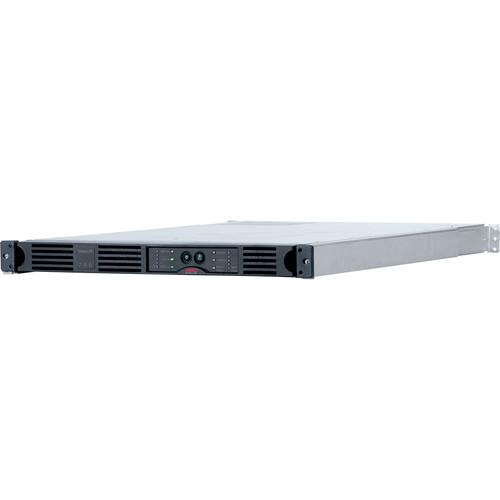

User Manual for APC Smart-UPS 750VA Rackmount 1U Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS 750VA Rackmount 1U
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS 750VA Rackmount 1U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart-UPS 750VA Rackmount 1U (120V) from APC provides network-grade power management and protection for up to 4 devices, with an impressive output of up to 750 VAC at 480 watts. With the included PowerChute management software for servers and workstations, remote or unattended system shutdown and advanced UPS management can be performed remotely via serial or USB port. The unit is in a standard 1U rackmount enclosure, allowing you to easily integrate it in your enterprise network. The UPS provides up to 7.1 minutes of battery backup time at full load and 23.6 minutes at half load. - USB Connectivity
- Provides management of the UPS via a USB port (not available on all models).
- Front-Access Servicing
- Simplifies installation and maintenance while minimizing space requirements.
- Boost and Trim
- Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Temperature-Compensated Battery Charging
- Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Load Restart
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Network Manageable
- Provides remote management of the UPS over the network.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- USB Connectivity
- Provides management of the UPS via a USB port (not available on all models).
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
UPC: 731304123903 In the Box APC Smart-UPS 750VA Rackmount 1U (120V) Rack Mounting Brackets Rack Mounting Support Rails Smart-UPS Signalling RS-232 Cable USB Cable Software CD User Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS 750VA Rackmount 1U in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SUA750RM1U Specs | | | Total Outlets | 4 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Noise Filtering | 0.3% | | Topology | Line Interactive | | | | Surge Energy Rating | 480 Joules | | Maximum Wattage | 480 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 750 VA | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 2 Hours | | Replacement Battery | RBC34 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Dimensions (W x H x D) | 17.0 x 1.7 x 26.0" / 43.2 x 4.4 x 66.0 cm | | Weight | 48.0 lb / 21.8 kg | | | | Package Weight | 57.4 lb | | Box Dimensions (LxWxH) | 32.0 x 24.0 x 9.0" |
