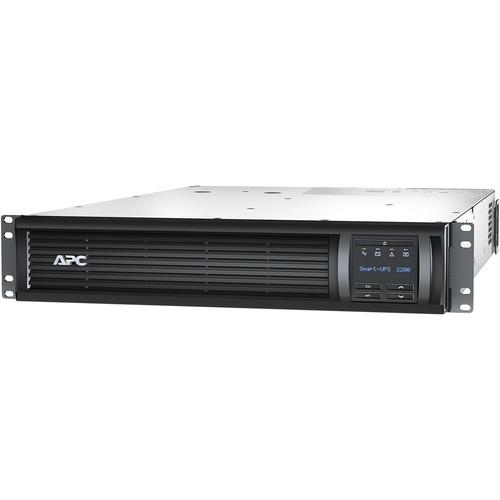

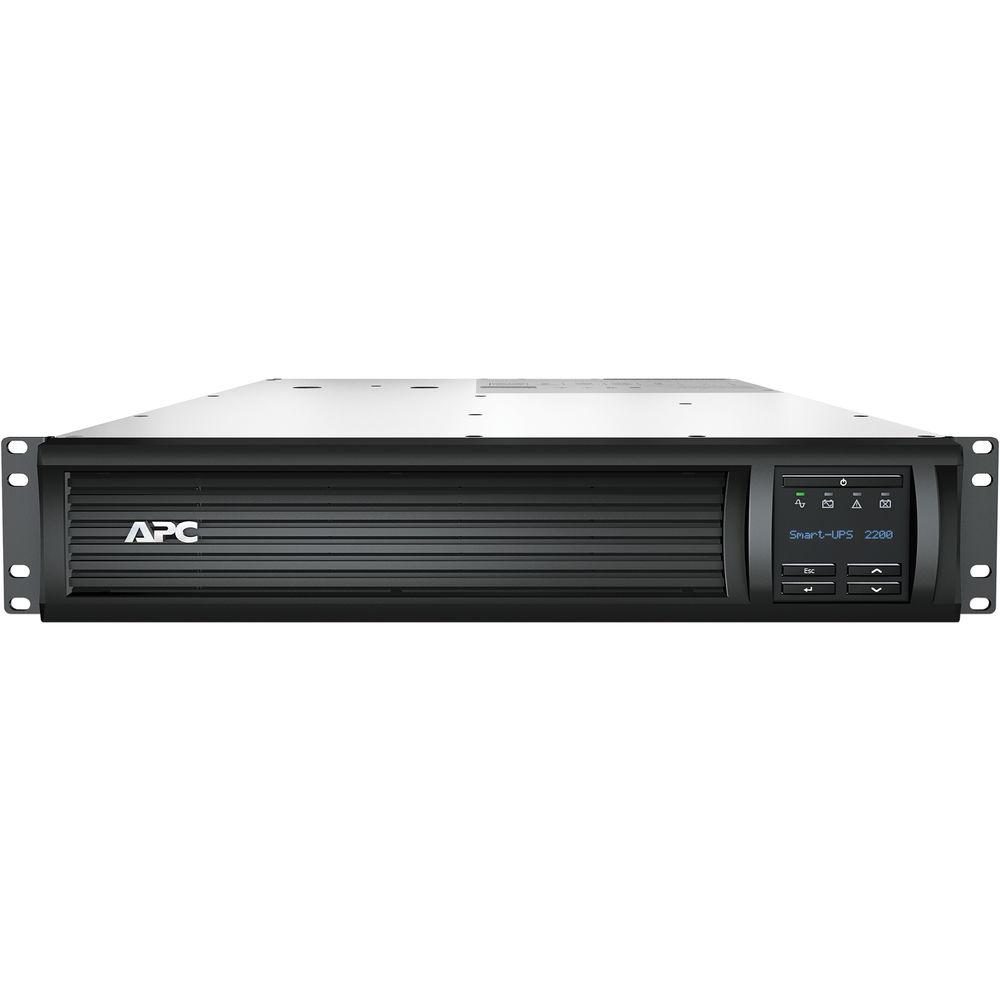

Product description Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the Smart-UPS Battery Backup with SmartConnect from APC delivers intelligent and efficient network power protection from entry level to scalable runtime. It can provide 370 minutes of use at 50W, 212 minutes of use at 100W, 110 minutes of use at 200W, 72 minutes of use at 300W, 53.4 minutes of use at 400W, 41.5 minutes of use at 500W, 33.6 minutes of use at 600W, 27.9 minutes of use at 700W, 23.7 minutes of use at 800W, 20.4 minutes of use at 900W, 17.7 minutes of use at 1000W, 13.8 minutes of use at 1200W, 11 minutes of use at 1400W, 9 minutes of use at 1600W, 7.4 minutes of use at 1800W, and 6.6 minutes of use at its full load of 1920W.
This Smart-UPS features an output of 1920W / 1920 VA, a NEMA 5-20P input connection, an input of 120V @ 50/60 Hz ±3 Hz, six NEMA 5-15R and two NEMA 5-20R battery backup outlets, a surge energy rating of 530 joules, line interactive topology, and a sine waveform. Included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems, and also included are rack-mounting support rails, an RS-232 cable, and a USB cable. Support is provided by a limited 3-year repair or replace warranty that excludes the battery, as well as a limited 2-year battery warranty and a limited lifetime $150,000 equipment protection policy.
APC SmartConnect makes the Smart-UPS more adaptable and easier to deploy, enabling you to view the status of your UPS through a secure web portal. Through this remote management interface, you'll receive automatic notifications, firmware updates, and advanced support. SMT2200RM2UC Features - Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve higher operating efficiency without sacrificing protection.
- High Online Efficiency
- Reduces utility costs and generates less heat.
- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with user-friendly navigation keys.
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long-term maintenance planning.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide improved compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single Switched Outlet Group
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off, and non-critical load shedding.
- SmartSlot
- Customize UPS capabilities with management cards.
Smart-UPS Features & Benefits Availability - Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
Safety - Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability - Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- USB Connectivity
- Provides management of the UPS via a USB port.
- Network Manageable
- Provides remote power management of the UPS over the network.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- Audible Alarms
- Actively lets you know if the unit is on battery, if the battery is low, or if there is an overload condition.
Adaptability - Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for improved performance in specific power environments or generator applications.
Serviceability - Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing the Mean Time to Repair (MTTR).
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
UPC: 731304331056 In the Box APC Smart-UPS Battery Backup & Surge Protector with SmartConnect Powerchute Business Edition Software Rack-Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Limited Lifetime $150,000 Equipment Protection Policy Limited 2-Year Warranty (Battery Only) Limited 3-Year Warranty More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS Battery Backup & Surge Protector with SmartConnect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Smart-UPS 2200VA Specs | | | Total Outlets | 6 x NEMA 5-15R

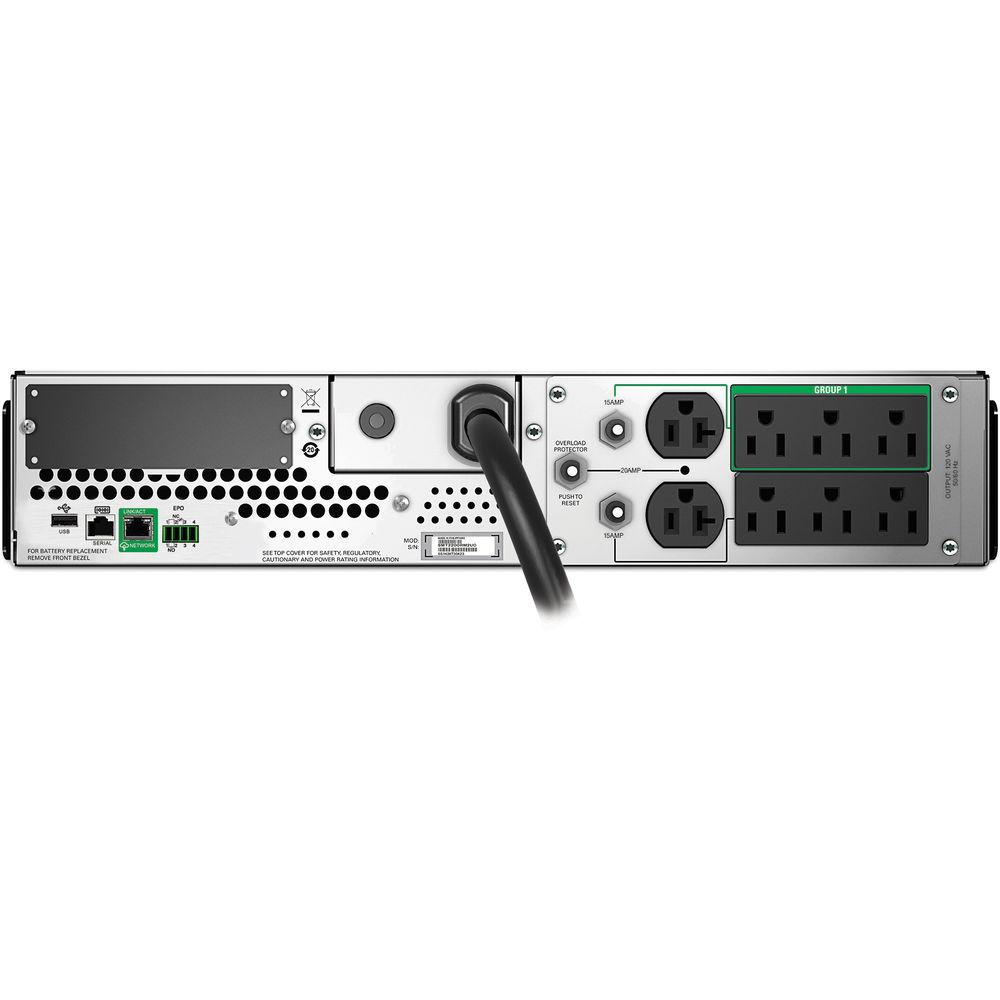

2 x NEMA 5-20R | | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge)
2 x NEMA 5-20R (Battery and Surge) | | Plug Type | NEMA 5-20P | | USB Charging Ports | None | | SmartSlot Interface | 1 | | Coax Protection | None | | Data Line Protection | RJ45 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Noise Filtering | 0.3% | | Topology | Line Interactive | | Transfer Time | 6 to 10 ms | | | | Surge Energy Rating | 530 Joules | | Maximum Wattage | 1980 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 82 to 143 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | /60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 2200 VA | | Thermal Dissipation | 215 BTU/Hour | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 6.6 Minutes | | Half-Load Runtime | 18.7 Minutes | | Charging Time | 3 Hours | | User Replaceable | Yes | | Replacement Battery | RBC43 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Storage Altitude | 0 to 50,000' / 0.00 to 15,240 m | | Noise Level | 55 dBA | | | | Cable Length | 8' / 2.44 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 18.9 x 3.4 x 26.9" / 48.0 x 8.6 x 68.3 cm | | Weight | 93.1 lb / 42.2 kg | | | | Package Weight | 111.0 lb | | Box Dimensions (LxWxH) | 39.0 x 23.5 x 9.5" |
