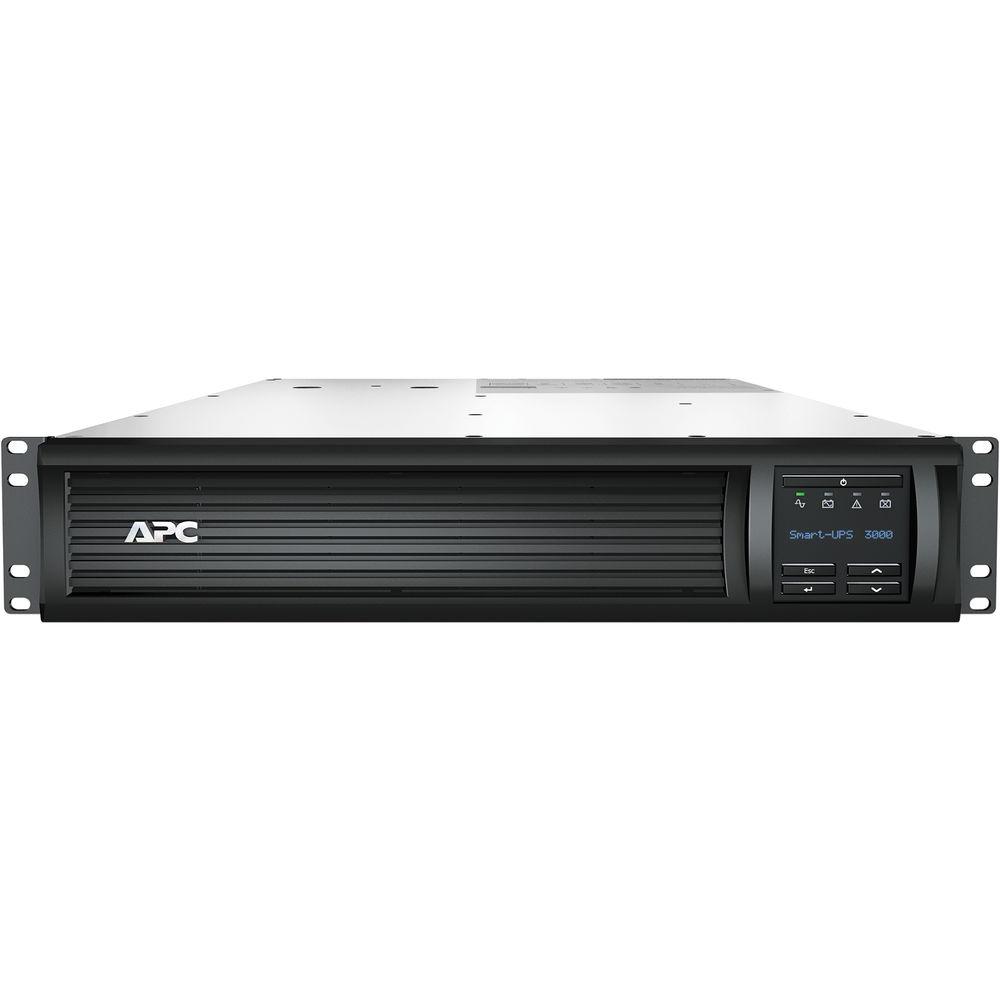

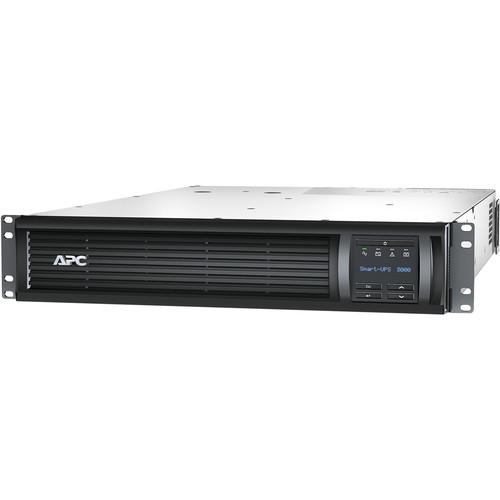

User Manual for APC Smart-UPS Battery Backup & Surge Protector with SmartConnect Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS Battery Backup & Surge
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS Battery Backup & Surge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the Smart-UPS Battery Backup with SmartConnect from APC delivers intelligent and efficient network power protection from entry level to scalable runtime. It can provide 395 minutes of use at 50W, 181 minutes of use at 100W, 99 minutes of use at 200W, 66 minutes of use at 300W, 49.1 minutes of use at 400W, 38.4 minutes of use at 500W, 31.2 minutes of use at 600W, 26 minutes of use at 700W, 22 minutes of use at 800W, 19 minutes of use at 900W, 16.5 minutes of use at 1000W, 12.9 minutes of use at 1200W, 10.3 minutes of use at 1400W, 8.3 minutes of use at 1600W, 6.8 minutes of use at 1800W, and 5.6 minutes of use at 2000W, 3.5 minutes of use at 2500W, and 2.8 minutes of use at its full load of 2700W.

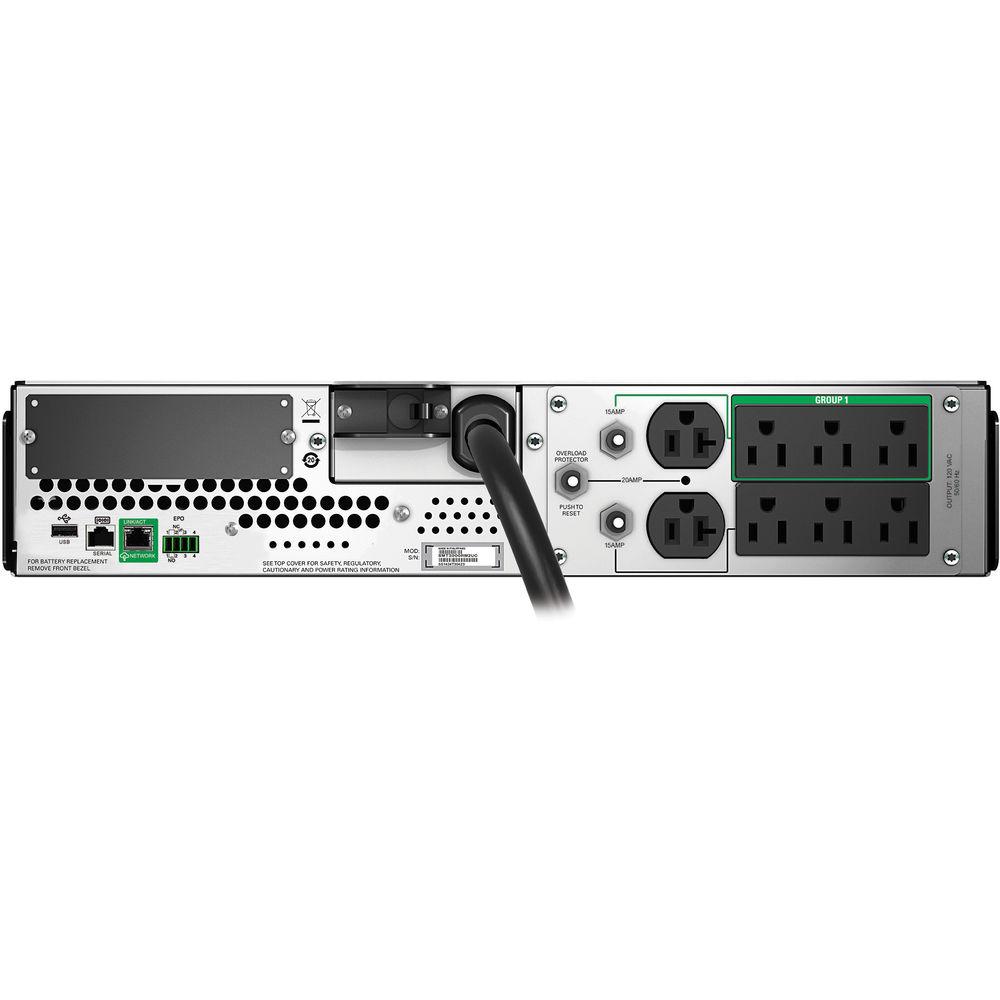

This Smart-UPS features an output of 2700W / 2880 VA, an input of 120V @ 50/60 Hz ±3 Hz, six NEMA 5-15R and two NEMA 5-20R battery backup and surge outlets, a NEMA L5-30P input connection, a surge energy rating of 459 joules, line interactive topology, and a sine waveform. Included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems, and also included are rack-mounting support rails, rack-mounting hardware, an RS-232 cable, and a USB cable. Support is provided by a limited 3-year repair or replace warranty that excludes the battery, as well as a limited 2-year battery warranty and a limited lifetime $150,000 equipment protection policy.
APC SmartConnect makes the Smart-UPS more adaptable and easier to deploy, enabling you to view the status of your UPS through a secure web portal. Through this remote management interface, you'll receive automatic notifications, firmware updates, and advanced support. SMT3000RM2UC - Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for improved performance in specific power environments or generator applications.
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve higher operating efficiency without sacrificing protection.
- Hot-Swappable Batteries
- Helps ensure clean, uninterrupted power to protected equipment while batteries are being replaced.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with user-friendly navigation keys.
- LED Indicators
- Provide easy-to-read status of the unit and utility power conditions.
- Network Manageable
- Provides remote power management of the UPS over the network.
- Outlet Group Control
- Turn on/off, reboot, or shut down select outlet groups to save dispatching technicians to remote locations.
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long-term maintenance planning.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide a high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced Network Shutdown and Reboot
- Customize network shutdown and reboot sequence of connected servers and UPSs.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- Sine Wave Output
- Helps eliminate humming and heat generated when powering tubelights and fans.
- Single Switched Outlet Group
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off, and non-critical load shedding.
- StruxureWare Data Center Expert Compatible
- Enables centralized management via StruxureWare Data Center Expert.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- USB Connectivity
- Provides management of the UPS via a USB port.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, thus reducing the Mean Time to Repair (MTTR).
UPC: 731304331070 In the Box APC Smart-UPS Battery Backup & Surge Protector with SmartConnect Powerchute Business Edition Software Rack-Mounting Hardware Rack-Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Limited Lifetime $150,000 Equipment Protection Policy Limited 2-Year Warranty (Battery Only) Limited 3-Year Warranty More from Manufacturer fyefeevcsx More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS Battery Backup & Surge Protector with SmartConnect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMT3000RM2UC Specs | | | Total Outlets | 6 x NEMA 5-15R
2 x NEMA 5-20R | | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge)
2 x NEMA 5-20R (Battery and Surge) | | Plug Type | NEMA L5-30P | | USB Charging Ports | None | | SmartSlot Interface | 1 | | Coax Protection | None | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | Yes | | Noise Filtering | 0.3% | | Topology | Line Interactive | | Transfer Time | 6 to 10 ms | | | | Surge Energy Rating | 459 Joules | | Maximum Wattage | 2700 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 82 to 144 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | /60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 2880 VA | | Thermal Dissipation | 348 BTU/Hour | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 2.8 Minutes | | Half-Load Runtime | 10.8 Minutes | | Charging Time | 3 Hours | | User Replaceable | Yes | | Replacement Battery | RBC43 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Storage Altitude | 0 to 50,000' / 0.00 to 15,240 m | | Noise Level | 55 dBA | | | | Cable Length | 8' / 2.44 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 18.9 x 3.4 x 26.9" / 48.0 x 8.6 x 68.3 cm | | Weight | 97.4 lb / 44.2 kg | | | | Package Weight | 114.0 lb | | Box Dimensions (LxWxH) | 39.0 x 23.5 x 9.5" |
