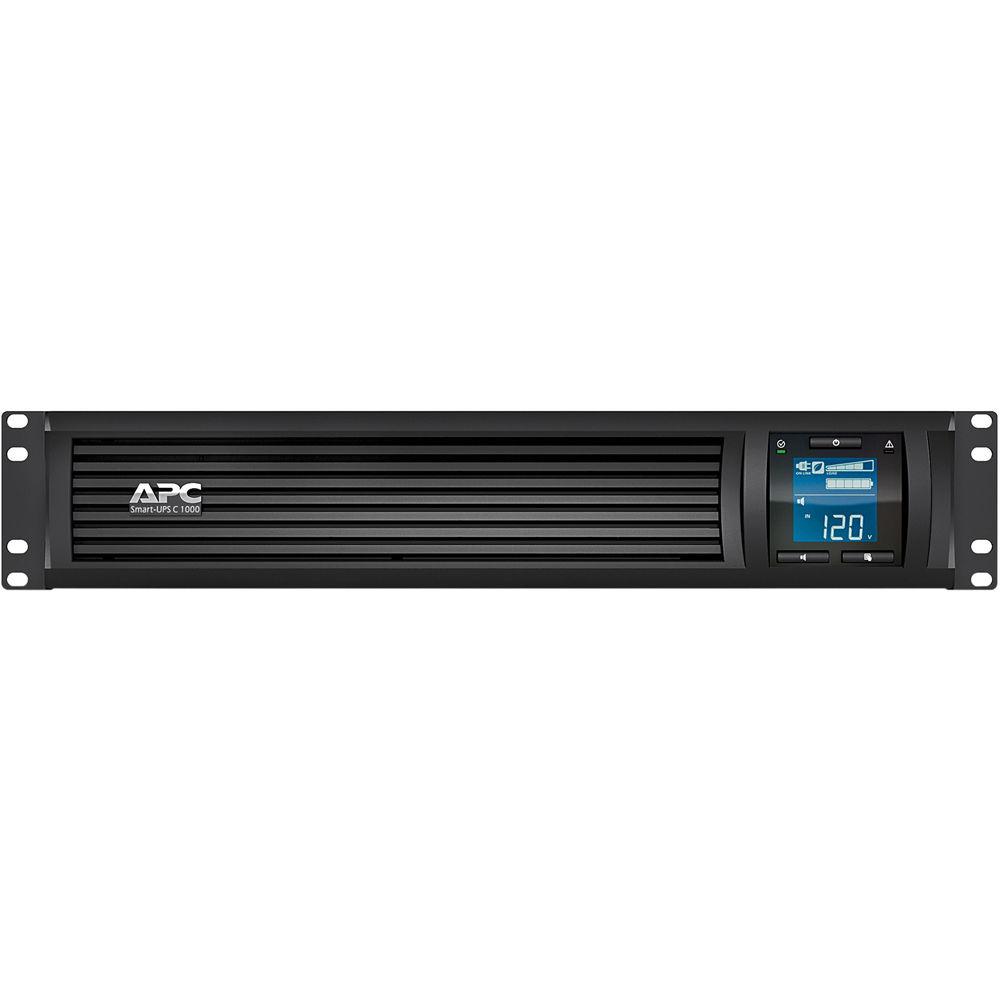

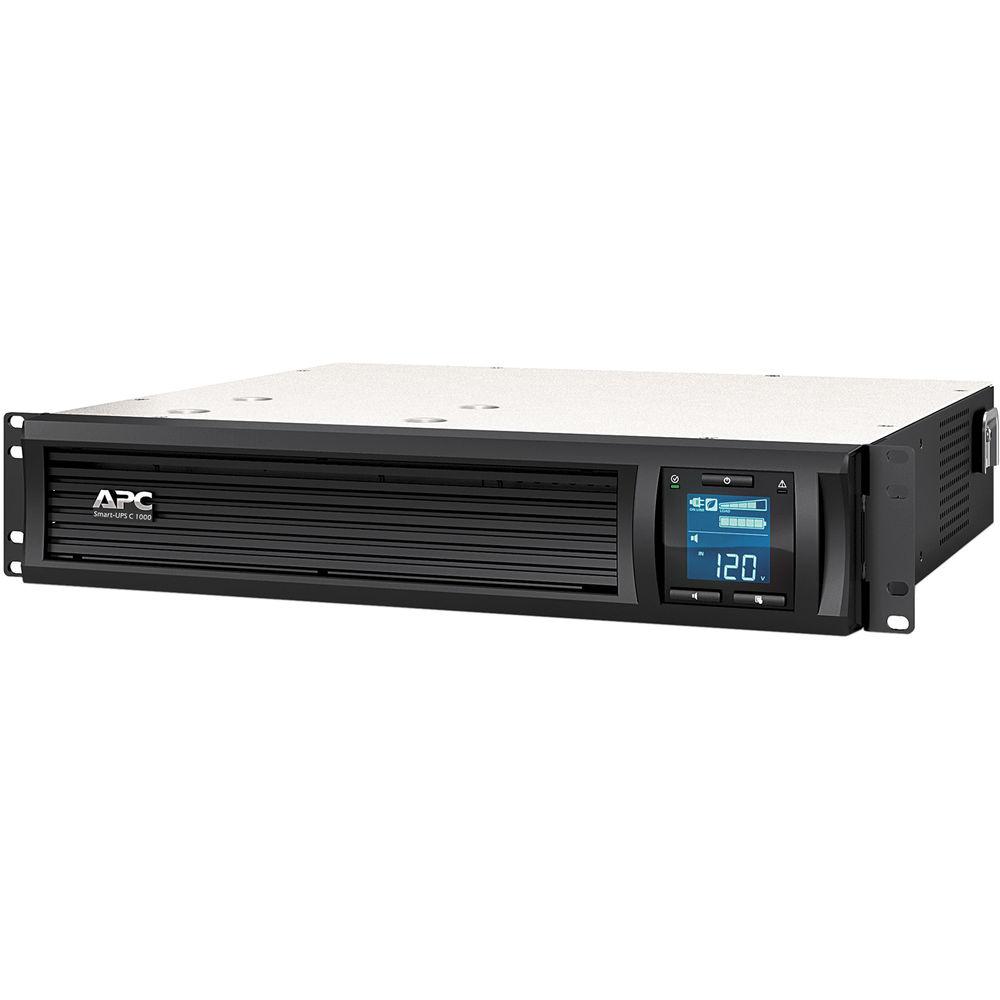

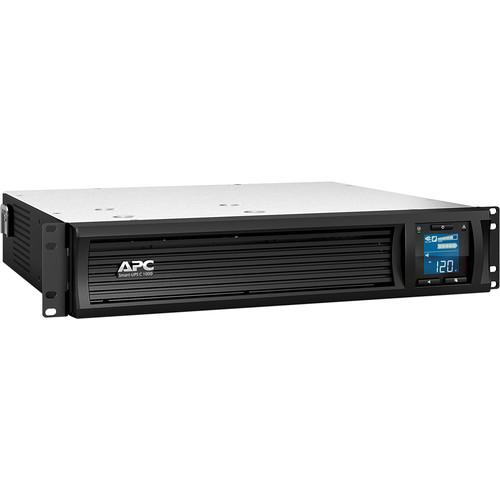

Product description Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the Smart-UPS C Battery Backup & Surge Protector with SmartConnect from APC has a 2 RU form factor and delivers intelligent and efficient network power protection from entry level to scalable runtime. It can provide 105 minutes of use at 50W, 64 minutes of use at 100W, 34.7 minutes of use at 200W, 22.5 minutes of use at 300W, 16 minutes of use at 400W, 11.9 minutes of use at 500W, and 9.2 minutes of use at 600W.

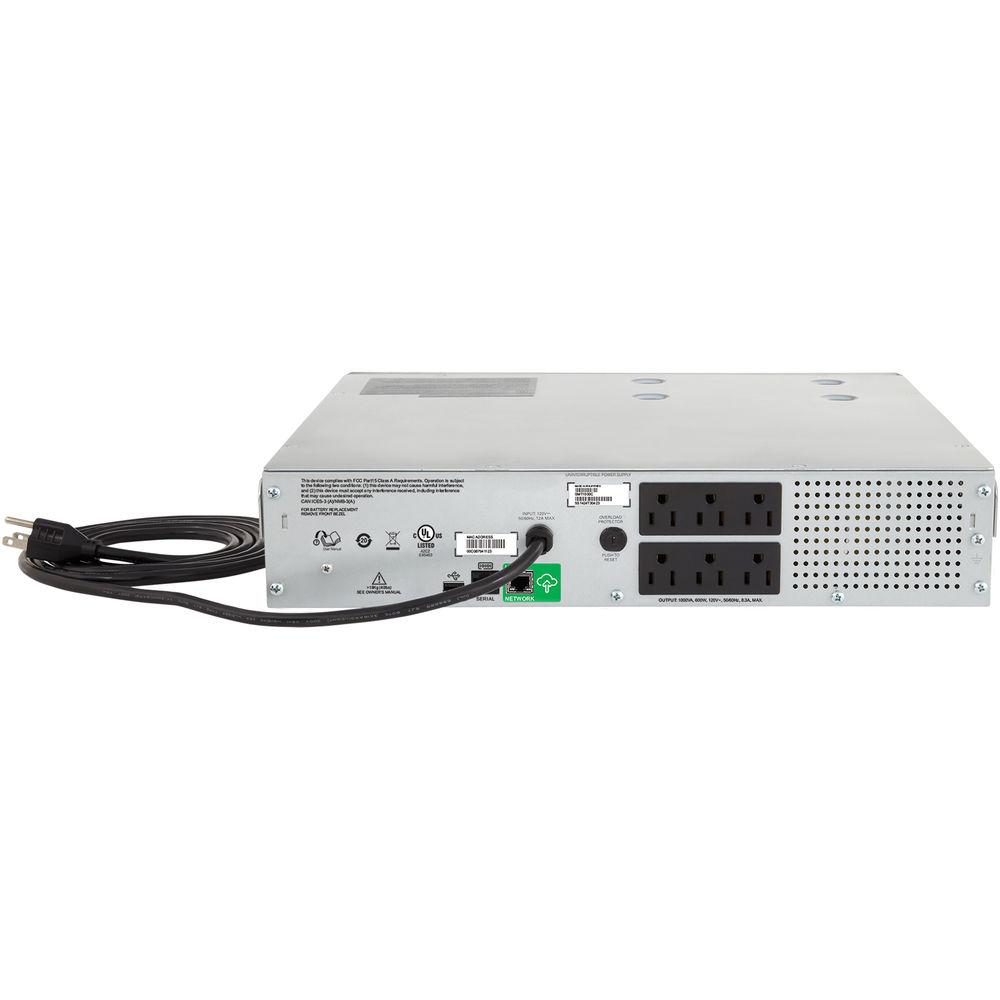

This Smart-UPS C features an output of 600W / 1000 VA, an input of 120V @ 50/60 Hz ±3 Hz, six NEMA 5-15R battery backup outlets, a NEMA 5-15P input connection, a surge energy rating of 680 joules, line interactive topology, and a sine waveform. Included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems, and also included are rack-mounting support rails and a USB cable. Support is provided by a limited 2-year repair or replace warranty and a limited lifetime $150,000 equipment protection policy.
APC SmartConnect makes the Smart-UPS more adaptable and easier to deploy, enabling you to view the status of your UPS through a secure web portal. Through this remote management interface, you'll receive automatic notifications, firmware updates, and advanced support. SMC1000-2UC Features - Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High Online Efficiency
- Reduces utility costs, generates less heat.
- LCD Status Display
- Provides key UPS status at a glance. There are multiple status indicators with load and battery bar graphs.
- Pure Sine Wave Output
- Simulates utility power to provide a high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Smart-UPS Features & Benefits Adaptability - Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for improved performance in specific power environments or generator applications.
Safety - Safety-Agency Approved
- Helps ensure the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability - Serial Connectivity
- Provides management of the UPS via a serial port.
- USB Connectivity
- Provides management of the UPS via a USB port.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Network Manageable
- Provides remote power management of the UPS over the network.
- Audible Alarms
- Actively lets you know if the unit is on battery, if the battery is low, or if there is an overload condition.
- LED Status Indicators
- Quickly understand the unit and power status with visual indicators.
Serviceability - Battery Failure Notification
- Provides early-warning fault analysis on batteries, thus enabling timely preventive maintenance.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, thus reducing the Mean Time to Repair (MTTR).
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Predictive Failure Notification
- Provides early-warning fault analysis, helping to ensure proactive component replacement.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
Availability - Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Automatic Self-Test
- A periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
UPC: 731304322733 In the Box APC Smart-UPS C Battery Backup & Surge Protector with SmartConnect Powerchute Business Edition Software Rack-Mounting Brackets USB Cable Limited Lifetime $150,000 Equipment Protection Policy Limited 2-Year Warranty More from Manufacturer vtffuzuxecvquwbeewtsdf More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS C Battery Backup & Surge Protector with SmartConnect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Smart-UPS C 1000VA LCD Specs | Total Outlets | 6 x NEMA 5-15R | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge) | Plug Type | NEMA 5-15P | USB Charging Ports | None | SmartSlot Interface | None | Coax Protection | None | Data Line Protection | RJ45 | Communications | USB, Serial | Emergency Power Off (EPO) Support | No | Noise Filtering | 0.3% | Topology | Line Interactive | Transfer Time | 6 to 10 ms | | Surge Energy Rating | 680 Joules | Maximum Wattage | 600 W | Nominal Input Voltage | 120 VAC | Input Voltage Range | 93 to 130 VAC | Input Voltage Adjustable Range | 85 to 136 VAC | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | Nominal Output Voltage | 120 VAC | Output Voltage Range | 110 to 127 VAC | Output Frequency | /60 Hz ± 3 Hz | Voltage Distortion | <5% | Load Capacity | 1000 VA | Thermal Dissipation | 175 BTU/Hour | Waveform | Sine Wave | | Chemistry | Lead-Acid | Full-Load Runtime | 9.2 Minutes | Half-Load Runtime | 22.5 Minutes | Charging Time | 3 Hours | User Replaceable | Yes | Replacement Battery | APCRBC124 | Hot-Swap Support | Yes | External Battery Connection | None | | Operating Temperature | 32 to 104°F / 0 to 40°C | Operating Humidity | 0 to 95% | Storage Temperature | 5 to 113°F / -15 to 45°C | Storage Humidity | 0 to 95% | Operating Altitude | 0.00 to 9842' / 0 to 3000 m | Storage Altitude | 0.00 to 49,212' / 0 to 15,000 m | Noise Level | 41 dBA | | Cable Length | 8.01' / 2.44 m | Rack Form Factor | 2 RU | Dimensions (W x H x D) | 17.0 x 3.4 x 16.0" / 43.2 x 8.6 x 40.6 cm | Weight | 45.2 lb / 20.5 kg | | Package Weight | 46.0 lb | Box Dimensions (LxWxH) | 22.5 x 22.0 x 9.0" |
