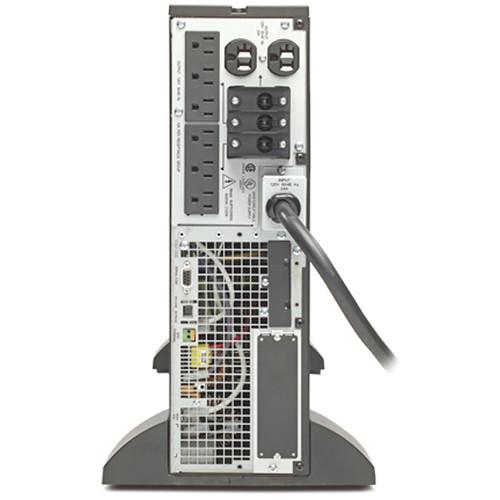

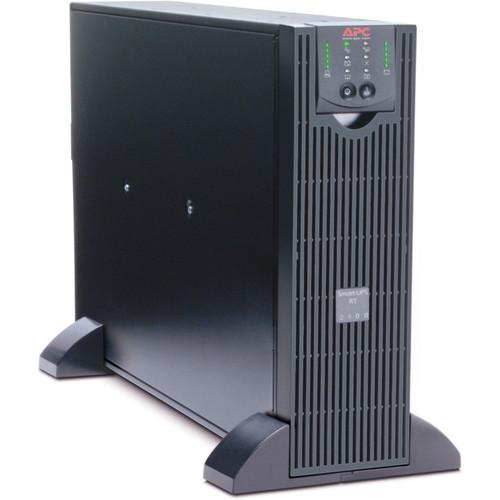

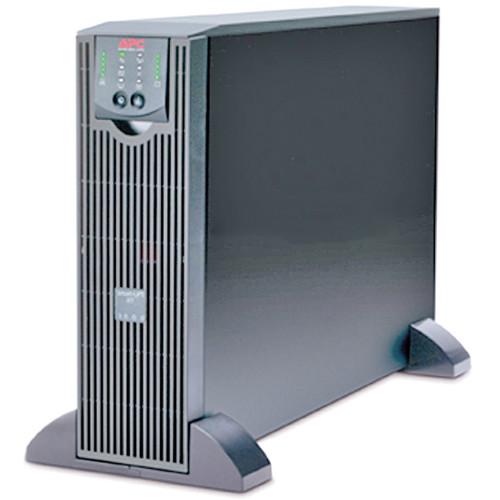

User Manual for APC Smart-UPS RT 3U 3000VA 120V UPS Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS RT 3U 3000VA 120V
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS RT 3U 3000VA 120V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The black Smart-UPS RT 3U 3000VA 120V UPS from APC provides temporary battery power when the utility power is out through the use of internal batteries. It features hot-swappable batteries, temperature compensated battery charging, LED status indicators, an automatic self-test, and more. It also corrects poor frequency and voltage conditions without using the battery. The UPS can protect connected loads from surges, spikes, lightning, and other power disturbances. It provides remote power management of the UPS over networks using the PowerChute software. Availability - Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault
- Scalable Runtime
- Allows additional run time to be added as needed
- Battery Management
- Maximizes battery performance, life, and reliability through, precision charging
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Temperature Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
Manageability - Network Manageable
- Provides remote power management of the UPS over the network
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager
- SmartSlot
- Customizes UPS capability with management cards
- LED Status Indicators
- Quickly understand unit and power status with visual indicators
- Serial Connectivity
- Provides management of the UPS via a serial port
Adaptability - Plug and Play External Batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS
- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rackmount environment
- Flash Upgradeable Firmware
- Install maintenance releases of firmware remotely, using FTP
Serviceability - User Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions
Protection - Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions, without using the battery
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances
- Input Power Factor Correction
- Minimizes installation cost by enabling the use of smaller generators and cabling
- Generator Compatible
- Ensures clean, uninterrupted power to protected equipment when generator power is used
- Cold-Start Capable
- Provides temporary battery power when the utility power is out
- Resettable Circuit Breaker
- Easy recovery from overloads, no need to replace a fuse
- Safety Agency Approved
- Ensures that the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
UPC: 731304231479 In the Box APC Smart-UPS RT 3U 3000VA 120V UPS (Black) PowerChute Software CD RS232 Serial Communication Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS RT 3U 3000VA 120V UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SURTA3000XL Specs | | | Total Outlets | 6 x NEMA 5-15R
2 x NEMA 5-20R | | Plug Type | NEMA L5-30P | | SmartSlot Interface | 1 | | Communications | Serial | | Emergency Power Off (EPO) Support | Yes | | Noise Filtering | 0.3% | | Topology | Double Conversion | | | | Surge Energy Rating | 480 Joules | | Maximum Wattage | 2100 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 90 to 150 VAC | | Input Frequency | 50/60 Hz ± 5 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz (Configurable) | | Voltage Distortion | <3% | | Load Capacity | 3000 VA | | Thermal Dissipation | 655 BTU/Hour | | Maximum Efficiency | 87.2% | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 2.5 Hours | | Replacement Battery | RBC44 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 3 RU | | Dimensions (W x H x D) | 5.1 x 17.0 x 25.9" / 13.0 x 43.2 x 66.0 cm | | Weight | 120.3 lb / 54.6 kg | | | | Package Weight | 139.6 lb | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 14.0" |
