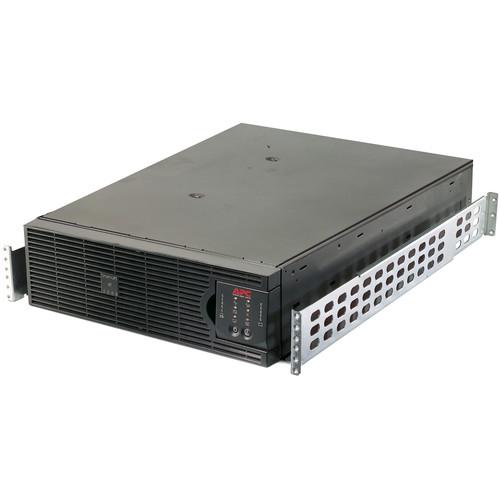

User Manual for APC Smart-UPS RT 5000VA RM 208V to 208 120V Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS RT 5000VA RM 208V
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS RT 5000VA RM 208V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Provided by third party: APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.
- Key Features
-
- Automatic internal bypass - supplies utility power to the connected loads in the event of a UPS power overload or fault
- Scalable runtime - allows additional run time to be quickly added as needed
- Intelligent battery management - maximizes battery performance, life, and reliability through intelligent, precision charging
- Hot-swappable batteries - ensure clean, uninterrupted power to protected equipment while batteries are being replaced
- Automatic restart of loads after UPS shutdown - automatically starts up the connected equipment upon the return of utility power
- Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
- Network manageable - provides remote power management of the UPS over the network
- InfraStruXure manager compatible - enables centralized management via the APC InfraStruXure manager
- SmartSlot - customize UPS capabilities with management cards
- LED status indicators - quickly understand unit and power status with visual indicators
- Serial connectivity - provides management of the UPS via a serial port
- Plug-and-Play external batteries - ensure clean, uninterrupted power to the loads when adding extra runtime to the UPS
- Rack/Tower convertible - protects the initial investment in the UPS when migrating from tower to rack-mount environment
- Flash upgradeable firmware - install maintenance releases of firmware remotely using FTP
- User-replaceable batteries - increase availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced
- Predicitive failure notification - provides early-warning fault analysis ensuring proactive component replacement
- Disconnected battery notification - warns when a battery is not available to provide backup power
- Audible alarms - provide notification of changing utility power and UPS power conditions
- Frequency and voltage regulation - gives higher application availability by correcting poor frequency and voltage conditions without using the battery
- Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances
- Input power factor correction - minimizes installation costs by enabling the use of smaller generators and cabling
- Generator compatible - ensures clean, uninterrupted power to protected equipment when generator power is used
- Cold-start capable - provides temporary battery power when the utility power is out
- Resettable circuit breaker - easy recovery from overloads; no need to replace a fuse
- Safety-agency approved - ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
- Multiple output voltages
- 48Vdc, 24Vdc, and 120Vac are available to power all of the equipment in the cabinet
UPC: 731304258810 In the Box APC Smart-UPS RT 5000VA RM 208V to 208/120V CD with software, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, User Manual More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS RT 5000VA RM 208V to 208 120V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Smart-UPS RT 5000VA Specs | | | Device Type | UPS - rack-mountable | | Height (Rack Units) | 3U | | Color | Black | | | | UPS Technology | On-line | | Input Voltage | AC 208/240 V | | Input voltage range | AC 156 - 236 V | | Input Voltage Range (Adjustable) | AC 86 - 154 V | | Frequency Provided | 50/60 Hz | | Frequency Required | 50/60 Hz | | Input Connectors | Power NEMA L14-30 | | Power Output Connectors Details | 4 x power NEMA 5-20
1 x power NEMA L14-30
1 x power NEMA L6-20 | | Output Voltage | AC 120/208 V
