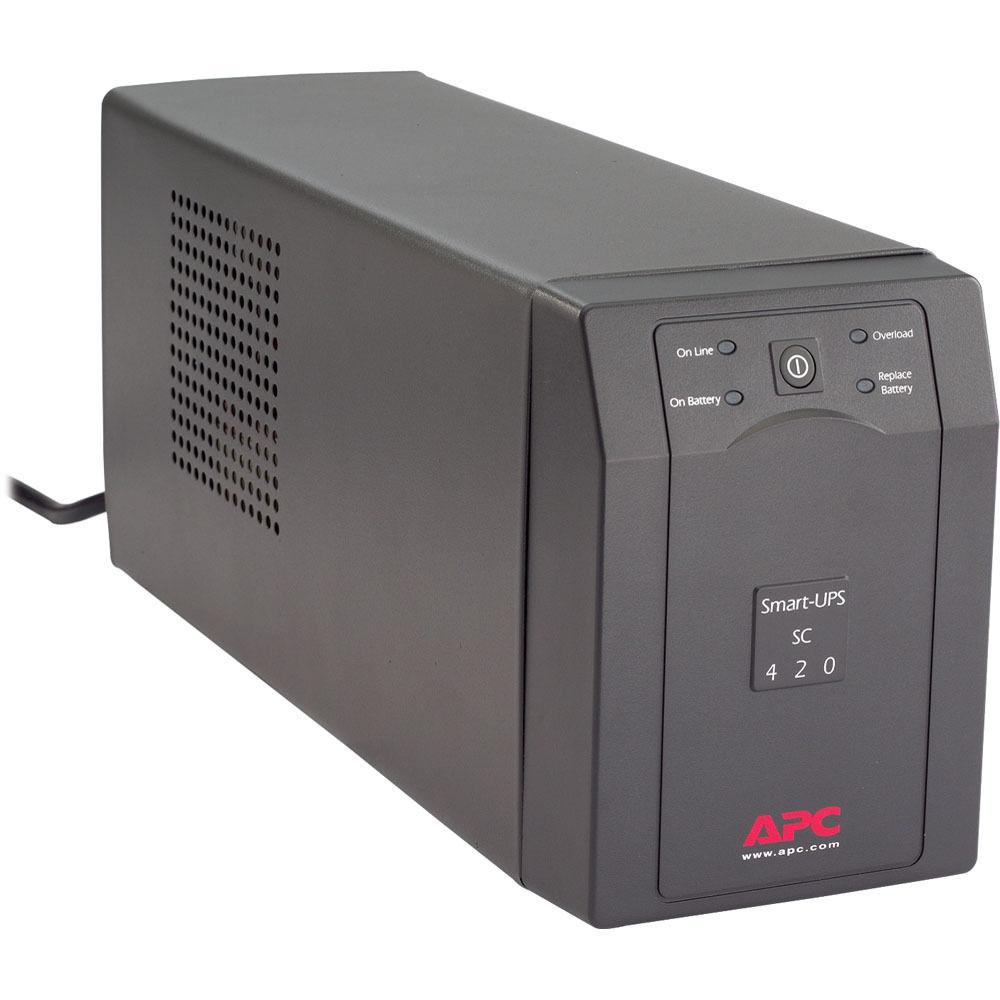

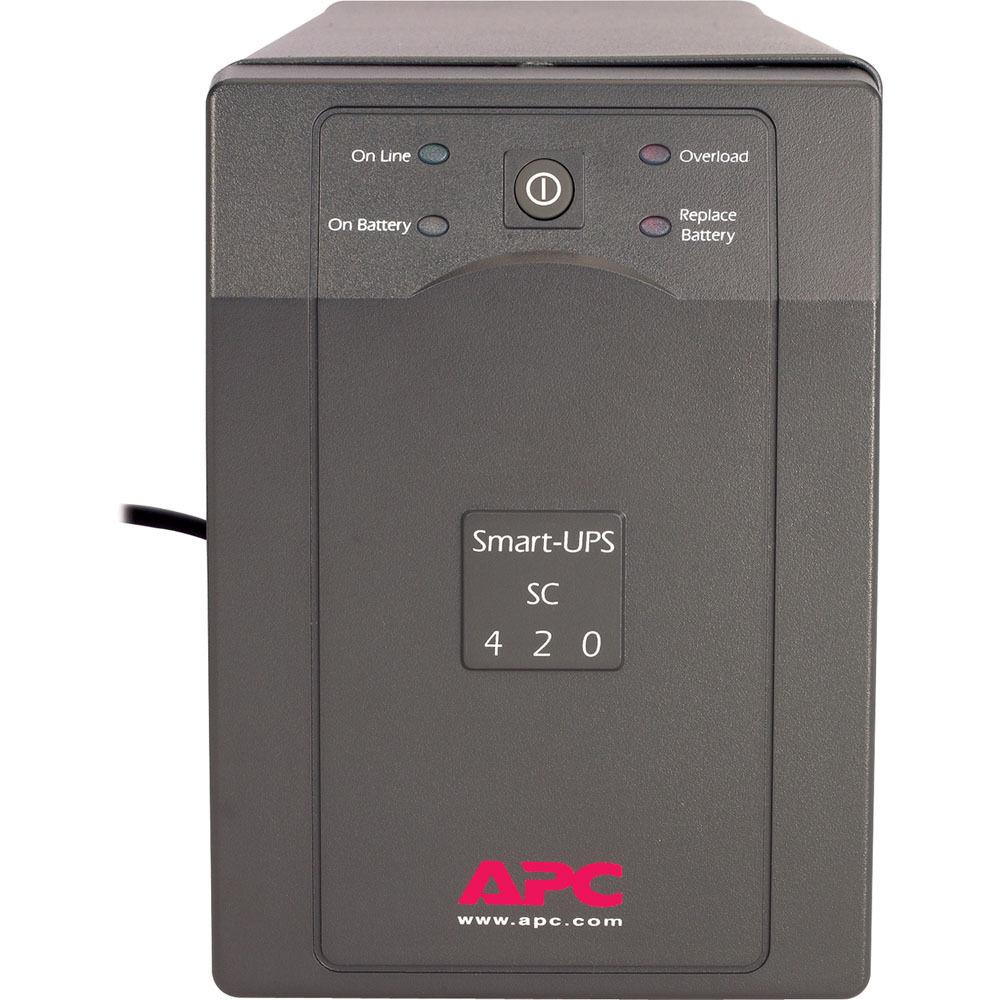

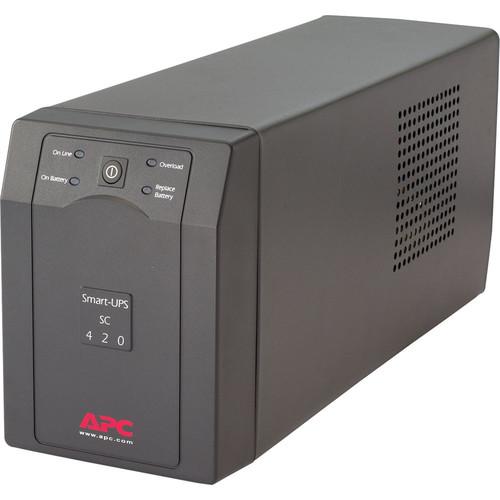

User Manual for APC Smart-UPS SC 420VA Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS SC 420VA
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS SC 420VA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart-UPS SC 420VA (120V) from APC provides power protection and battery backup for office computer systems. The UPS provides surge protection and battery backup via 4 outlets. It yields an average output power capacity of 420VAC at 260 watts and the battery lasts up to 14 minutes at half-load capacity.
The UPS also features RS-232 serial communication and RJ-45 data line protection. APC offers guaranteed protection from surges and spikes with their lifetime $150,000 Equipment Protection Policy. These features make the Smart-UPS SC an excellent choice to provide power and battery backup for your office PC. - Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Restart After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
UPC: 731304222606 In the Box APC Smart-UPS SC ${VA}VA 120V Surge Protector and Battery Backup Software CD Smart UPS Signalling RS-232 Cable User Manual Limited 2-Year Warranty More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SC 420VA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

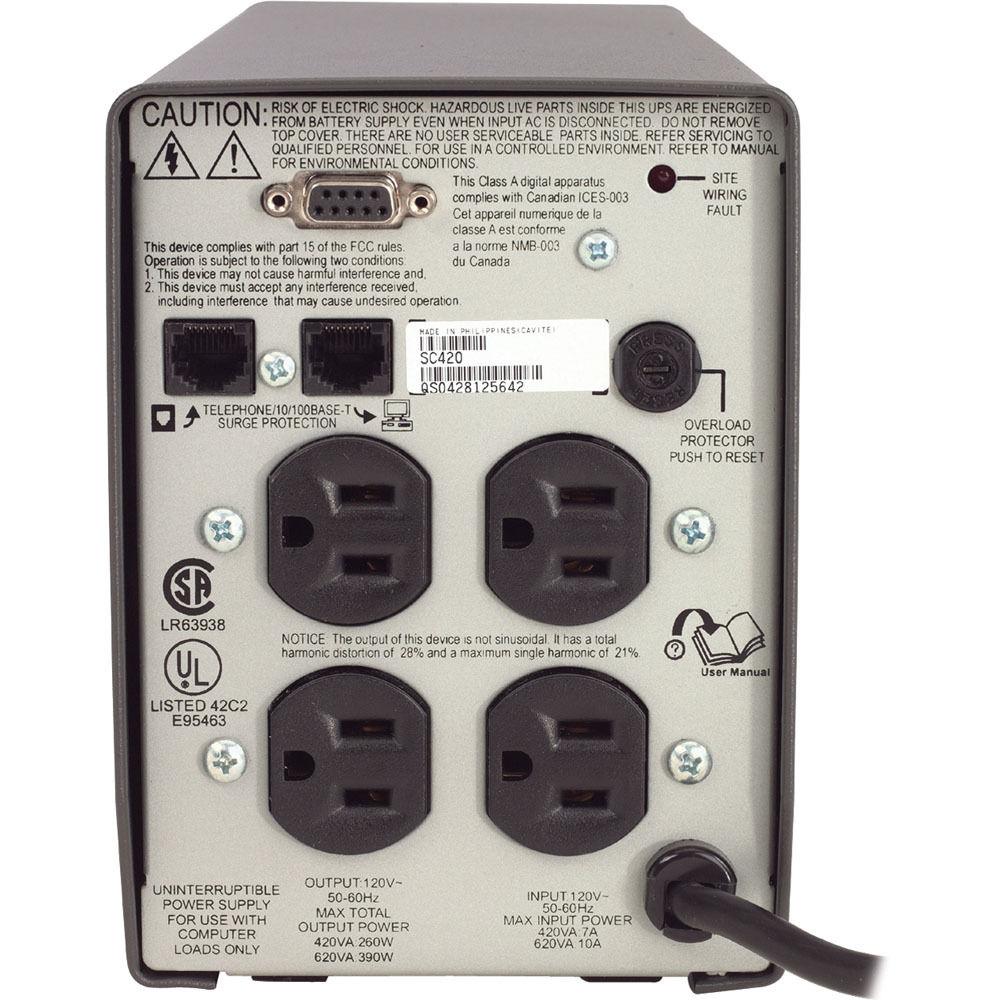

Technical parametersAPC 420 Specs | | | Total Outlets | 4 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | Data Line Protection | RJ45 | | Communications | Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | | | Surge Energy Rating | 412 Joules | | Maximum Wattage | 260 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 420 VA | | Thermal Dissipation | 50 BTU/Hour | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 5 Hours | | Replacement Battery | RBC2 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 45 dBA | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 6.6 x 4.7 x 14.5" / 168.0 x 119.0 x 368.0 mm | | Weight | 22.0 lb / 10.0 kg | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 20.0 x 12.5 x 10.5" |
