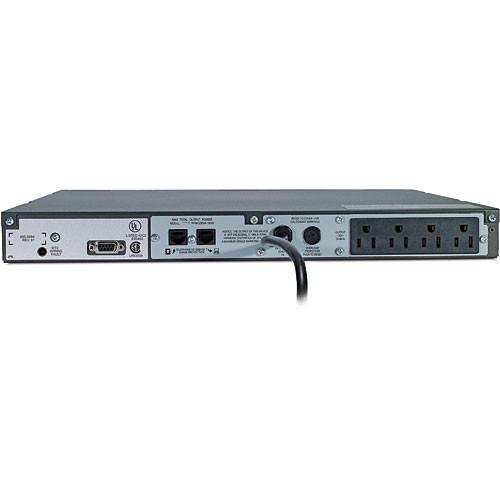

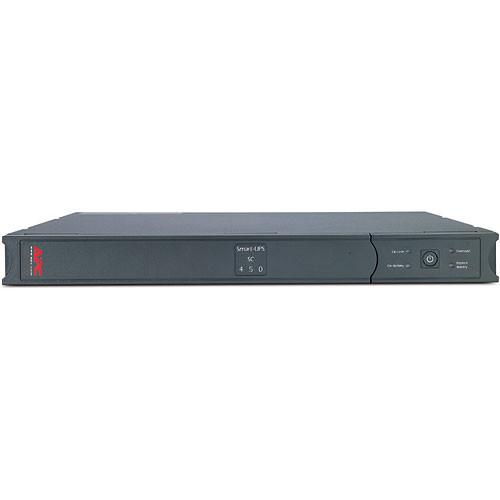

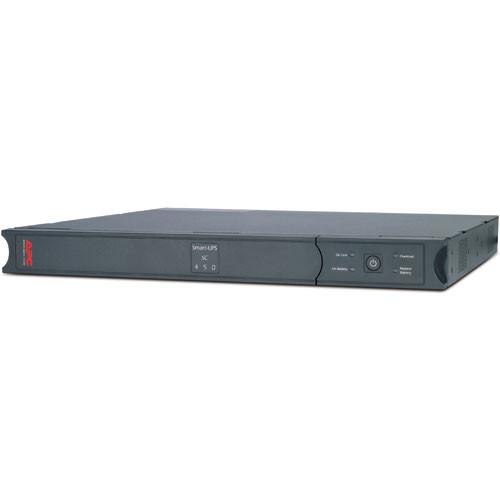

User Manual for APC Smart-UPS SC 450VA 1U Rackmount Tower Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS SC 450VA 1U Rackmount
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS SC 450VA 1U Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart-UPS SC 450VA 1U Rackmount/Tower (120V) from APC is a professional uninterruptible power supply designed to prevent blackouts, brownouts, sags, and surges from reaching your valuable equipment. It filters small utility line fluctuations and isolates your equipment from danger by internally disconnecting it from the utility line. When disconnected from the utility line, power is provided continuously from its internal battery until normal or safe conditions return or the battery is fully discharged. The unit also supplies battery-powered AC.
The UPS can be used in a tower or rackmount configuration. Front-access servicing also makes it easier to manage. This unit also offers RS-232 connectivity. It includes a $150,000 equipment-protection policy. - Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Multiple Mounting Methods
- Allows for standardization on one product for use in different environments.
- Front-Access Servicing
- Simplifies installation and maintenance while minimizing space requirements.
UPC: 731304222705 In the Box APC Smart-UPS SC 450VA 1U Rackmount/Tower (120V) Software CD Rack Mounting Brackets Smart UPS Signaling RS-232 Cable User Manual Limited 2-Year Warranty More from Manufacturer dzaywtsywxrtcbuwrwtfawtzwusetryzvavu More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SC 450VA 1U Rackmount Tower in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 450 Specs | | | Total Outlets | 4 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | Data Line Protection | RJ45 | | Communications | Serial | | Emergency Power Off (EPO) Support | No | | Noise Filtering | 0.7% | | Topology | Line Interactive | | | | Surge Energy Rating | 400 Joules | | Maximum Wattage | 280 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 450 VA | | Thermal Dissipation | 38 BTU/Hour | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 5 Hours | | Replacement Battery | RBC18 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 38 dBA | | | | Cable Length | 6' / 1.8 m | | Rack Form Factor | 1 RU | | Dimensions (W x H x D) | 1.7 x 17.0 x 15.2" / 33.0 x 432.0 x 385.0 mm | | Weight | 23.7 lb / 10.8 kg | | | | Package Weight | 27.1 lb | | Box Dimensions (LxWxH) | 23.0 x 19.0 x 6.2" |
