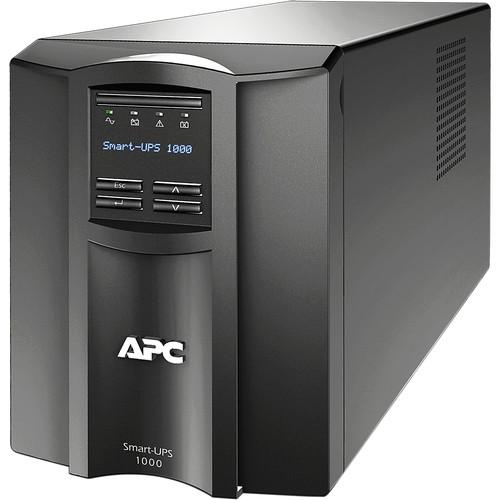

User Manual for APC Smart-UPS SMT1000C with SmartConnect Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS SMT1000C with SmartConnect
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS SMT1000C with SmartConnect contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the Smart-UPS SMT1000C with SmartConnect from APC delivers intelligent and efficient network power protection from entry level to scalable runtime. It can provide 183 minutes of use at 50W, 100 minutes of use at 100W, 45 minutes of use at 200W, 25 minutes of use at 300W, 15 minutes of use at 400W, 10 minutes of use at 500W, and 7 minutes of use at 600W. It features an output of 700W / 1000kVA, an input of 120V @ 50/60 Hz ±3 Hz, eight NEMA 5-15R battery backup outlets, a surge energy rating of 680 joules, line interactive topology, and a sine waveform. Included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems, and also included is an RS-232 cable and a USB cable. Support is provided by a limited 3-year repair or replace warranty that excludes the battery, as well as a limited 2-year battery warranty and a limited lifetime $150,000 equipment protection policy. UPC: 731304322771 In the Box APC Smart-UPS SMT1000C with SmartConnect Powerchute Business Edition Software Smart UPS Signaling RS-232 Cable USB Cable Lifetime $150,000 Equipment Protection Policy Limited 2-Year Warranty (Battery Only) Limited 3-Year Warranty More from Manufacturer cvsuvwcaddsbbyacfrsxssrxbwtc More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SMT1000C with SmartConnect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Smart-UPS 1000VA LCD Specs | | | Total Outlets | 8 x NEMA 5-15R | | Protected Outlets | 8 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P | | USB Charging Ports | None | | SmartSlot Interface | 1 | | Coax Protection | None | | Data Line Protection | None | | Communications | USB | | Emergency Power Off (EPO) Support | No | | Noise Filtering | 0.3% | | Topology | Line Interactive | | Transfer Time | 6 to 10 ms | | | | Surge Energy Rating | 680 Joules | | Maximum Wattage | 700 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 82 to 144 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Voltage Range | 110 to 127 VAC | | Output Frequency | /60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 1000 VA | | Thermal Dissipation | 175 BTU/Hour | | Maximum Efficiency | 96.2% | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 5.8 Minutes | | Half-Load Runtime | 19.1 Minutes | | Charging Time | 3 Hours | | User Replaceable | Yes | | Replacement Battery | RBC6 | | Hot-Swap Support | Yes | | External Battery Connection | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Storage Altitude | 0 to 50,000' / 0.00 to 15,240 m | | Noise Level | 41 dBA | | | | Cable Length | 6' / 1.83 m | | Dimensions (W x H x D) | 6.7 x 8.6 x 17.3" / 17.0 x 21.8 x 43.9 cm | | Weight | 44.3 lb / 20.1 kg | | | | Package Weight | 48.5 lb | | Box Dimensions (LxWxH) | 23.5 x 13.0 x 13.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
