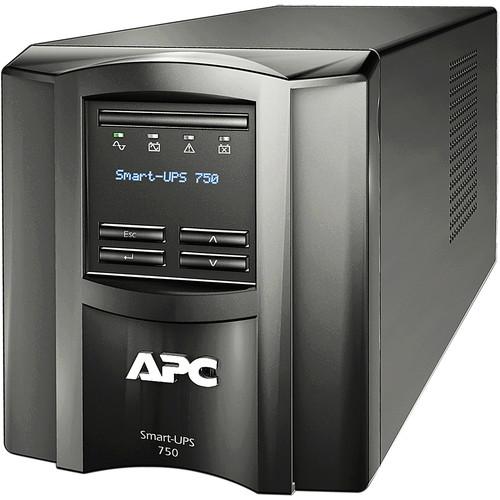

User Manual for APC Smart-UPS SMT750C Battery Backup & Surge Protector with SmartConnect Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS SMT750C Battery Backup &
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS SMT750C Battery Backup & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the Smart-UPS SMT750C Battery Backup & Surge Protector from APC delivers intelligent and efficient network power protection from entry level to scalable runtime. It can provide 103 minutes of use at 50W, 50 minutes of use at 100W, 22 minutes of use at 200W, 16 minutes of use at 250W, 12 minutes of use at 300W, and 5 minutes of use at 500W. It also provides an output capacity of 500W / 750 VA, six total NEMA 5-15R battery backup outlets, an input voltage of 120 VAC at 50/60 Hz ±3 Hz using its 6' cord with a NEMA 5-15P plug, and a surge energy rating of 540 joules. Its sealed lead-acid battery is maintenance-free, has suspended electrolytes, and can be recharged in around 3 hours. Included is a USB cable, a limited 3-year repair or replace warranty for the main unit, a limited 2-year battery warranty, and a limited lifetime $150,000 equipment protection. Also included is PowerChute Network Shutdown management software, which helps to provide unattended, yet proper shutdowns of network operating systems. SMT750C Features - Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve higher operating efficiency without sacrificing protection.
- High Online Efficiency
- Reduces utility costs and generates less heat.
- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with user-friendly navigation keys.
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long-term maintenance planning.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide improved compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- SmartSlot
- Customize UPS capabilities with management cards.
Smart-UPS Features & Benefits Availability - Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
Safety - Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability - Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- USB Connectivity
- Provides management of the UPS via a USB port.
- Network Manageable
- Provides remote power management of the UPS over the network.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- Audible Alarms
- Actively lets you know if the unit is on-battery, if the battery is low, or if there is an overload condition.
Adaptability - Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for improved performance in specific power environments or generator applications.
Serviceability - Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing the Mean Time to Repair (MTTR).
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
UPC: 731304325451 In the Box APC Smart-UPS SMT750C Battery Backup & Surge Protector with SmartConnect USB Cable Limited Lifetime $150,000 Equipment Protection Policy Limited 2-Year Warranty (Battery Only) Limited 3-Year Warranty More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SMT750C Battery Backup & Surge Protector with SmartConnect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 750VA Specs | | | Total Outlets | 6 | | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Communications | USB | | Noise Filtering | 0.3% | | Topology | Line Interactive | | Transfer Time | 6 to 10 ms | | | | Surge Energy Rating | 540 Joules | | Maximum Wattage | 500 W | | Input Voltage Range | 110 to 127 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Voltage Range | 110 to 127 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 750 VA | | Thermal Dissipation | 90 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | RBC48 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 41 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 6.3 x 5.4 x 14.5" / 16.1 x 13.8 x 36.9 cm | | Weight | 27.5 lb / 12.5 kg | | | | Package Weight | 31.2 lb | | Box Dimensions (LxWxH) | 19.2 x 11.5 x 11.0" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to APC Smart-UPS SMT750C Battery Backup & Surge Protector with SmartConnect
| Subject: Question on APC SMT750C | | Date: 10.03.2021 01:32:17 | Name: Peter Ryan | Will the APC SMT750C support the AP9613 smart card relay cold contacts. will this provide a contact closure when line power is lost and the USP switches in. I am looking for the AP9613 to provide a cold contact output when the power is lost this will signal the connected device to go into power down and the ups can supply power for proper shutdown.
