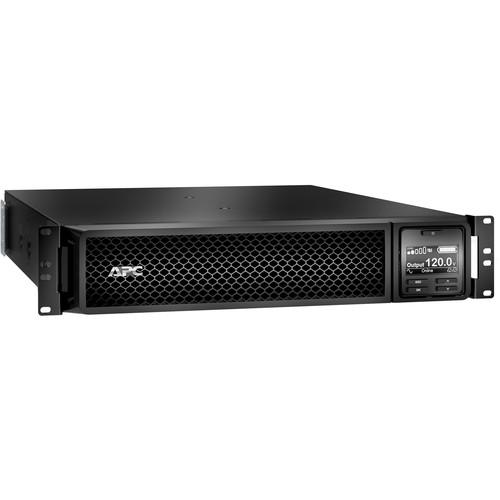

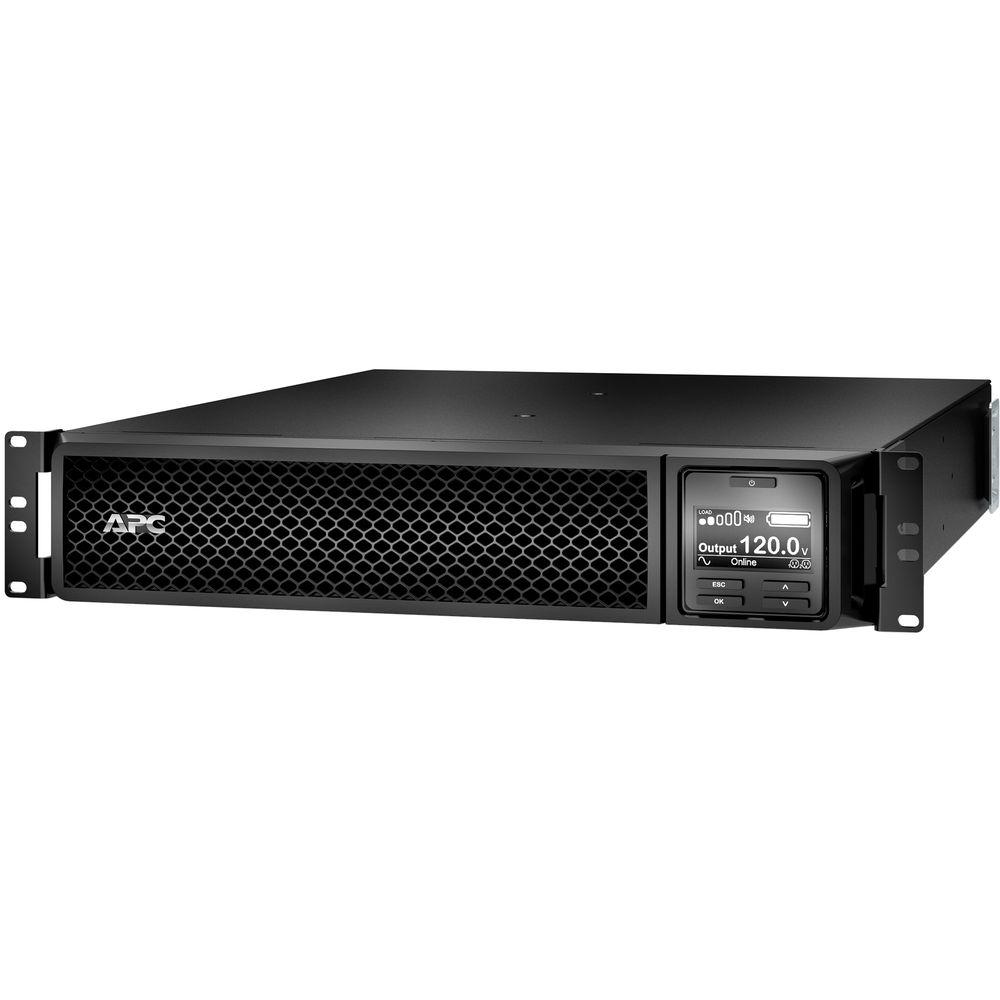

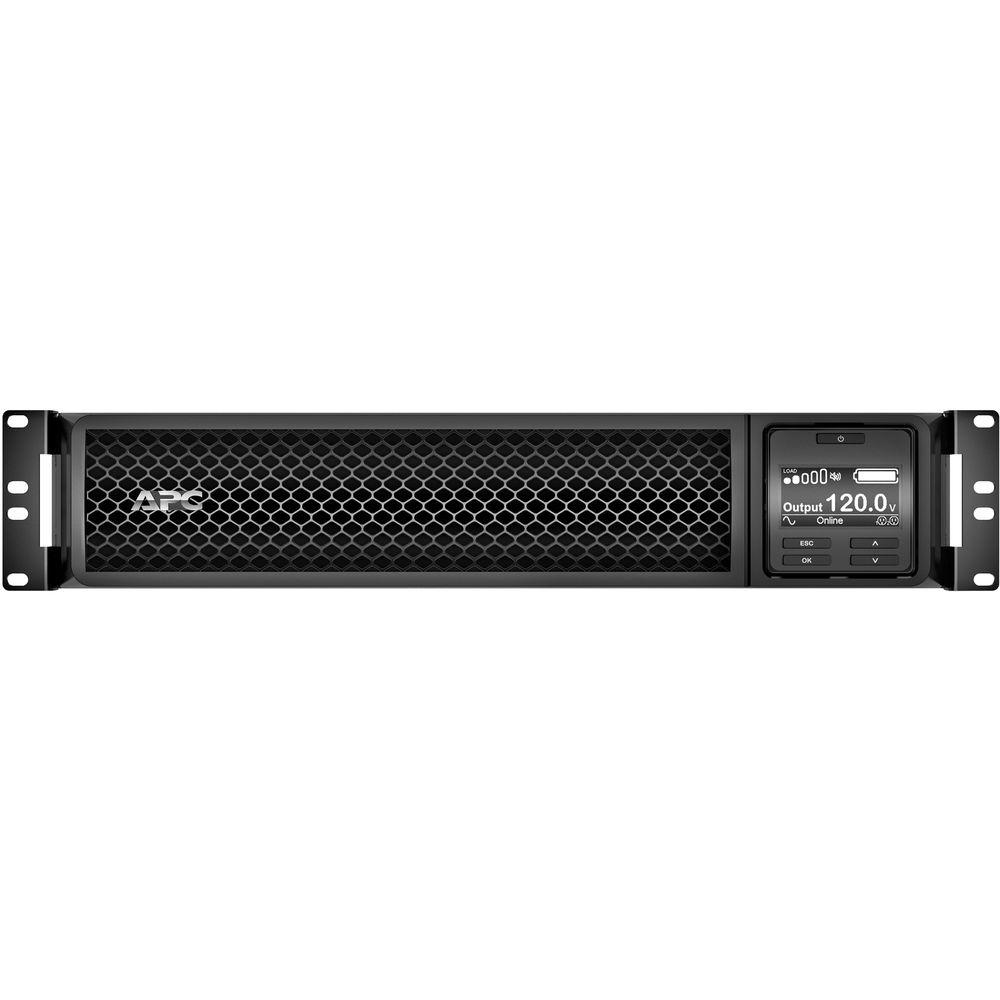

User Manual for APC Smart-UPS SRT 1000VA Rack Mount with Network Management Card Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS SRT 1000VA Rack Mount
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS SRT 1000VA Rack Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

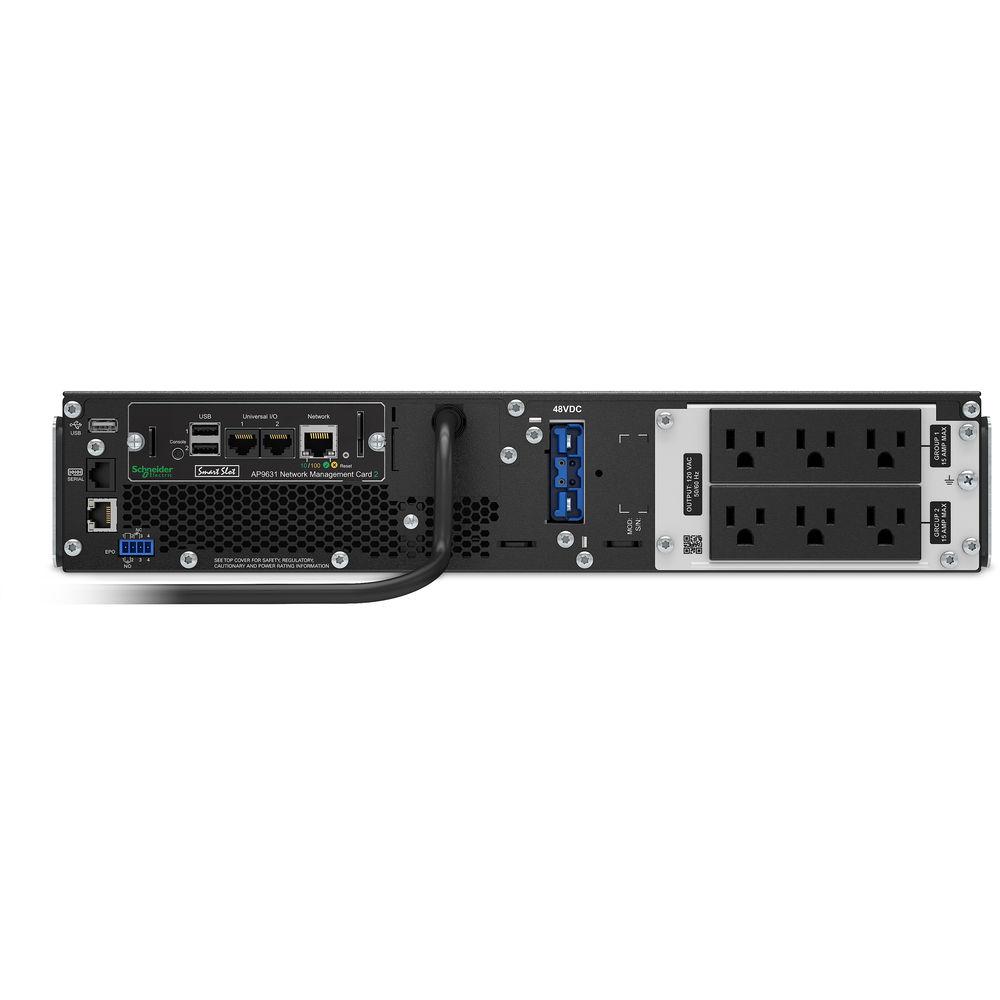

Product description Keep your servers up and running during a power outage with the Smart-UPS SRT 1000VA Rack Mount with Network Management Card (120V) from APC. With a maximum output power capacity of 900W / 1000VA, six NEMA 5-15R outputs, and a pre-installed network management card, the Smart-UPS SRT 1000VA offers ideal power and surge protection for applications such as mid-range Windows/Linux servers, Wi-Fi applications, data network backbones, medical labs, ATM machines, cellular sites, and other business-critical systems. The rack/tower convertible Smart-UPS SRT 1000VA comes with a multi-color backlit LCD status display that shows current load, battery charge, output/input voltage, runtime, and battery health. Also included are Ethernet, serial, USB and SmartSlot interfaces, a pre-installed AP9631 network management card, audible alarms, hot-swappable batteries, an estimated three-hour recharge time, and cold-start functionality. - Backlit Graphical LCD
- Backlit LCD provides text in multiple languages and mimic diagrams that display modes of operation, system parameters, and alarms, with the ability to configure locally. Multi-color backlighting shows normal operation while highlighting issues that need attention, allowing for users to easily identify the UPS status. Information available on the LCD includes load indicator, battery charge, output/input voltage, runtime, load, and battery health.
- Switched Outlet Groups
- Provides the ability to control a group of receptacles independent from the main UPS. This feature allows options such as the ability to reboot hung devices without cycling the entire UPS, shedding of non-critical loads based on various parameters, scheduling time off to conserve energy, and sequenced turn on/off.
- Intelligent Battery Management
- Temperature-compensated charging helps to extend battery life, while advanced algorithms recommend replacement date. The UPS is designed to inform users which batteries need to be replaced in advance and detect when additional battery packs are added.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- ECO Mode
- Bypasses unused electrical components in good power conditions to boost operating efficiency by up to 95% without sacrificing protection.
- Operate without Battery
- Ability to protect equipment when power returns after a complete discharge of the battery.
- Built-in Energy Meter
- Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.
- Network Manageable
- Manage the UPS via serial, USB or Ethernet. Includes PowerChute software for monitoring and control, safe operating system shutdown, and energy management capabilities.
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager.
- Plug-and-Play External Batteries
- Helps to ensure clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Flash Upgradeable Firmware
- Allows for installation of maintenance releases remotely via FTP.
- SmartSlot Support
- Customize UPS capabilities with SmartSlot management cards.
- Rack/Tower Convertible Design
- Helps to protects your initial investment in the UPS when migrating from tower to rack-mount environment.
- Automatic Self-Test
- Periodic battery self-test helps to ensure early detection of a battery that needs to be replaced.
- User-Replaceable Batteries
- Helps to increase availability by allowing a trained user to upgrade and replacement the batteries, which helps to reduce Mean Time to Repair (MTTR).
- Audible Alarms
- Provide notification of changing utility power and UPS power conditions.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Scalable Runtime
- Allows additional runtime to be quickly added as needed.
- Automatic Restart of Loads After UPS shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Hot-Swappable Batteries
- Helps to ensure clean, uninterrupted power to protected equipment while batteries are being replaced.
- Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Input Power Factor Correction
- Minimizes installation costs by enabling the use of smaller generators and cabling.
- Generator Compatible
- Helps to ensure clean, uninterrupted power to protected equipment when generator power is used.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Safety-Agency Approved
- The product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Cold-Start Capability
- Provides temporary battery power when the utility power is out.
- Resettable Circuit Breaker
- Provides easy recovery from overloads; no need to replace a fuse.
- Pre-Installed Network Management Card
- The included and pre-installed APC AP9631 Network Card allows for remote management and monitoring of the UPS.
UPC: 731304329978 In the Box APC Smart-UPS SRT 1000VA Rack Mount with Network Management Card (120V) UPS Network Management Card 2 with Environmental Monitoring uzqxsfbwtctdvdtd Limited 3-Year Warranty Limited 2-Year Warranty (Battery) More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SRT 1000VA Rack Mount with Network Management Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Smart-Ups Specs | | | Total Outlets | 6 x NEMA 5-15R | | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P | | USB Charging Ports | None | | SmartSlot Interface | 1 | | Coax Protection | None | | Data Line Protection | RJ45 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Double Conversion | | | | Surge Energy Rating | 432 Joules | | Maximum Wattage | 900 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 80 to 150 VAC | | Input Voltage Adjustable Range | 50 to 150 VAC | | Input Frequency | 50/60 Hz ± 10 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <2% | | Load Capacity | 1000 VA | | Thermal Dissipation | 317 BTU/Hour | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | User Replaceable | Yes | | Replacement Battery | APCRBC155 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Storage Altitude | 0 to 50,000' / 0.00 to 15,240 m | | Noise Level | 50.0 dBA | | Certifications | CSA, ENERGY STAR, FCC, REACH, RoHS, UL, as per Manufacturer | | | | Cable Length | 6' / 1.83 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 3.4 x 20.0" / 43.2 x 8.6 x 50.8 cm | | Weight | 48.5 lb / 22 kg | | | | Package Weight | 67.5 lb | | Box Dimensions (LxWxH) | 29.25 x 23.5 x 9.5" |
