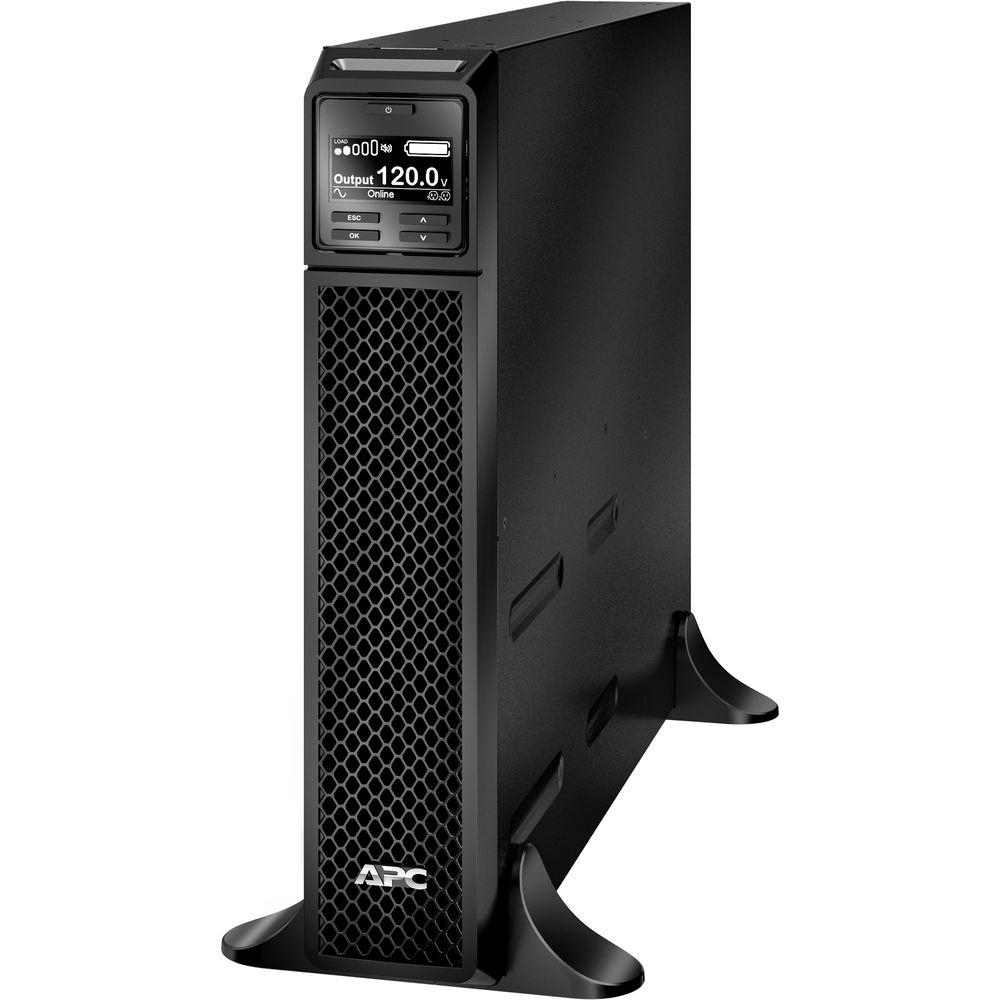

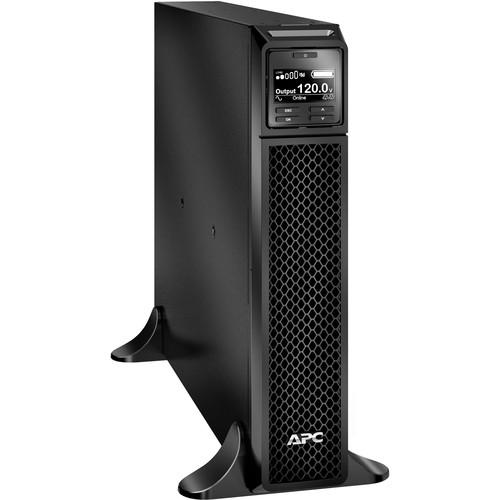

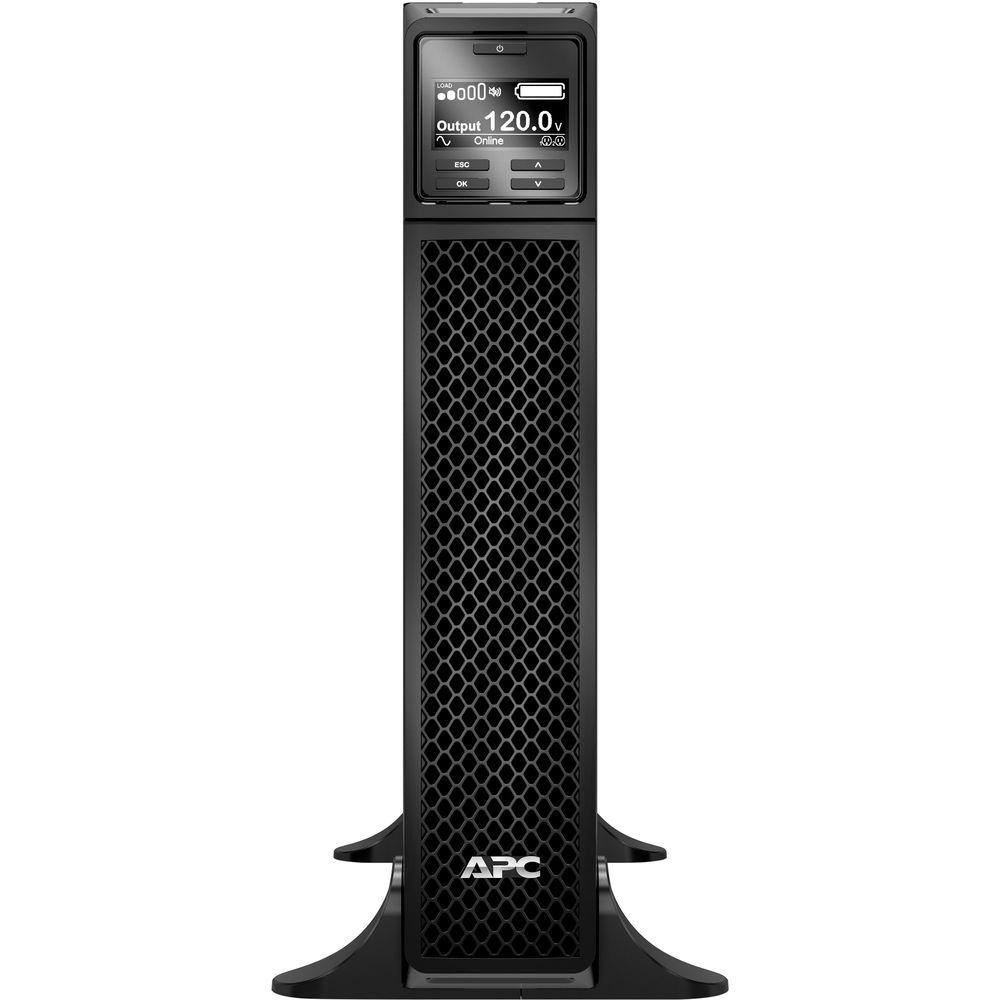

User Manual for APC Smart-UPS SRT 1000VA Rack Tower Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS SRT 1000VA Rack Tower
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS SRT 1000VA Rack Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

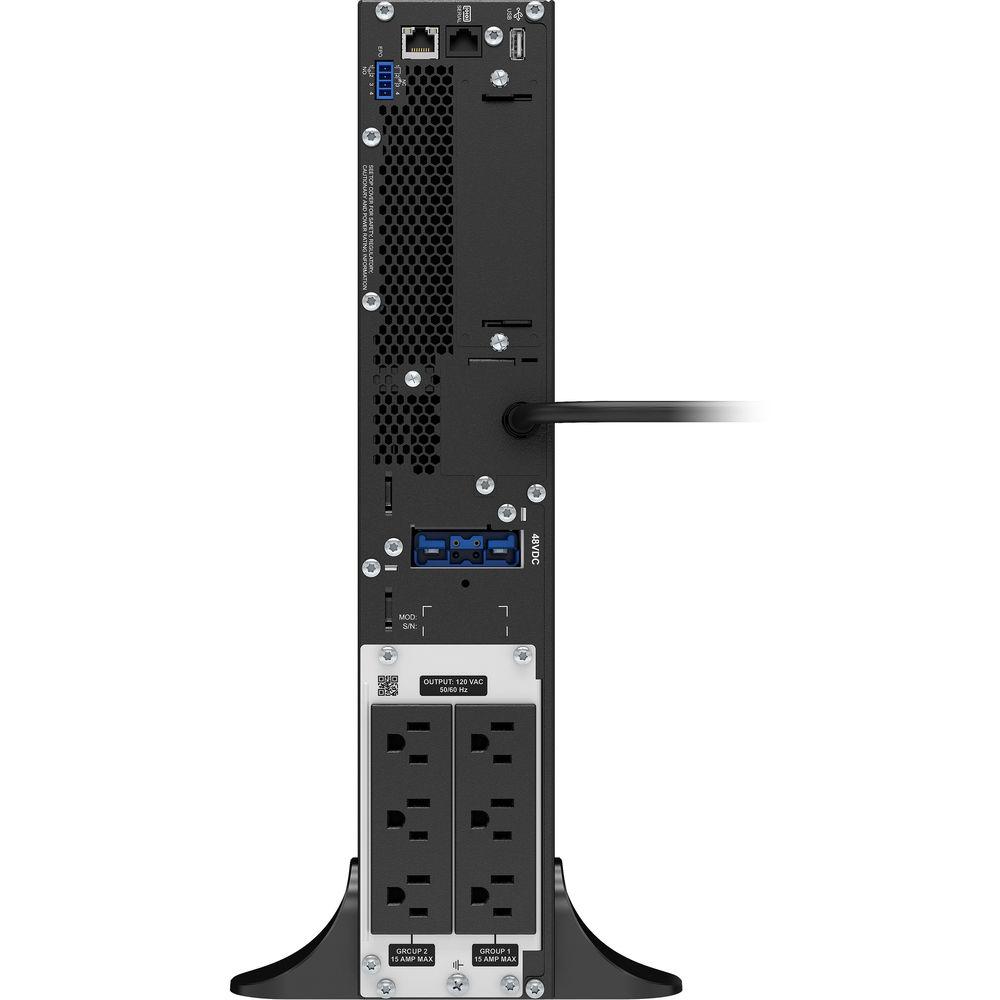

Product description Keep servers and other business-critical equipment running during a power outage with the Smart-UPS SRT 1000VA Rack/Tower (120V) from APC. This rack/tower convertible UPS has an output power capacity of up to 900W and comes equipped with six NEMA 5-15R outlets, RJ45 and USB Type-A management ports, and a SmartSlot interface for adding an optional expansion card. Also featured are cold start-capable and hot-swappable batteries, audible alarms, and an LCD status display. General Features - Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- ECO Mode
- Operating mode that bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
- Graphical LCD Display
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Adaptability - Plug-and-Play External Batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Flash-Upgradeable Firmware
- Install maintenance releases of firmware remotely using FTP.
Serviceability - Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions.
Availability - Scalable Runtime
- Allows additional run time to be quickly added as needed.
- Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
Manageability - SmartSlot
- Customize UPS capabilities with management cards.
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager.
- Network Manageable
- Provides remote power management of the UPS over the network.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
Protection - Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
- Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Input Power Factor Correction
- Minimizes installation costs by enabling the use of smaller generators and cabling.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Generator Compatible
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
UPC: 731304329985 In the Box APC Smart-UPS SRT 1000VA Rack/Tower (120V) Comms Cable Removable Support Feet USB Cable Limited 3-Year Warranty (Excluding Battery) Limited 2-Year Warranty (Battery) More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SRT 1000VA Rack Tower in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SRT 1000VA Specs | | | Total Outlets | 6 x NEMA 5-15R | | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Double Conversion | | | | Surge Energy Rating | 432 Joules | | Maximum Current | 1000 A | | Maximum Wattage | 900 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 50 to 150 VAC | | Input Frequency | 50/60 Hz ± 10 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <2% | | Load Capacity | 1000 VA | | Thermal Dissipation | 317 BTU/Hour | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | User Replaceable | Yes | | Replacement Battery | APCRBC155 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Storage Altitude | 0 to 50,000' / 0.00 to 15,240 m | | Noise Level | 50 dBA | | Certifications | CSA, FCC, REACH, RoHS, UL, as per Manufacturer | | | | Cable Length | 6' / 1.83 m | | Dimensions (W x H x D) | 17.0 x 3.3 x 20.0" / 432.0 x 85.0 x 508.0 mm | | Weight | 48.5 lb / 22 kg |
