User Manual for APC Smart-UPS SRT 2200VA Rack Mount with Network Management Card Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS SRT 2200VA Rack Mount
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS SRT 2200VA Rack Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

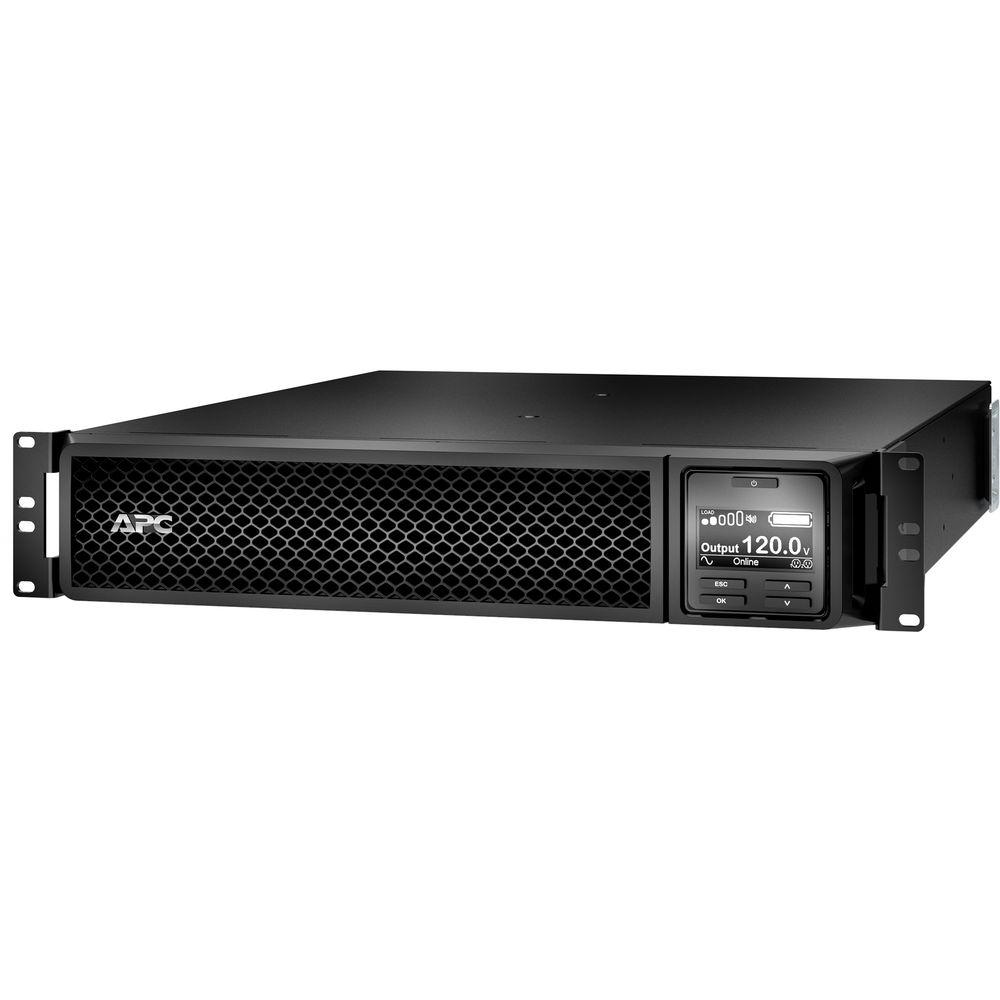

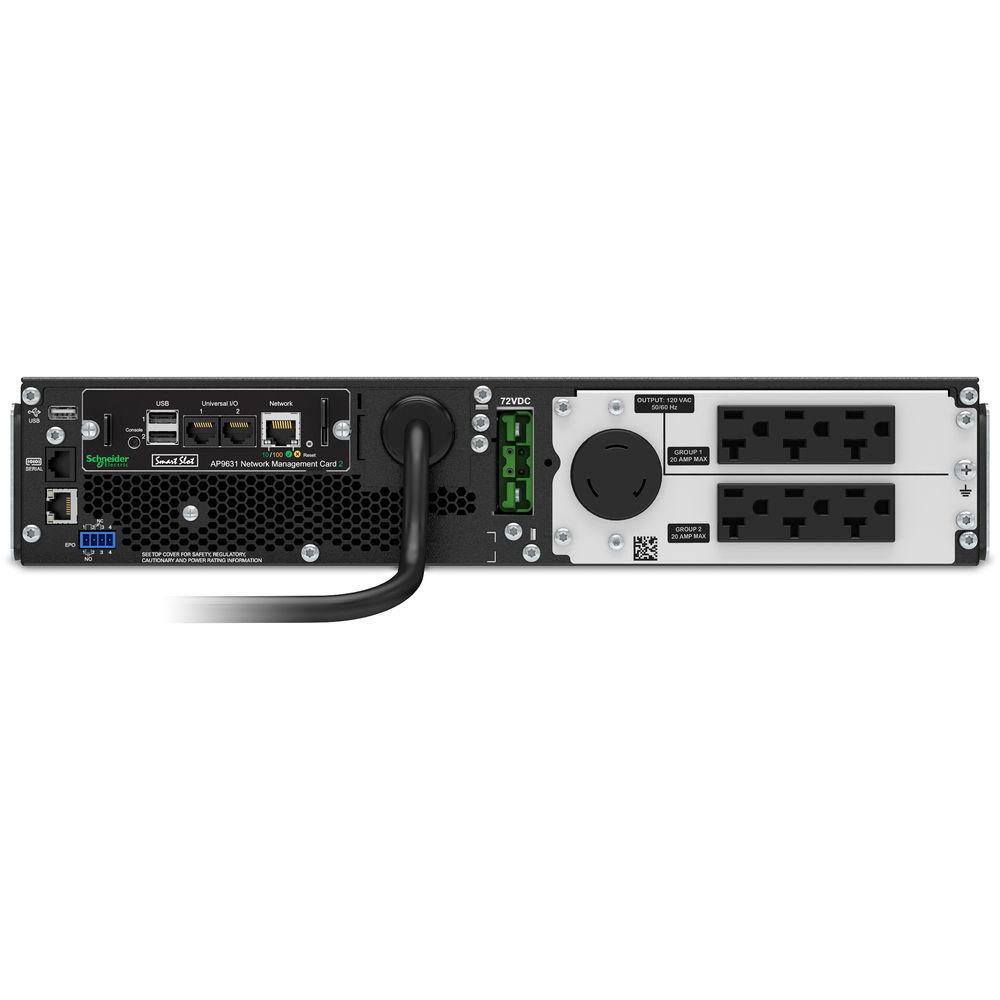

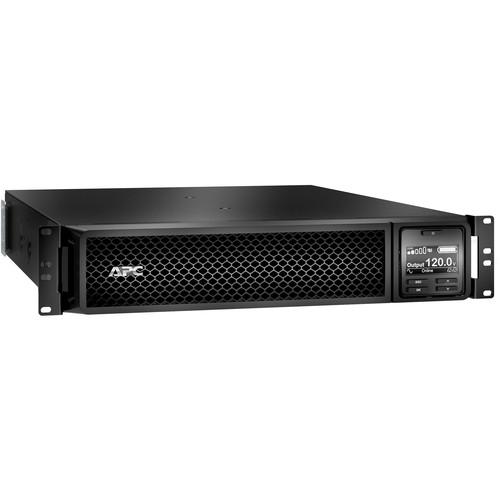

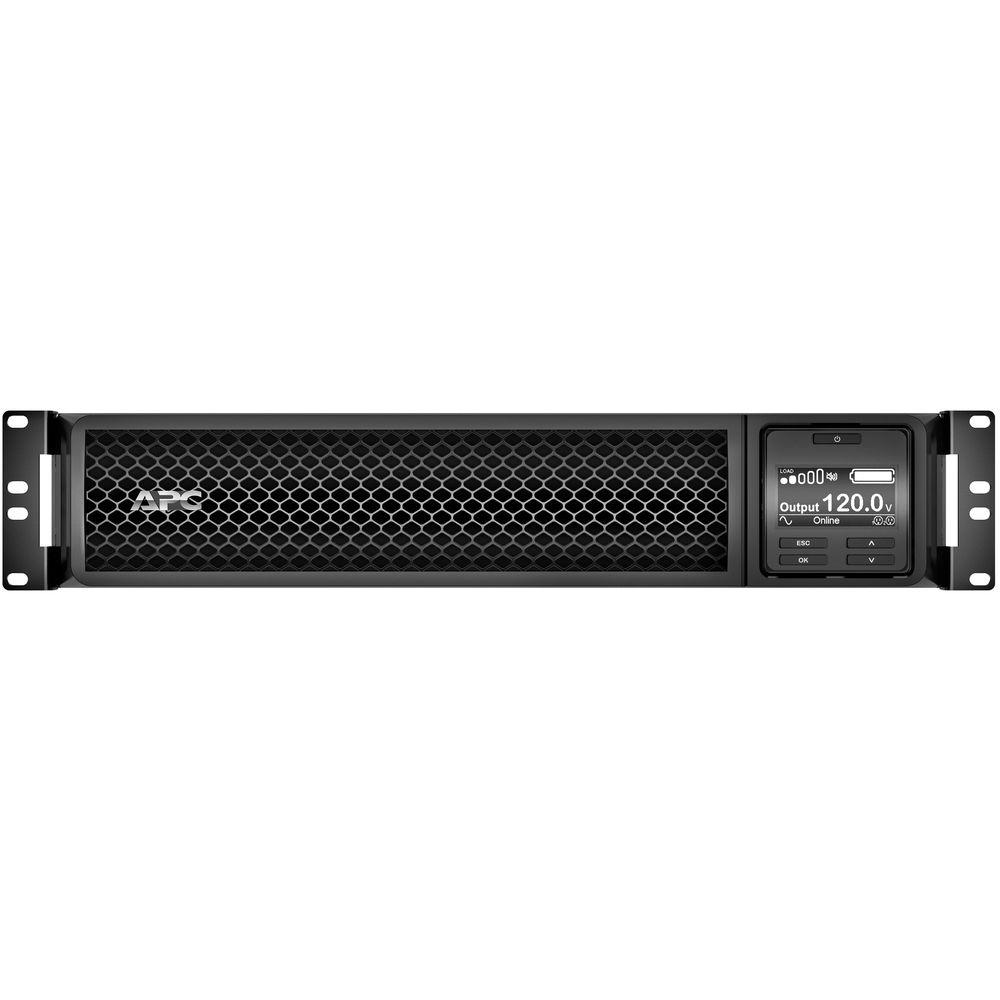

Product description Keep your servers up and running during a power outage with the Smart-UPS SRT 2200VA Rack Mount with Network Management Card. With a maximum power output of up to 1800W / 2200 VA, six NEMA 5-20R outputs, and a NEMA L5-20R output, the Smart-UPS SRT 2200VA RM 120V offers ideal power protection for such applications as mid-range Windows/Linux servers, Wi-Fi applications, data network backbones, medical labs, ATM machines, cellular sites, and other business-critical systems. The rack/tower convertible Smart-UPS SRT 2200VA RM 120V comes with a multi-color backlit LCD status display that shows current load, battery charge, output/input voltage, runtime, and battery health. Also included are Ethernet, serial, USB and SmartSlot interfaces, audible alarms, hot-swappable batteries, an estimated three-hour recharge time, and cold-start functionality. This particular model comes with a pre-installed AP9631 network management card. - Switched Outlet Groups
- Provides the ability to control a group of receptacles independent from the main UPS. This feature allows several options such as the ability to reboot hung devices without cycling the entire UPS, shedding of non-critical loads based on a wide variety of parameters, scheduling time off to conserve energy, and sequenced turn on/off.
- Intelligent Battery Management
- Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform users which batteries need to be replaced in advance and auto detect when additional battery packs are added.
- Graphical LCD
- Multi-color and multi-language backlit LCD changes color when an issue is present, allowing for users to easily identify the UPS status. Information available on the LCD includes load indicator, battery charge, output/input voltage, runtime, load, and battery health. Includes local configuration capability.
- Green/ECO Mode
- Energy-efficient operating mode that bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection. Designed to achieve 97% efficiency, which saves utility and cooling costs without compromising performance or reliability. ENERGY STAR compliant.
- Operate without Battery
- Ability to immediately protect equipment when power returns after a complete discharge of the battery.
- Built-In Energy Meter
- Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.
- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- SmartSlot Interface
- Lets you add a network management card to customize UPS capabilities, as well as manage and monitor the UPS remotely. This particular model comes with a pre-installed AP9631 network management card.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- Automatic Self-Test
- Periodic battery self-test helps to ensures early detection of a battery that needs to be replaced.
- Predictive Failure Notification
- Provides early-warning fault analysis that helps to ensure proactive component replacement.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, reducing Mean Time to Repair (MTTR).
- Serial Connectivity
- Provides management of the UPS via a serial port.
- Network Manageable
- Provides remote power management of the UPS over the network.
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager.
- Plug-and-Play External Batteries
- Helps to ensure clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Flash Upgradeable Firmware
- Allows for remote installation of maintenance releases via FTP.
- PowerChute Software
- Allows for monitoring and control, safe operating system shutdown, and energy management capabilities.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Input Power Factor Correction
- Minimizes installation costs by enabling the use of smaller generators and cabling.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
- Safety-Agency Approved
- Product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Generator Compatible
- Helps to ensure clean, uninterrupted power to protected equipment when generator power is used.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Hot-Swappable Batteries
- Helps to ensure clean, uninterrupted power to protected equipment while batteries are being replaced.
- Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Scalable Runtime
- Allows additional run time to be quickly added as needed.
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Temperature-Compensated Battery Charging
- Designed to prolong battery life by regulating the charge voltage according to battery temperature.
UPC: 731304325154 In the Box APC Smart-UPS SRT 2200VA Rack Mount with Network Management Card (120V) AP9631 Network Card (Pre-Installed) Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails USB Cable Limited 3-Year Warranty (Excluding Battery) Limited 2-Year Warranty (Battery) More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SRT 2200VA Rack Mount with Network Management Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Smart-Ups Specs | | | Total Outlets | 6 x NEMA 5-20R
1 x NEMA L5-20R | | Protected Outlets | 6 x NEMA 5-20R (Battery and Surge)
1 x NEMA L5-20R (Battery and Surge) | | Plug Type | NEMA 5-20P | | SmartSlot Interface | 1 | | Coax Protection | None | | Data Line Protection | RJ45 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Double Conversion | | | | Surge Energy Rating | 340 Joules | | Maximum Wattage | 1800 W | | Nominal Input Voltage | 120 VAC | | Input Frequency | 50/60 Hz ± 10 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <2% | | Load Capacity | 2200 VA | | Thermal Dissipation | 535 BTU/Hour | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | User Replaceable | Yes | | Replacement Battery | APCRBC141 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Storage Altitude | 0 to 50,000' / 0.00 to 15,240 m | | Noise Level | 55.0 dBA | | Certifications | CSA, ENERGY STAR, FCC, REACH, RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.83 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 3.4 x 23.0" / 43.2 x 8.6 x 58.4 cm | | Weight | 55 lb / 24.9 kg | | | | Package Weight | 73.75 lb | | Box Dimensions (LxWxH) | 32.15 x 23.75 x 9.75" |
