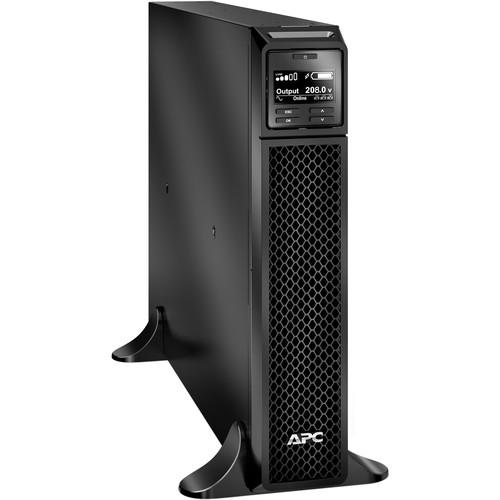

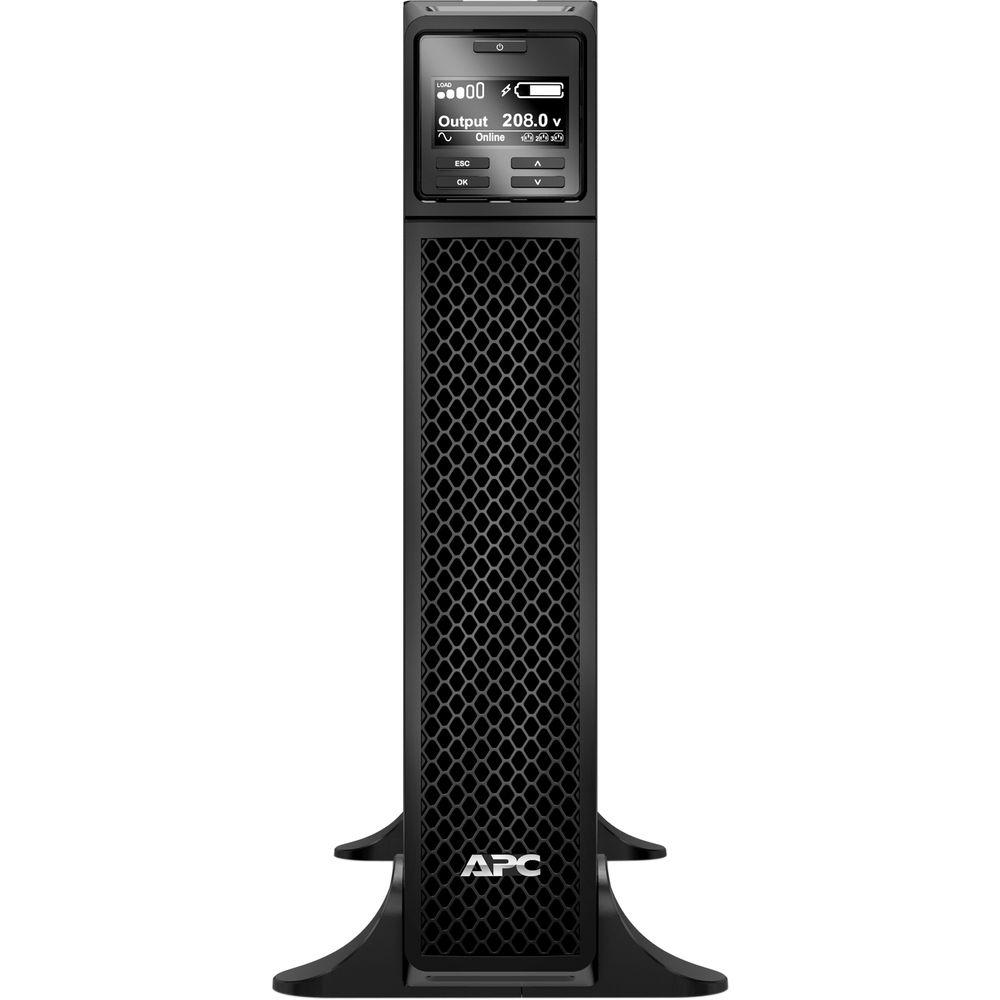

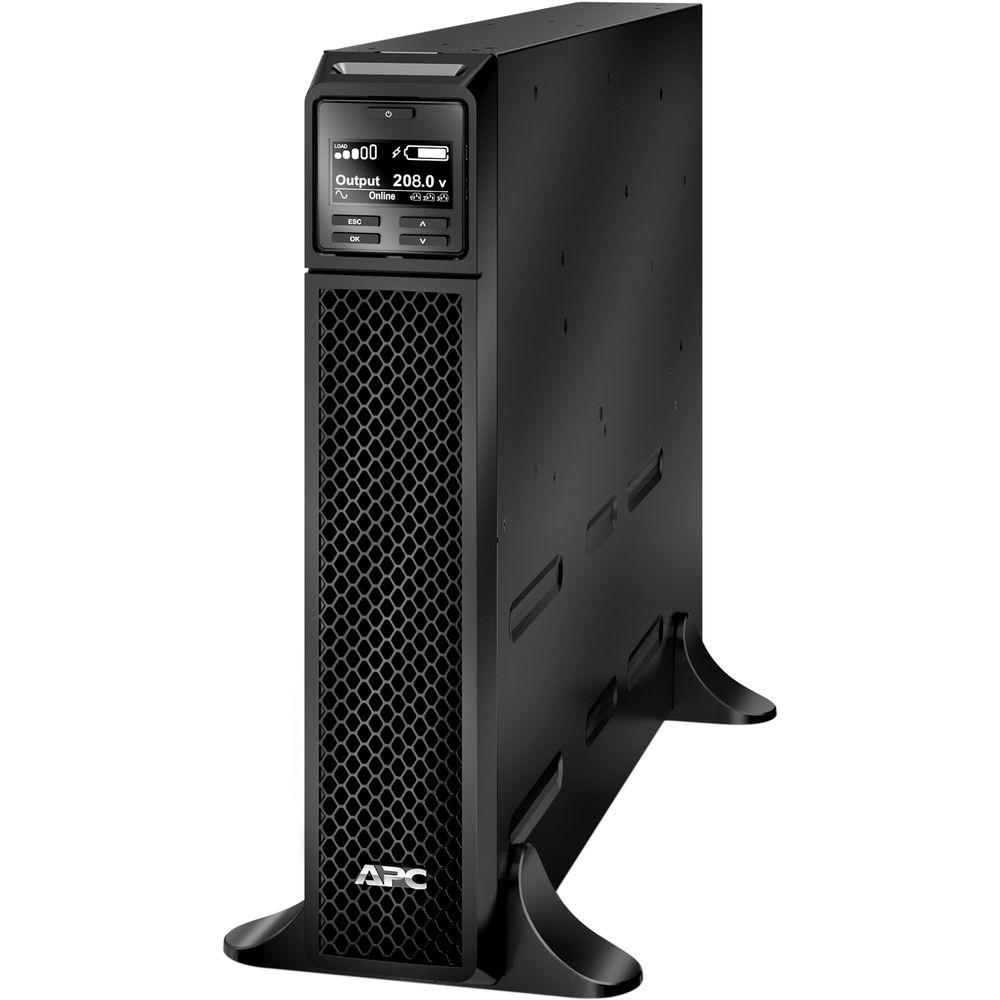

User Manual for APC Smart-UPS SRT 3000VA Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS SRT 3000VA
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS SRT 3000VA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Provided by third party: Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
- Key Features
-
- Green mode
- Battery failure notification
- LCD graphics display
- ECO Mode
- Rack/Tower convertible
- Green mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
- Battery failure notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters and alarms
- ECO Mode
- Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Rack/Tower convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment
UPC: 731304317685 In the Box APC Smart-UPS SRT 3000VA (208V) CD with software, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SRT 3000VA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

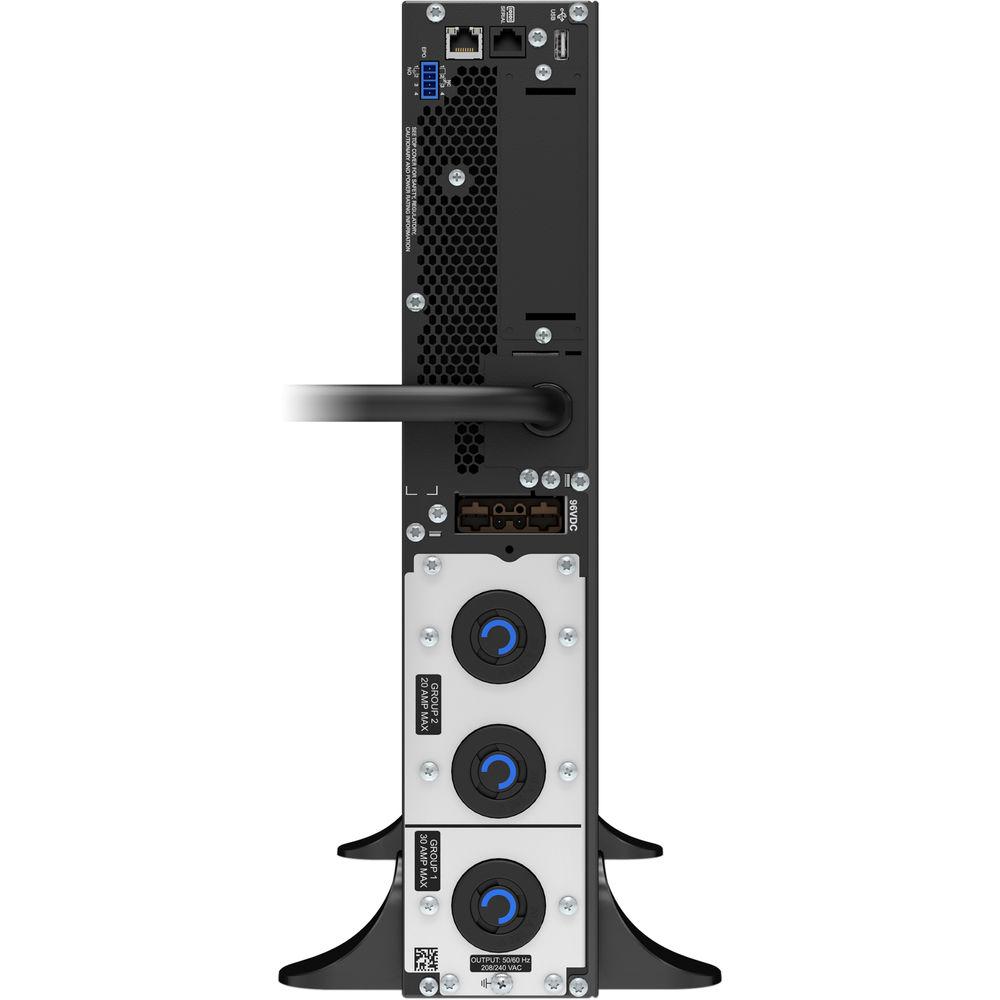

Technical parametersAPC SRT 3000VA Specs | | | Device Type | UPS - external | | Color | Black | | | | UPS Technology | On-line | | Input Voltage | AC 208/240 V | | Input voltage range | AC 160 - 275 V | | Input Voltage Range (Adjustable) | AC 100 - 275 V | | Frequency Provided | 50/60 Hz | | Frequency Required | 40 - 70 Hz | | Input Connectors | 1 x power NEMA L6-20 | | Power Output Connectors Details | 2 x power NEMA L6-20
1 x power NEMA L6-30 | | Output Voltage | AC 208/240 V 50/60 Hz | | Power Capacity | 2700 Watt / 3000 VA | | Output Waveform | Sinewave | | Surge Suppression | Yes | | Surge Energy Rating | 340 Joules | | Efficiency | 92.7% at 100% Load | | | | Technology | Lead acid | | Run Time (Up To) | 3.8 min at full load
11.4 min at half load | | Recharge Time | 3 hours | | Features | Maintenance free, sealed, leak-proof | | | | Remote Management Interface | USB | | | | Interfaces | 1 x serial - RJ-45
1 x EPO (emergency power off)
1 x management (USB) - 4 pin USB Type A | | Expansion Slots | 1 (total) / 1 (free) x SmartSlot | | | | Included Accessories | Vertical stand | | Features | Audible alarm, LCD display, internal bypass, Eco-Mode | | Compliant Standards | cUL, UL 1778, RoHS, FCC Part 15 A, REACH, IP20 | | | | Software Included | Drivers & Utilities | | | | Service & Support | Limited warranty - 3 years
Limited warranty - batteries - 2 years | | | | Min Operating Temperature | 32
