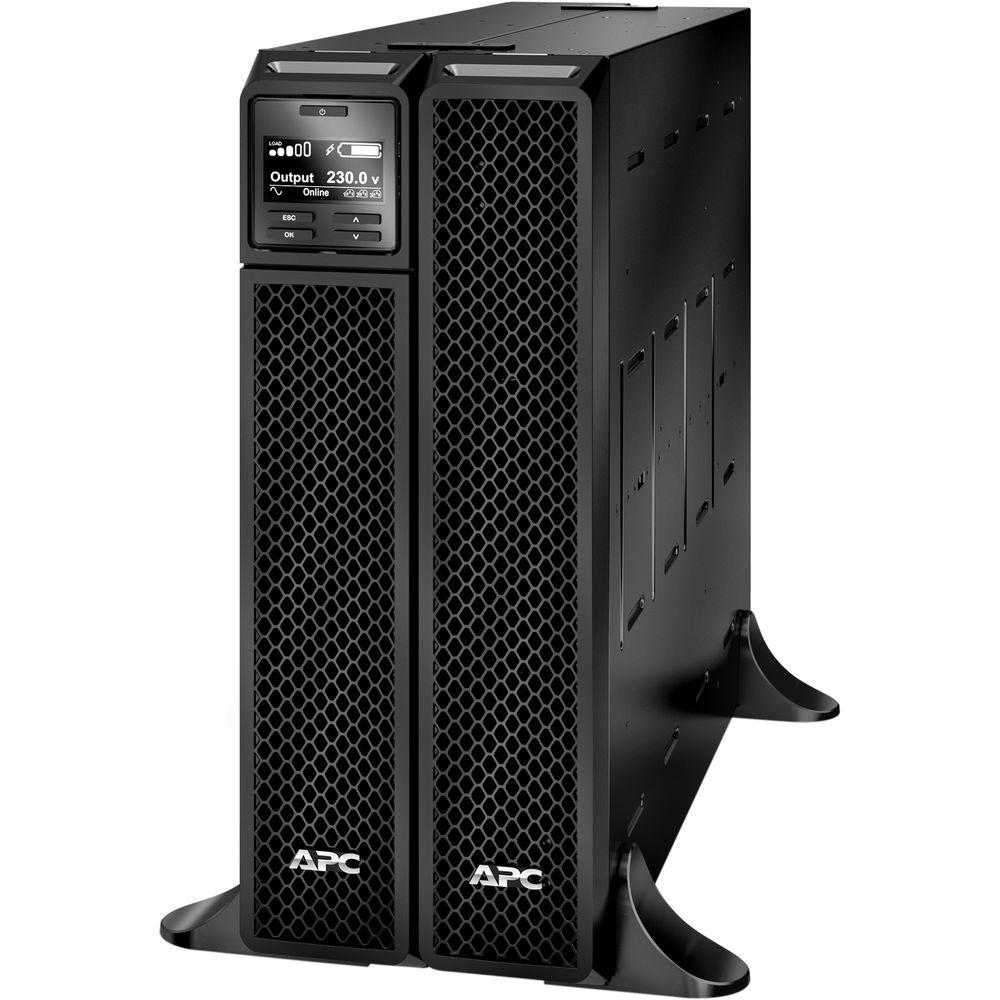

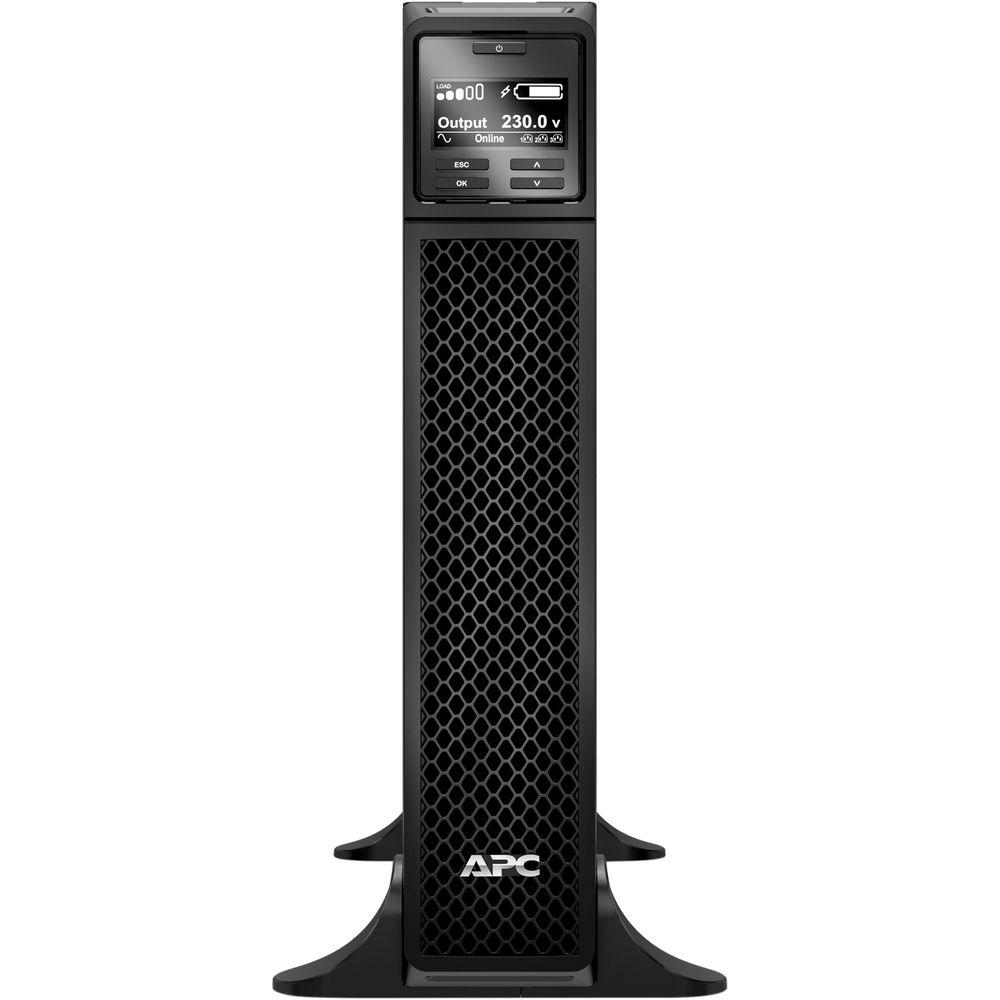

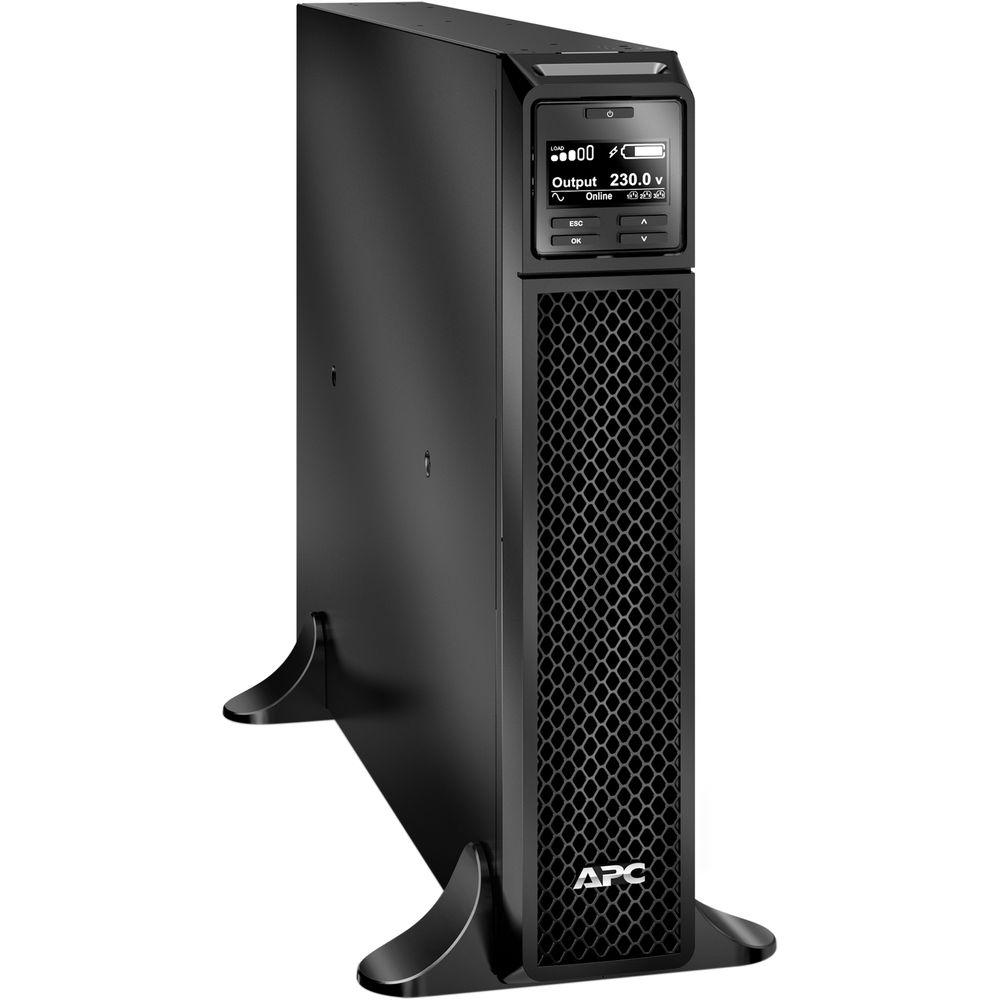

Product description The Smart-UPS SRT Battery Backup from APC provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. To meet the demands of business-critical systems, this Smart-UPS can be configured with up to four external battery packs to meet more aggressive runtime demands. Additionally, included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems.

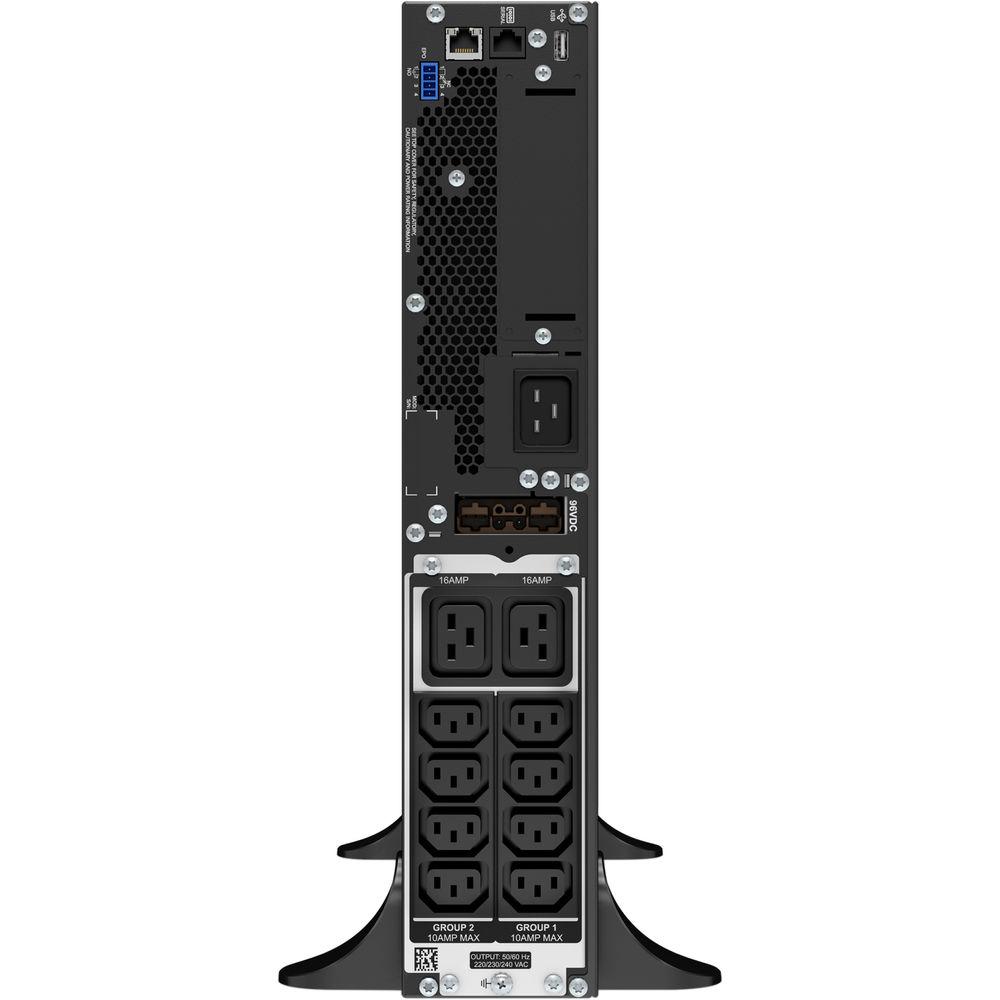

APC has built this Smart-UPS SRT with an output of 3000 VA / 2700W, an input range of 100-275 VAC @ 40-70 Hz, eight IEC 320 C13 outputs, two IEC 320 C19 outputs, two IEC jumper (battery backup) inputs, British BS1363A, IEC-320 C20, and Schuko CEE 7/EU1-16P input connections, a surge energy rating of 340 joules, and a sine waveform. The built-in APCRBC152 battery is a country-specific detachable power cord, removable support feet, and a USB cable. Support is provided by a limited 3-year repair or replace warranty that excludes the battery, as well as a limited 2-year battery warranty. General Features - UPS Half/Full Loads
- Internal Battery - 11.8/4.0 minutes
- Remote Accessibility
- Network manageable via serial, USB, or Ethernet. Includes Powerchute Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and energy management capabilities.
- Low Operating and Maintenance Costs / Intelligent Battery Management.
- Intelligent battery management helps maximize battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests help insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, and hot-swappable battery modules provide battery replacement without powering down.
- Keep IT Equipment and Data Protected & Available
- Network grade power conditioning helps protect against damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to batteries during power events.
- Equipment Compatibility
- Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy your Smart-UPS with confidence that it meets or exceeds the industry standards.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries, enabling timely preventive maintenance
- ECO Mode
- Operating mode that bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
- Green Mode
- Operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- LCD Graphics Display
- Text and mimic diagrams that display modes of operation, system parameters, and alarms.
- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Availability - Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Scalable Runtime
- Allows additional run time to be quickly added as needed.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Manageability - LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- SmartSlot
- Customize UPS capabilities with management cards.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager.
- Network Manageable
- Provides remote power management of the UPS over the network.
Protection - Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Input Power Factor Correction
- Minimizes installation costs by enabling the use of smaller generators and cabling.
- Generator Compatible
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
Adaptability - Flash Upgradeable Firmware
- Install maintenance releases of firmware remotely using FTP.
- Plug-and-Play External Batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Serviceability - Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, thus reducing the Mean Time to Repair (MTTR).
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Predictive Failure Notification
- Provides early-warning fault analysis, ensuring proactive and component replacement.
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions.
UPC: 731304317678 In the Box APC Smart-UPS SRT Detachable Power Cord (County-Specific) Removable Support Feet USB Cable Limited 2-Year Battery Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SRT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SRT 3000VA Specs | | | Total Outlets | 10 | | Protected Outlets | 8 x IEC-320 C13 (Battery and Surge)
2 x IEC-320 C19 (Battery and Surge) | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | Yes | | Topology | Double Conversion | | | | Maximum Wattage | 2700 W | | Input Voltage Range | 220 to 240 VAC | | Input Voltage Adjustable Range | 100 to 275 VAC | | Input Frequency | 50/60 Hz ± 10 Hz (Auto Sensing) | | Nominal Output Voltage | 230 VAC | | Output Voltage Range | 220 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <2% | | Load Capacity | 3000 VA | | Maximum Efficiency | 97% | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Full-Load Runtime | 4 Minutes | | Half-Load Runtime | 11.8 Minutes | | Charging Time | 3 Hours | | Replacement Battery | APCRBC152 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 3.3 x 25.0" / 43.2 x 8.5 x 63.5 cm | | Weight | 69.0 lb / 31.3 kg | | | | Package Weight | 80.7 lb | | Box Dimensions (LxWxH) | 34.0 x 23.0 x 9.0" |
