User Manual for APC Smart-UPS SRT 6000VA Rackmount Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS SRT 6000VA Rackmount
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS SRT 6000VA Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

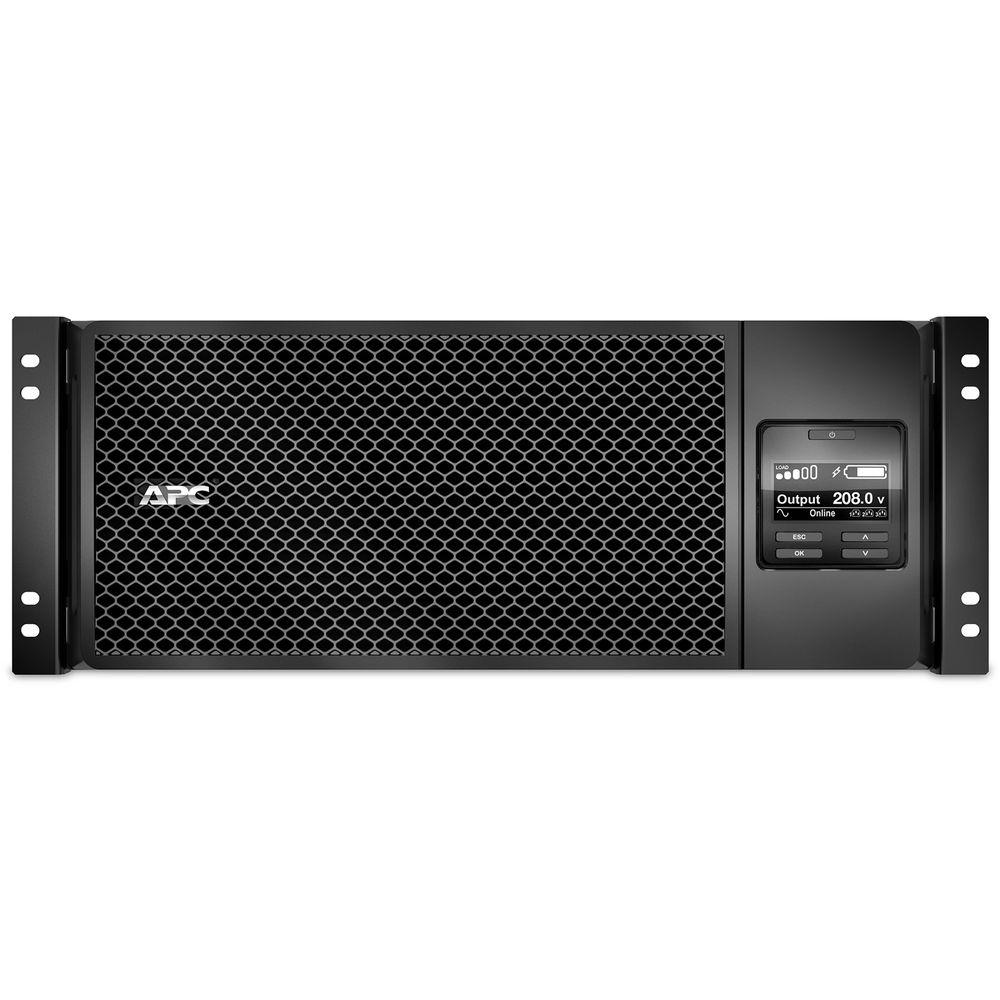

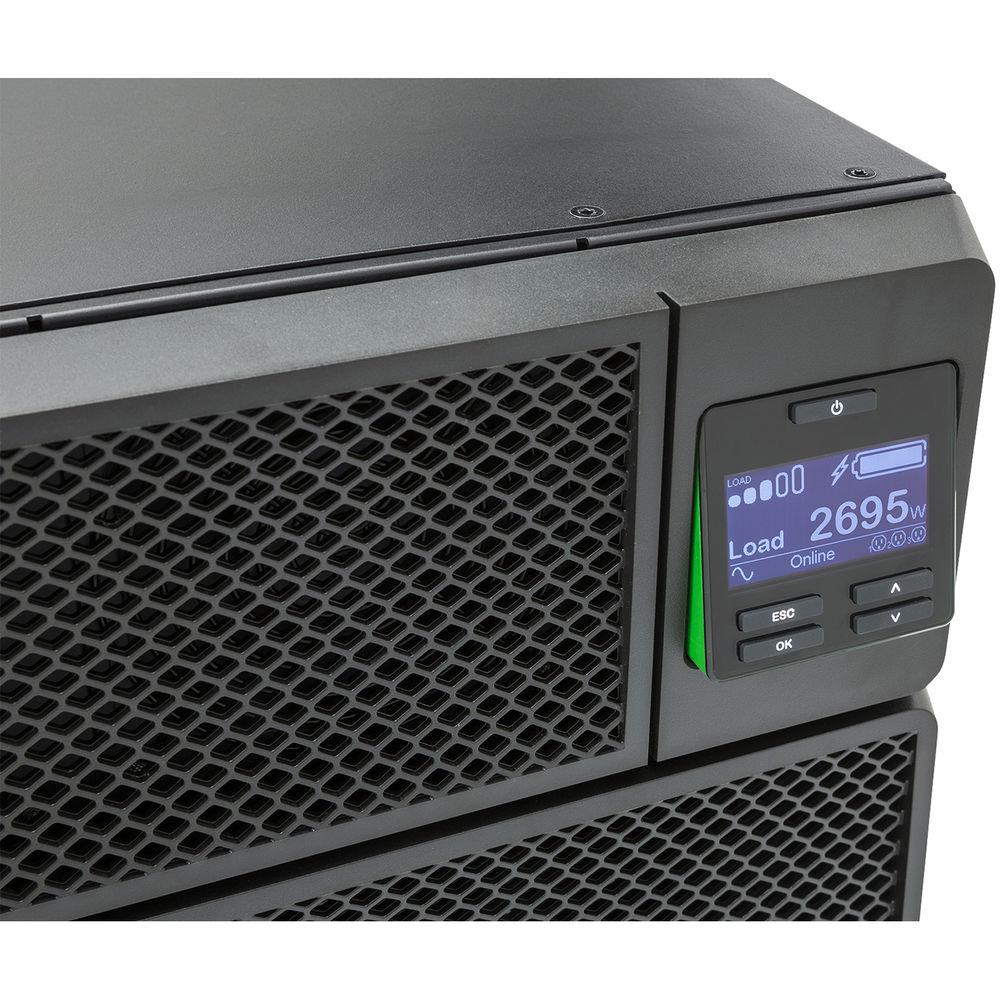

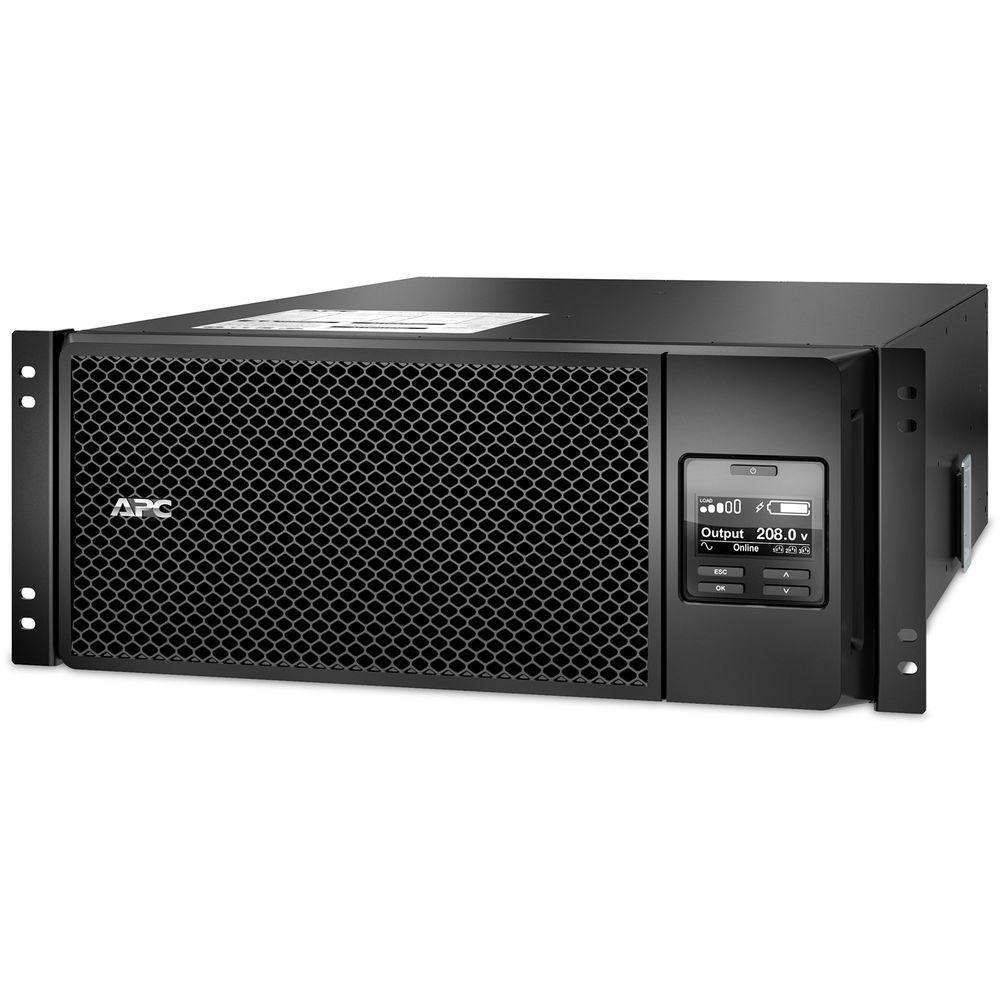

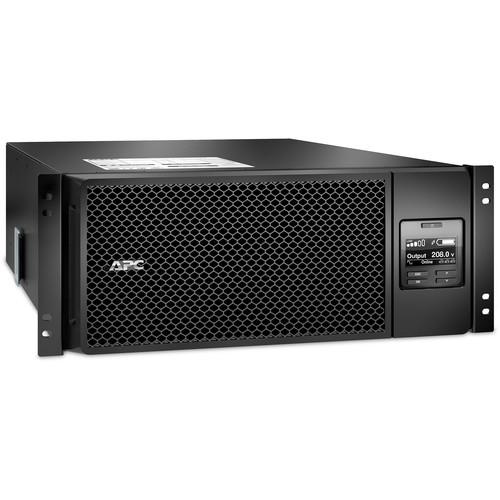

Product description Keep your servers up and running during a power outage with the Smart-UPS SRT 6000VA RM 208V from APC. With a total power output of 6000W, a hardwire (three-wire 2PH + G) input and output, two NEMA L6-20R outlets, and three NEMA L6-30R outlets, the Smart-UPS SRT 6000VA RM 208V offers ideal power protection for servers, voice and data networks, and other business-critical systems. The rack/tower convertible Smart-UPS SRT 6000VA RM 208V comes with an LCD status display that shows operating modes, system parameters, and alarms. Also included are Ethernet, serial, USB and SmartSlot interfaces, audible alarms, hot-swappable batteries, a 1.5-hour recharge time, cold-start functionality, and an integrated Web/SNMP management card. - LCD Graphics Display
- Includes text and mimic diagrams that detail modes of operation, system parameters, and alarms.
- 10/100 BASE-T Connection
- Connect the device to a network using a 10/100 BASE-T connection.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries, enabling timely preventive maintenance.
- Green Mode
- Energy-efficient mode designed to bypass unused electrical components in good power conditions to boost operating efficiency without sacrificing protection.
- Hardwire Input
- UPS requires a hardwire input in order to deliver maximum output wattage to protected equipment.
- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Scalable Runtime
- Allows additional runtime to be quickly added as needed.
- Intelligent Battery Management
- Designed to maximizes battery performance, life, and reliability through intelligent, precision charging.

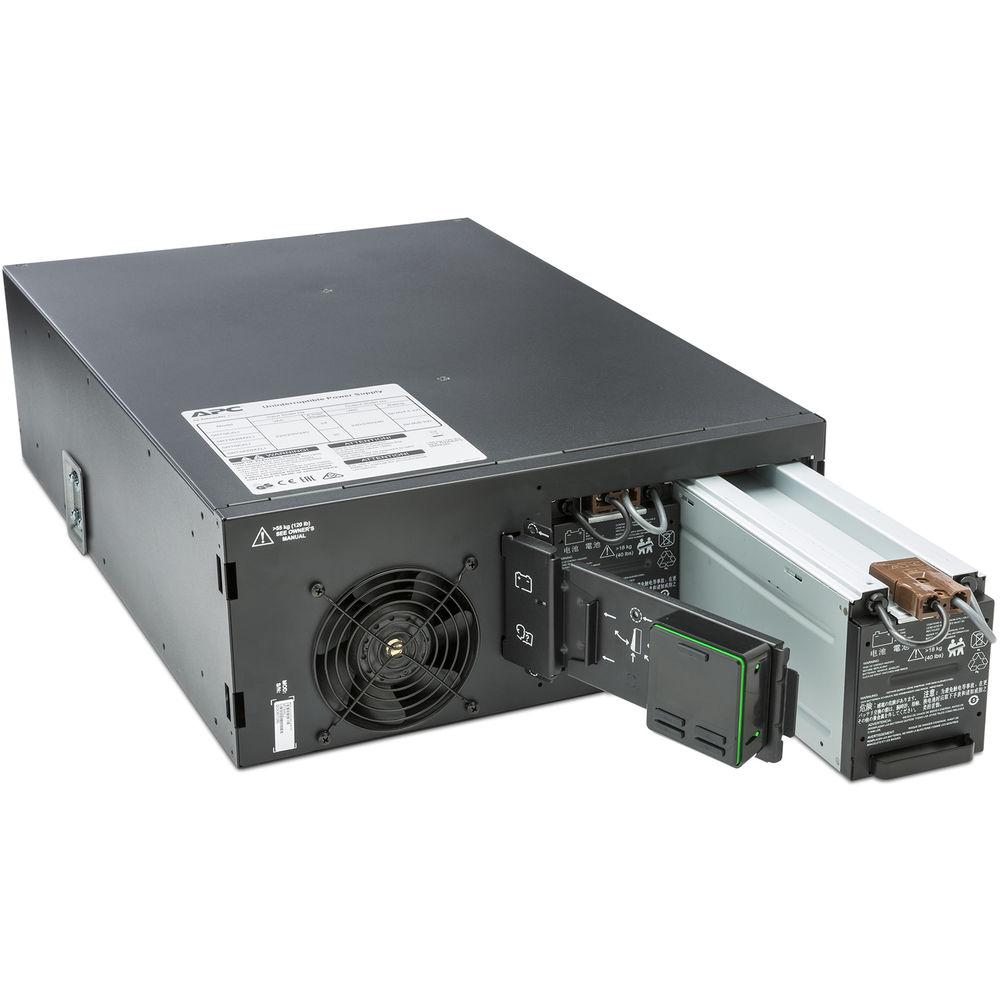

- Hot-Swappable Batteries
- Helps to ensure clean, uninterrupted power to protected equipment while batteries are being replaced.
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Network Manageable
- Provides remote power management of the UPS over the network via serial, USB, or Ethernet. Includes PowerChute Software for monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager.
- SmartSlot Interface
- Allows customization of UPS capabilities with management cards. A web/SNMP management card is included.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- Plug-and-Play External Batteries
- Helps to ensure clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Flash-Upgradeable Firmware
- Allows for remote installation of firmware maintenance releases via FTP.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions.
- Frequency and Voltage Regulation
- Allows for higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Input Power Factor Correction
- Minimizes installation costs by enabling the use of smaller generators and cabling.
- Generator Compatible
- Helps to ensure clean, uninterrupted power to protected equipment when generator power is used.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
- Safety-Agency Approved
- Product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Double-Conversion Architecture
- Provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events.
UPC: 731304308522 In the Box APC Smart-UPS SRT 6000VA Rackmount (208V) Web/SNMP Management Card Rack Mounting Brackets, Hardware, and Support Rails USB Cable Temperature Probe Limited 3-Year Warranty (Excluding Battery) Limited 2-Year Warranty (Battery) More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SRT 6000VA Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

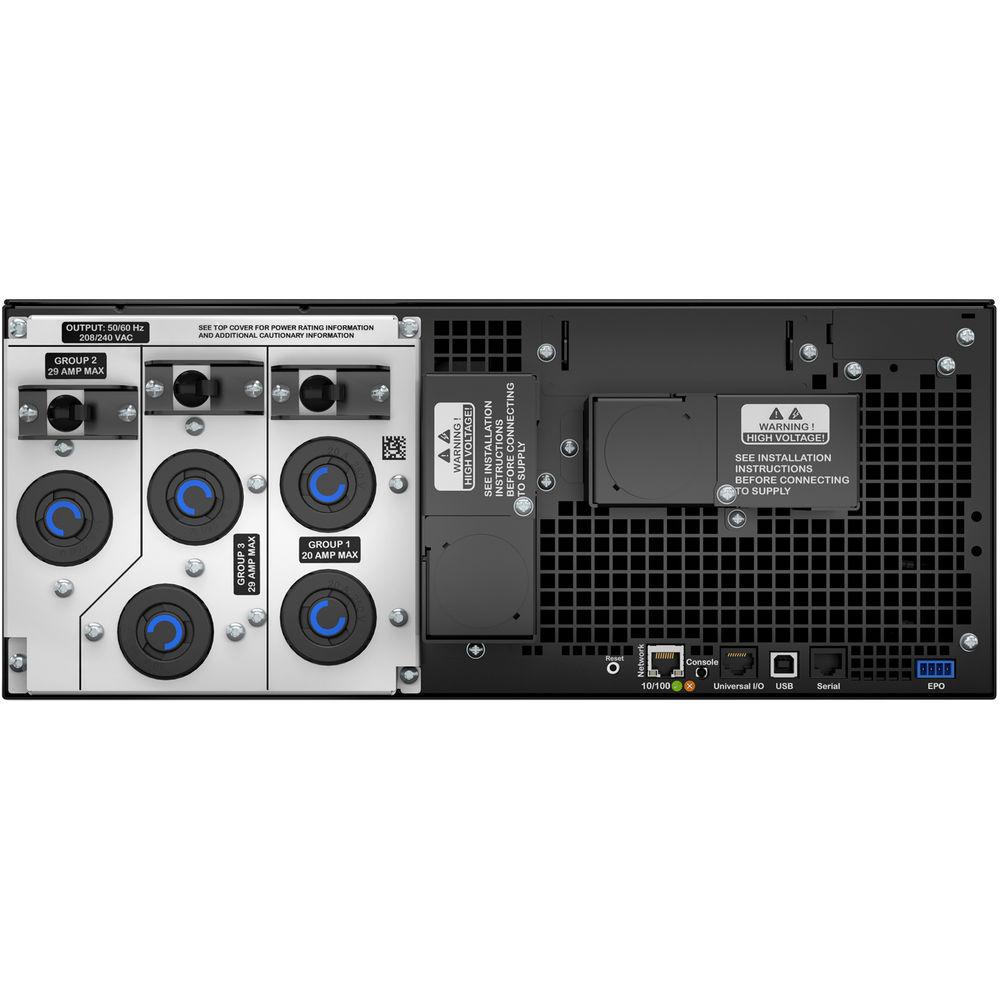

Technical parametersAPC Smart-Ups Specs | | | Total Outlets | 2 x NEMA L6-20R
3 x NEMA L6-30R | | Protected Outlets | 2 x NEMA L6-20R (Battery and Surge)
3 x NEMA L6-30R (Battery and Surge) | | USB Charging Ports | None | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Double Conversion | | | | Surge Energy Rating | 480 Joules | | Maximum Wattage | 6000 W | | Nominal Input Voltage | 208 VAC | | Input Voltage Range | 160 to 275 VAC | | Input Frequency | 50/60 Hz ± 5 Hz (Auto Sensing) | | Nominal Output Voltage | 208 VAC | | Output Voltage Range | 208 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <2% | | Load Capacity | 6000 VA | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 1.5 Hours | | User Replaceable | Yes | | Replacement Battery | APCRBC140 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Storage Altitude | 0 to 50,000' / 0.00 to 15,240 m | | Noise Level | 55.0 dBA | | Certifications | CSA, ENERGY STAR, FCC, REACH, RoHS, UL, as per Manufacturer | | | | Rack Form Factor | 4 RU | | Dimensions (W x H x D) | 6.8 x 17.0 x 28.3" / 172.7 x 431.8 x 718.8 mm | | Weight | 135 lb / 61.2 kg |
