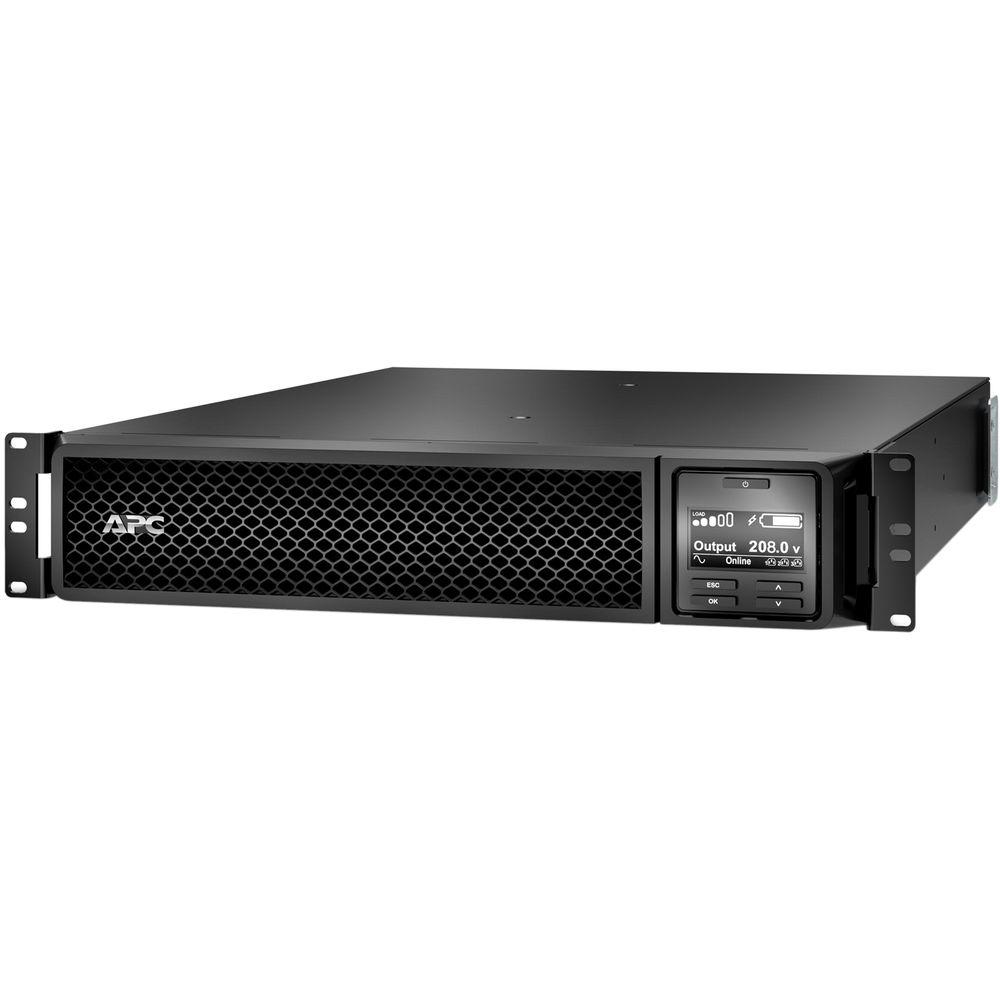

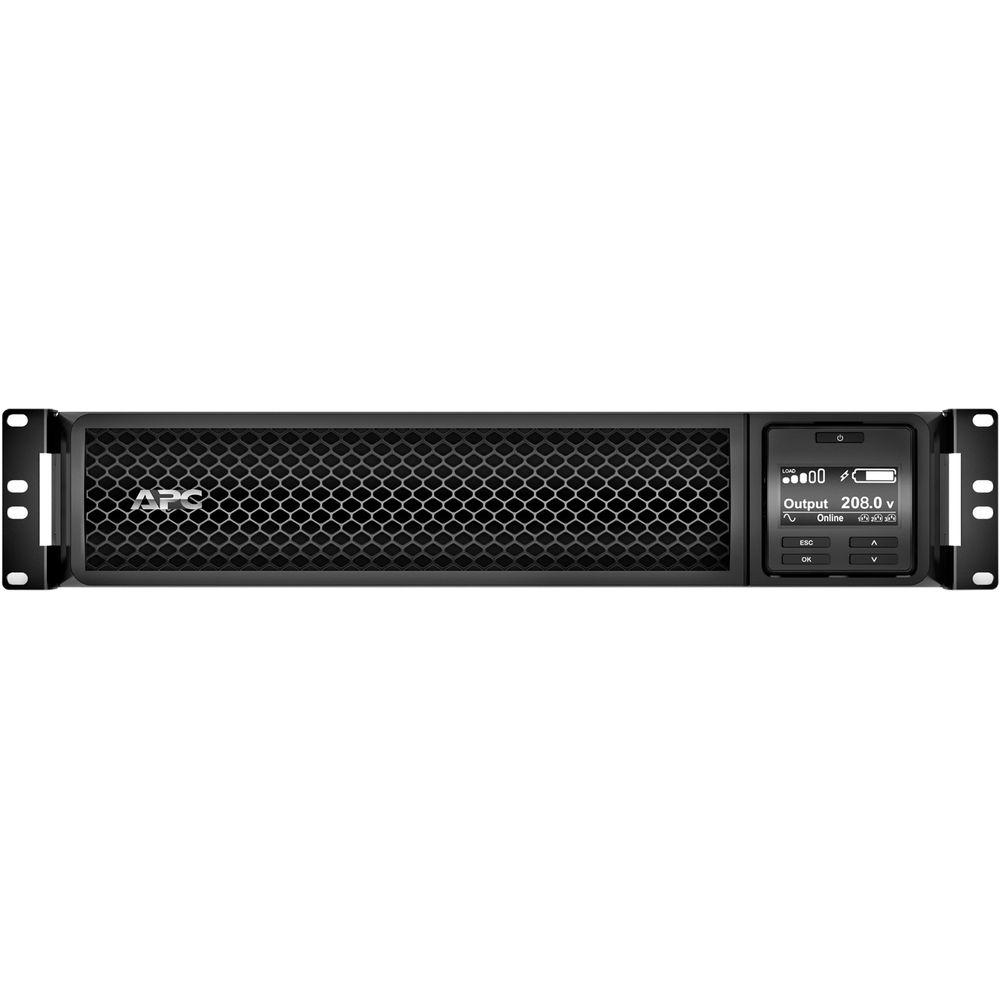

Product description The Smart-UPS Battery Backup SRT 3000 VA RM 208V from APC provides high-density, double-conversion online power protection with scalable runtimes. Network grade power conditioning helps protect against damaging surges and disruptive noises and the double conversion architecture helps provide voltage regulation, frequency regulation, and zero transfer time to the battery during power events. Using intelligent battery management, its battery life is maximized and automatic self-tests not only help ensure reliability, but also warn customers in advance of battery replacement. When it is time to replace the battery, hot-swappable modules let you perform replacement without powering down.

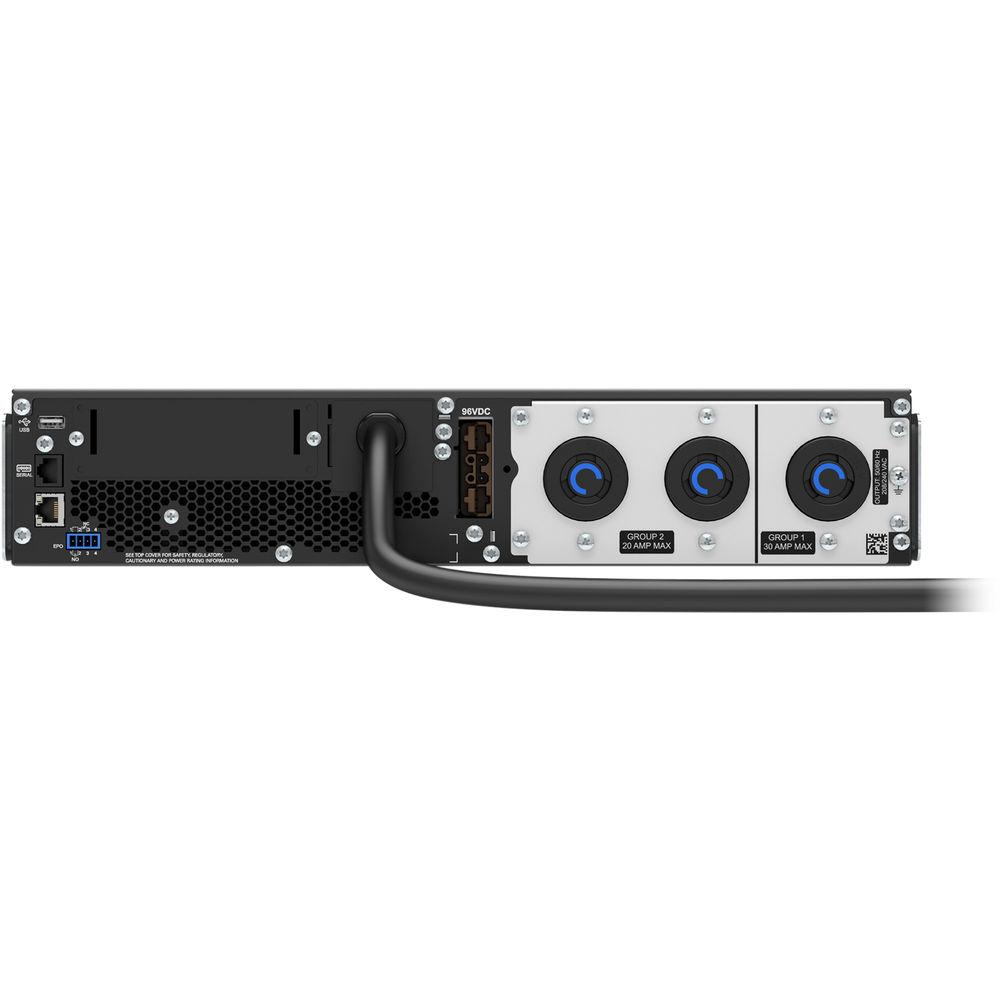

APC's Smart-UPS SRT Battery Backup features an output of 3000 VA / 2700W, an input range of 100-275 VAC @ 40-70 Hz, one NEMA L6-30R output, two NEMA L6-20R outputs, one NEMA L6-20P input, a surge energy rating of 340 joules, a sine waveform, and an LED status display to monitor the system and perform functions as needed. The built-in APCRBC152 battery is hot-swappable and may be recharged in around 3 hours. Included are rack mounting brackets, rack mounting hardware, rack mounting supports rails, and a USB cable. General Features SRT3000RMXLT Features - Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- ECO Mode
- Operating mode that bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- LCD Graphics Display
- Text and mimic diagrams that display modes of operation, system parameters, and alarms.
- Rack/Tower convertible
- Protects the initial investment in the UPS when migrating from tower to rackmount environment.
Smart-UPS Online Features & Benefits Serviceability - Audible Alarms
- Provides notification of changing utility power and UPS power conditions.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
Protection - Generator Compatible
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Input Power Factor Correction
- Minimizes installation costs by enabling the use of smaller generators and cabling.
- Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability - Network Manageable
- Provides remote power management of the UPS over the network.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- SmartSlot
- Customize UPS capabilities with management cards.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager.
Adaptability - Plug-and-Play External Batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Flash Upgradeable Firmware
- Install maintenance releases of firmware remotely using FTP.
Availability - Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent precision charging.
- Scalable Runtime
- Allows additional run time to be quickly added as needed.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Product Distribution
- Anguilla, Netherlands Antilles, Aruba, Barbados, Bermuda, Belize, Canada, Colombia, Costa Rica, Cuba, Dominican Republic, Ecuador, Falkland Islands, Guatemala, Guyana, Honduras, Haiti, Jamaica, Mexico, Nicaragua, Panama, Puerto Rico, El Salvador, Turks and Caicos Islands, Trinidad and Tobago, United States, Venezuela, U.S. Virgin Islands
UPC: 731304317654 In the Box APC Smart-UPS SRT Battery Backup 3000 VA RM 208V Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails USB Cable Limited 2-Year Repair or Replace Warranty (Battery) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS SRT Battery Backup 3000 VA RM 208V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SRT Battery Backup 3000 Specs | | | Total Outlets | 3 | | Protected Outlets | 1 x NEMA L6-30R (Battery and Surge)
2 x NEMA L6-20R (Battery and Surge) | | Plug Type | NEMA L6-20P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | Yes | | Topology | Double Conversion | | | | Surge Energy Rating | 340 Joules | | Maximum Wattage | 2700 W | | Input Voltage Range | 208 to 240 VAC | | Input Voltage Adjustable Range | 100 to 275 VAC | | Input Frequency | 50/60 Hz ± 10 Hz (Auto Sensing) | | Output Voltage Range | 208 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <2% | | Load Capacity | 3000 VA | | Thermal Dissipation | 773 BTU/Hour | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | APCRBC152 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 3.4 x 17.0 x 25.0" / 8.5 x 43.2 x 63.5 cm | | Weight | 69.0 lb / 31.3 kg | | | | Package Weight | 86.15 lb | | Box Dimensions (LxWxH) | 34.5 x 23.3 x 9.8" |
