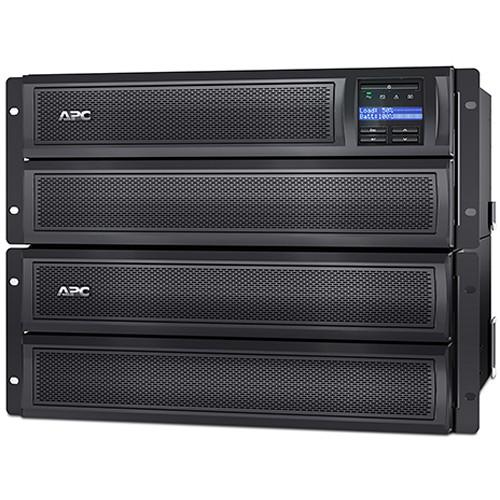

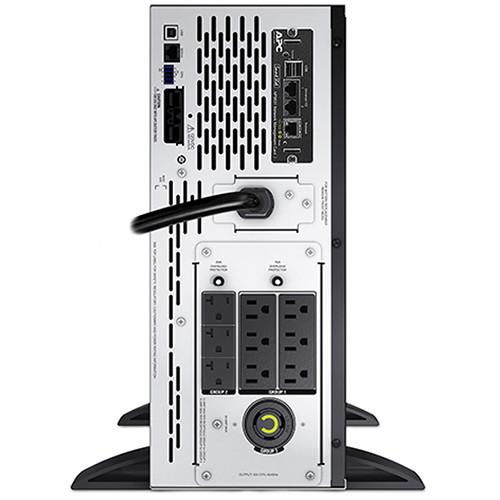

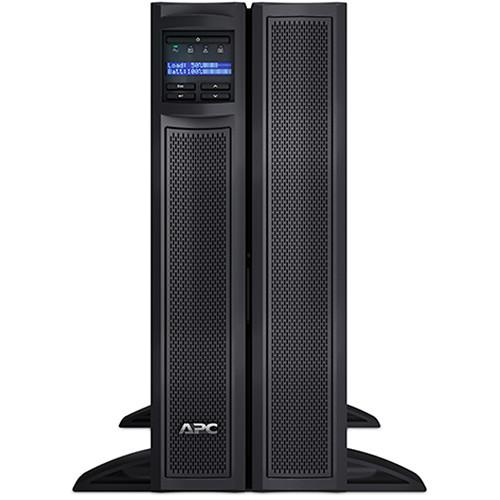

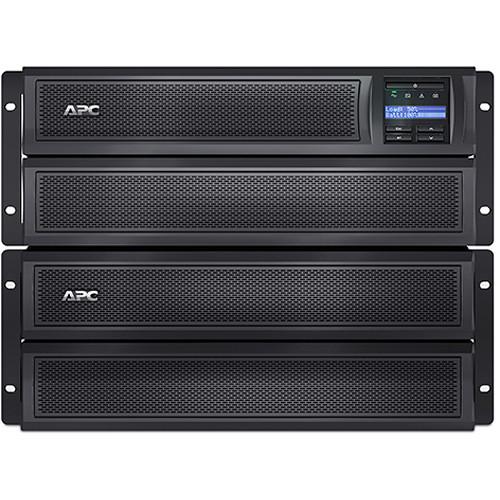

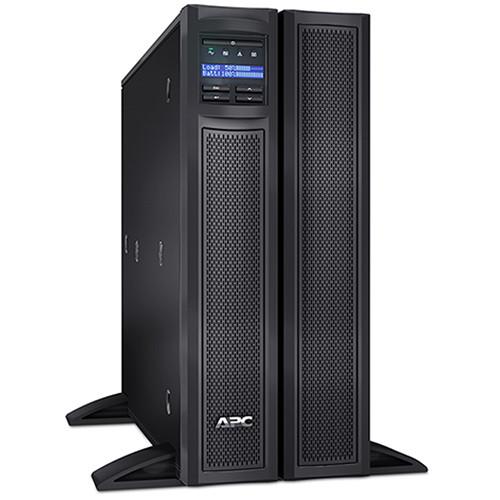

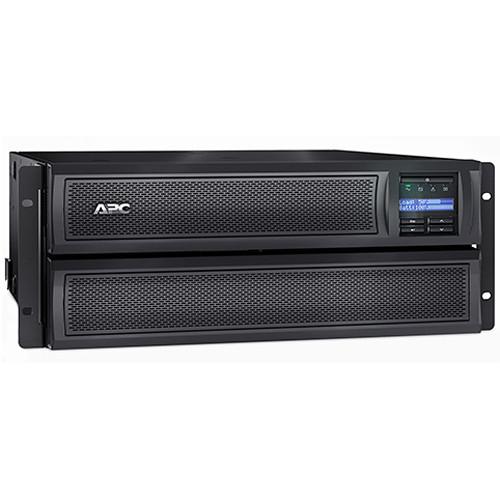

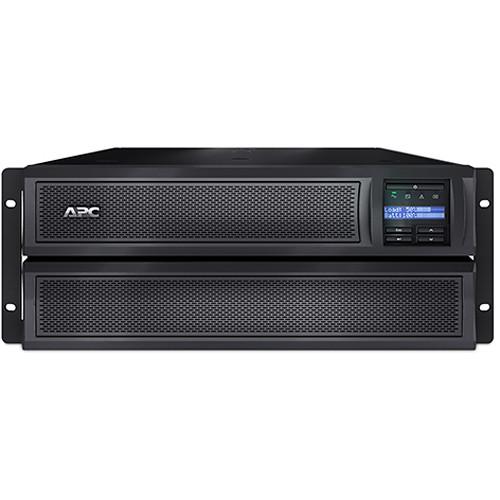

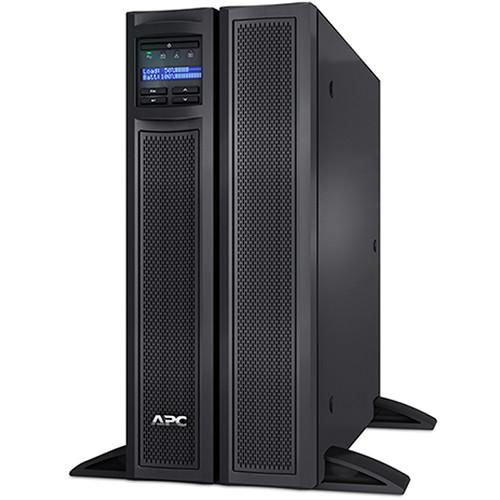

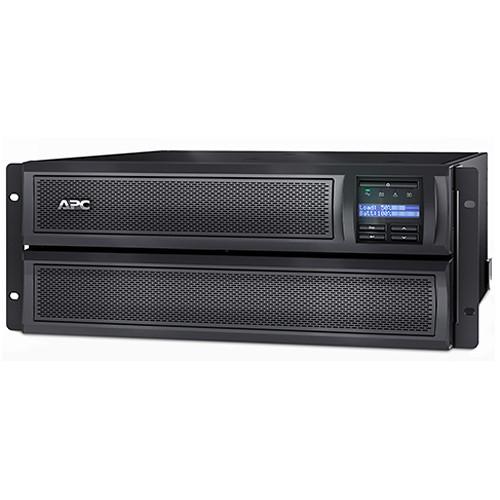

User Manual for APC Smart-UPS X 100-127V Rack Tower with LCD & Network Card Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS X 100-127V Rack Tower
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS X 100-127V Rack Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Provided by third party: Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment. UPC: 731304292654 In the Box APC Smart-UPS X 100-127V Rack/Tower with LCD & Network Card (3000VA) Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card CD with Software Documentation CD Installation Guide Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails Removable Support Feet Smart UPS Signalling RS-232 Cable USB Cable Web/SNMP Management Card Limited 3-Year Warranty More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X 100-127V Rack Tower with LCD & Network Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

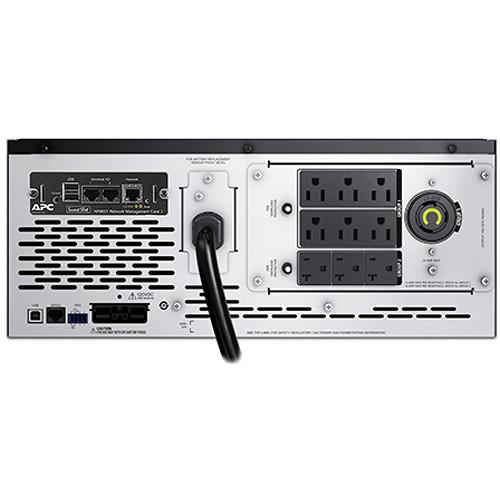

Technical parametersAPC SMX3000LVNC Specs | | | Plug/Connector Type | NEMA L5-30P | | Receptacles | 1 x NEMA L5-30R
3 x NEMA 5-15R
6 x NEMA 5-20R | | Emergency Power Off | Yes | | Switching Time | 4 ms | | | | Load Capacity (VA) | 3000 VA | | Load Capacity (Watt) | 2700 W | | Input Voltage | 110 V AC | | Output Voltage | 120 V AC | | | | Network Management | SNMP Manageable | | | | Number of Batteries | 1 | | Battery Characteristics | Spill-proof, Maintenance-free | | Battery Chemistry | Sealed Lead Acid | | Backup/Run Time (Full Load) | 6 Minute | | Backup/Run Time (Half Load) | 18 Minute | | Maximum Battery Recharge Time | 3 Hour | | Hot Swappable | Yes | | | | Height | 17" | | Width | 7" | | Depth | 19" | | Rack Height | 4U | | Form Factor | Tower/Rack Mountable | | Weight (Approximate) | 85.19 lb | | | | Certifications & Standards | - BSMI
- CSA
- EN 50091-2
- EN 55022 Class A
- FCC Part 15 Class A
- NOM
- TUV
- UL 1778
- VCCI Class A
- UL 1449
| | Environmentally Friendly | Yes | | Environmental Certification | REACH
RoHS | | | | Package Weight | 106.0 lb | | Box Dimensions (LxWxH) | 25.0 x 23.0 x 13.3" |
