User Manual for APC Smart-UPS X 1500VA Rack Tower LCD 120V Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS X 1500VA Rack Tower
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS X 1500VA Rack Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

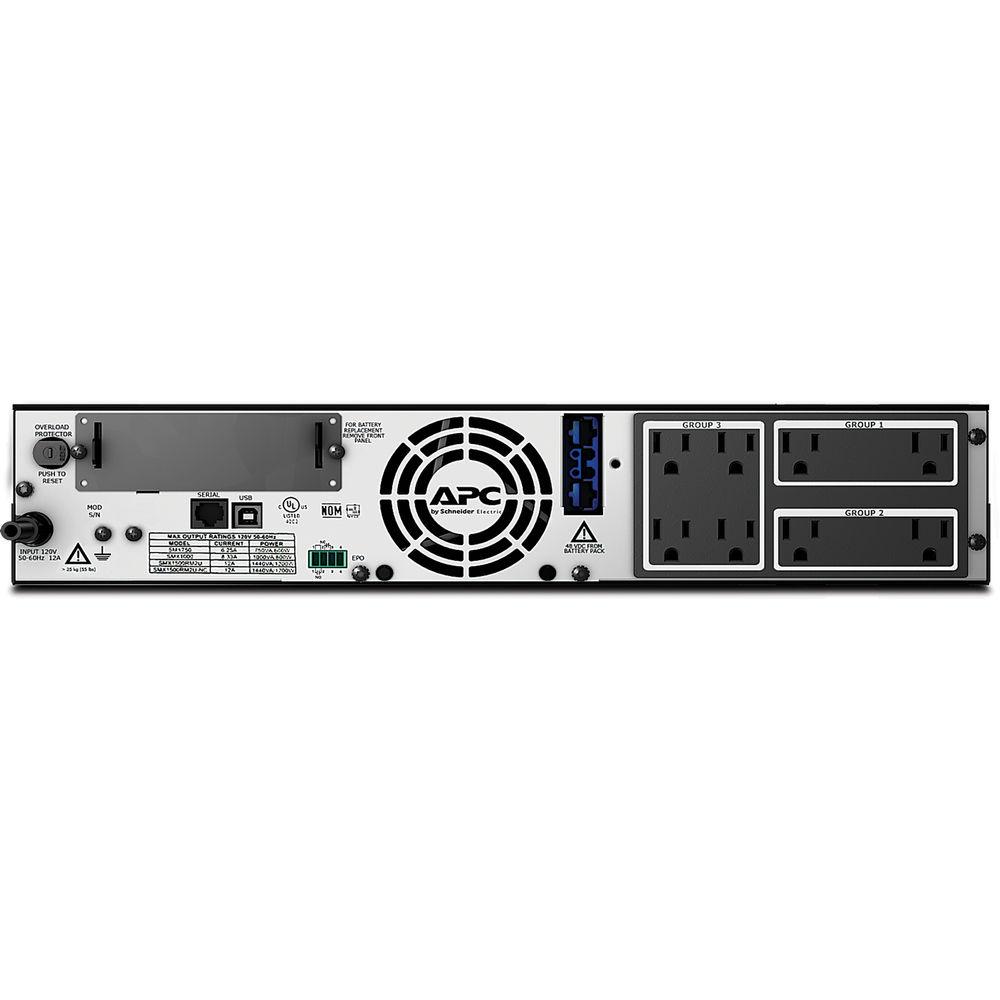

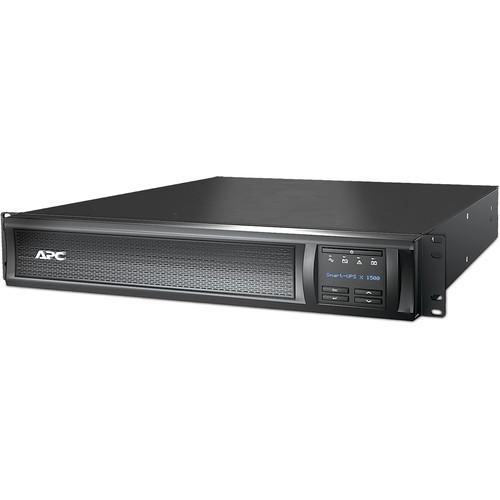

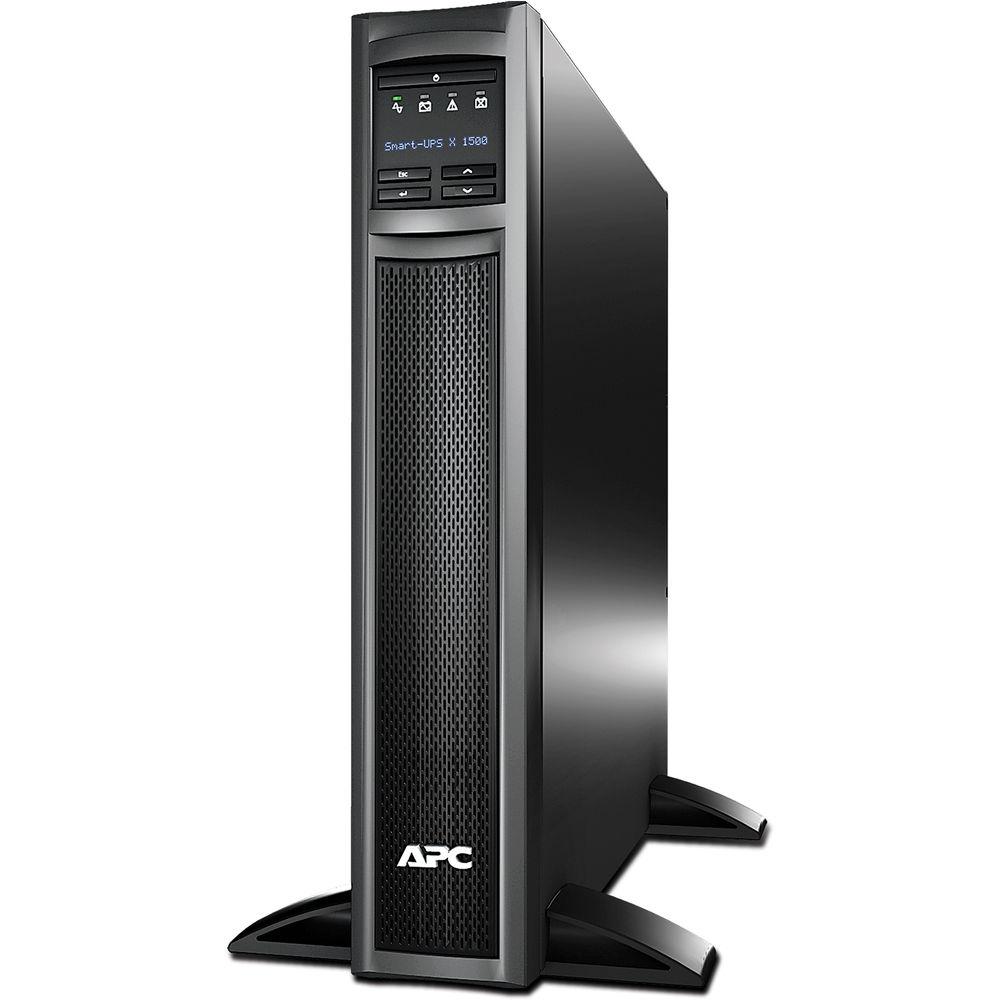

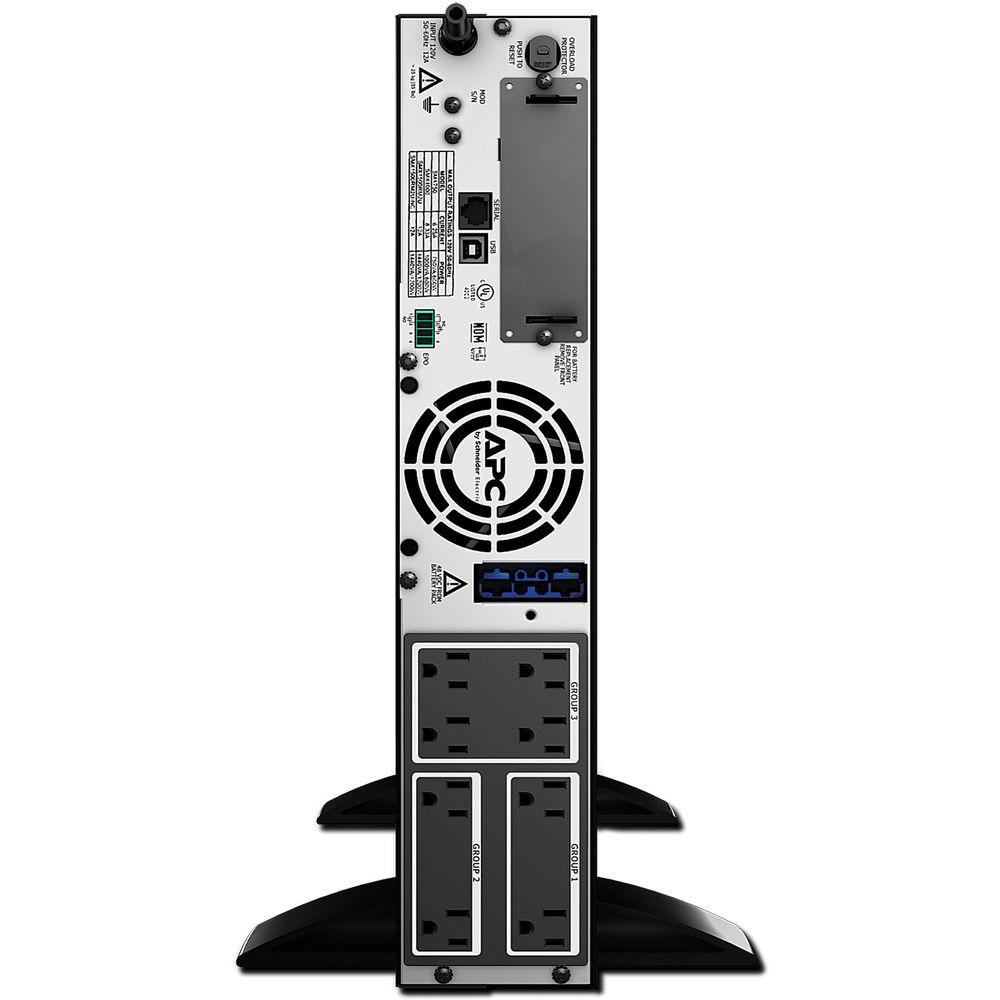

Product description The Smart-UPS X 1500VA Rack/Tower LCD 120V from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery. The eight outlets are grouped and can be controlled separately from the UPS. The UPS also features a rackmountable form factor and all the hardware needed to mount it. - Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Multiple Switched Outlet Groups
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot
- Customize UPS capabilities with management cards.
- Cold-start Capable
- Provides temporary battery power when the utility power is out.
- Serial Connectivity
- Use any Home Automation network to monitor and control the S20 through its RS-232 serial port.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Audible Alarms
- Provides notification of changing utility power and UPS conditions.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
- USB Connectivity
- Provides management of the UPS via a USB port.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Network Manageable
- Provides remote management of the UPS over the network.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.
- Predicative Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Field-Replaceable Power Distribution Panel
- Ensures compatibility with equipment that has different plug types.
UPC: 731304268628 In the Box APC Smart-UPS X 1500VA Rack/Tower LCD 120V CD w/ Software and Documentation Installation Guide Rack Mounting Hardware Rack Mounting Support Rails Removable Support Feet Smart UPS Signaling RS-232 Cable USB Cable Limited 3-Year Warranty More from Manufacturer sydxsfusbt More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X 1500VA Rack Tower LCD 120V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 1500 Specs | | | Total Outlets | 8 | | Data Line Protection | RJ45 | | Communications | USB | | | | Surge Energy Rating | 645 Joules | | Maximum Wattage | 1200 W | | Nominal Input Voltage | 120 VAC | | Load Capacity | 1500 VA | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 8 Minutes | | Charging Time | 3 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 3.5 x 19.3" / 432.0 x 89.0 x 490.0 mm | | Weight | 54.6 lb / 31.9 kg | | | | Package Weight | 67.4 lb | | Box Dimensions (LxWxH) | 24.6 x 23.4 x 9.9" |
