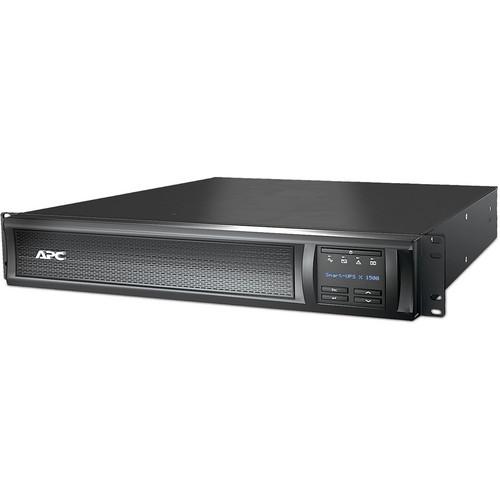

User Manual for APC Smart-UPS X 1500VA Rack Tower LCD 120V with Network Card Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS X 1500VA Rack Tower
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS X 1500VA Rack Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The UPS X 1500VA Rack/Tower LCD 120V with Network Card from APC is popular for servers, storage and networks. It protects critical data and equipment from power problems by supplying clean and reliable network grade power. In addition to legendary reliability and manageability, this UPS has extremely high efficiency at low, medium and high load levels making it ideal for today's multi-core or virtual servers that have varying load consumption. - Remote UPS Management
- Enable management of your UPS by connecting it directly to the network.
- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy-to-use navigation keys.
- High Frequency Design
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Auto Recognition of External Batteries
- UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Multiple Switched Outlet Groups
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Preinstalled Network Management Card
- Provides for remote management and control of the UPS over a network out of the box.
- High Online Efficiency
- Reduces utility costs, generates less heat.
- EPO
- Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
- SmartSlot
- Customize UPS capabilities with management cards.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Scalable Runtime
- Allows additional run time to be quickly added as needed.
- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack mount environment.
- Plug-and-Play External Batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Self-Test
- Automatically starts up the connected equipment upon the return of utility power. Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Network Manageable
- Provides remote management of the UPS over the network.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- USB Connectivity
- Provides management of the UPS via a serial port.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- Adjustable Voltage-Transfer Points
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable Voltage Sensitivity
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
UPC: 731304268642 In the Box APC Smart-UPS X 1500VA Rack/Tower LCD 120V with Network Card USB Cable Smart UPS Signaling RS-232 Cable Rack Mounting Hardware Rack Mounting Support Rails Removable Support Feet Temperature Probe CD with Software Installation Guide Documentation CD Limited 3-Year Warranty More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X 1500VA Rack Tower LCD 120V with Network Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 1500 Specs | | | Total Outlets | 8 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Noise Filtering | 5% | | | | Surge Energy Rating | 600 Joules | | Maximum Current | 12 A | | Maximum Wattage | 1200 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Load Capacity | 1500 VA | | Circuit Breaker Rating | 20 A | | Thermal Dissipation | 133 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | APCRBC115 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 40 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Dimensions (W x H x D) | 3.5 x 17.0 x 19.2" / 8.9 x 43.2 x 48.8 cm | | Weight | 54.7 lb / 24.8 kg | | | | Package Weight | 69.2 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 10.0" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
