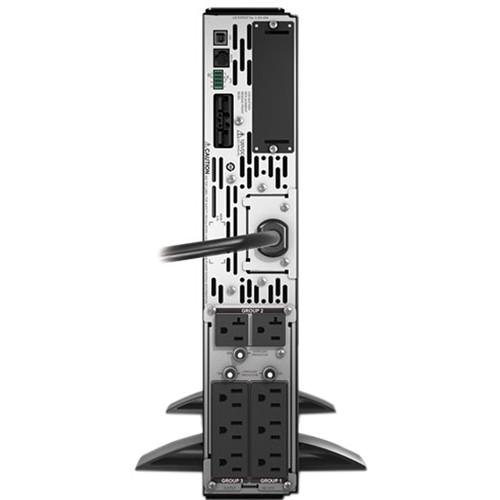

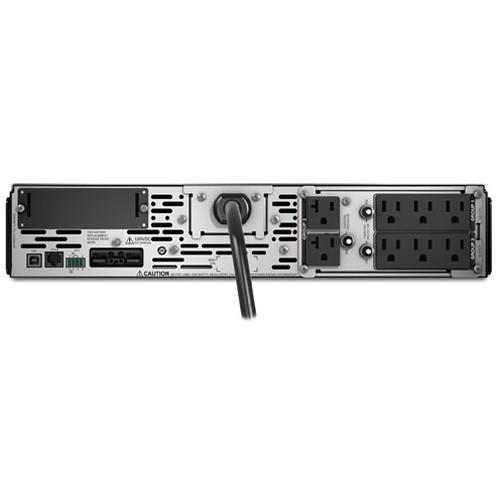

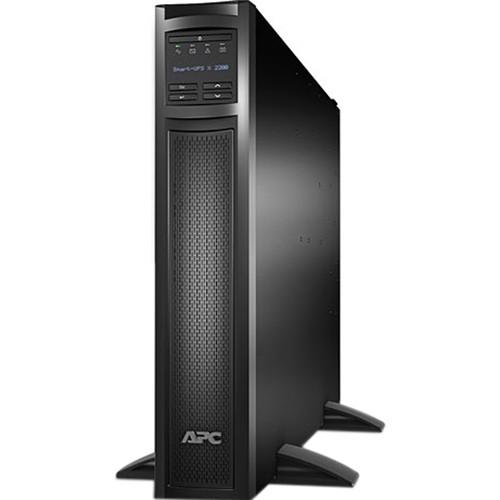

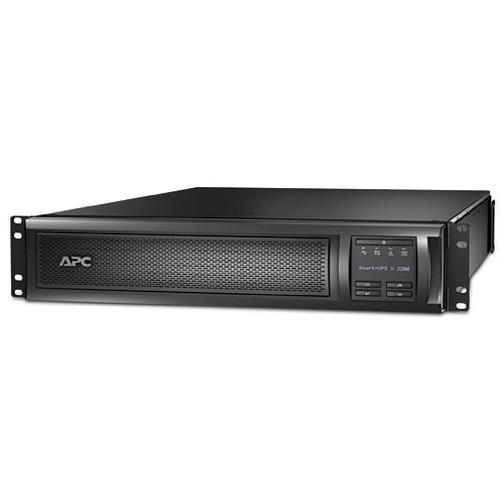

Product description The Smart-UPS X 2200VA Rack/Tower LCD 100-127V from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery. The eight outlets are grouped and can be controlled separately from the UPS. The UPS also features a rackmountable form factor and all the hardware needed to mount it. Manageability - Network Manageable
- Provides remote power management of the UPS over the network.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- USB Connectivity
- Provides management of the UPS via a USB port (not available on all models).
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
Availability - Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Automatic Restart of Load After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
Adaptability - Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Safety - Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Serviceability - Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
UPC: 731304268567 In the Box APC Smart-UPS X 2200VA Rack/Tower LCD 100-127V Limited 3-Year Warranty Limited 2-Year Manufacturer Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X 2200VA Rack Tower LCD 100-127V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMX2200RMLV2U Specs | | | Total Outlets | 8 | | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge)
2 x NEMA 5-20R (Battery and Surge) | | Plug Type | NEMA L5-30P | | SmartSlot Interface | 1 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Noise Filtering | 0.3% | | Topology | Line Interactive | | Transfer Time | 2 to 8 ms | | | | Surge Energy Rating | 540 Joules | | Maximum Wattage | 1980 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 70 to 153 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 2200 VA | | Thermal Dissipation | 268 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | CURK117-01-04 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Dimensions (W x H x D) | 3.4 x 17.0 x 26.3" / 8.5 x 43.2 x 66.7 cm | | Weight | 84.6 lb / 38.5 kg | | | | Package Weight | 101.5 lb | | Box Dimensions (LxWxH) | 34.3 x 23.5 x 9.8" |
