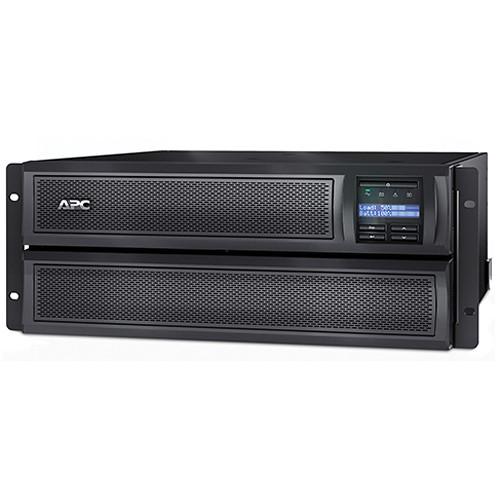

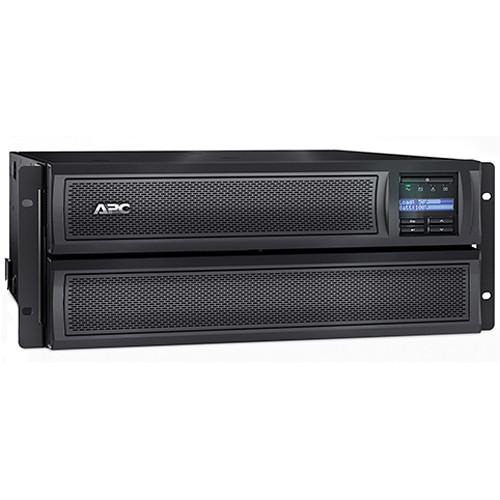

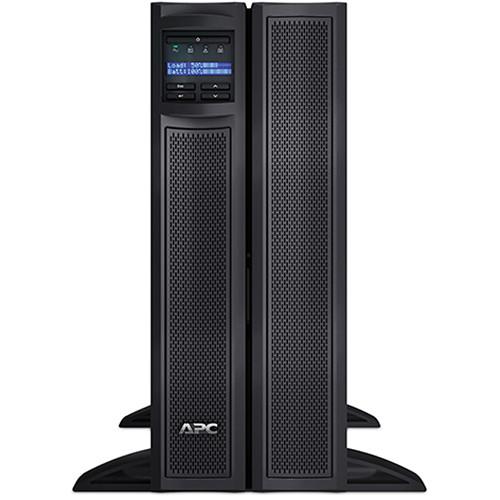

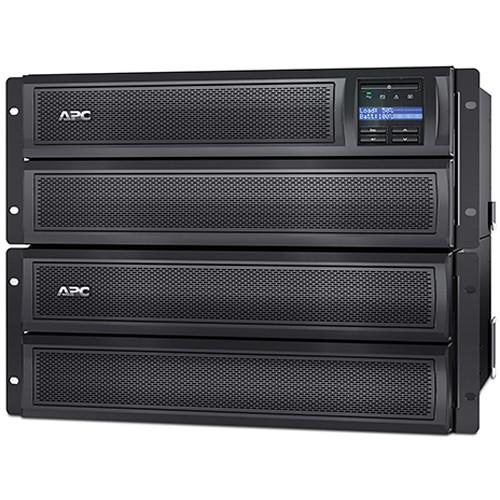

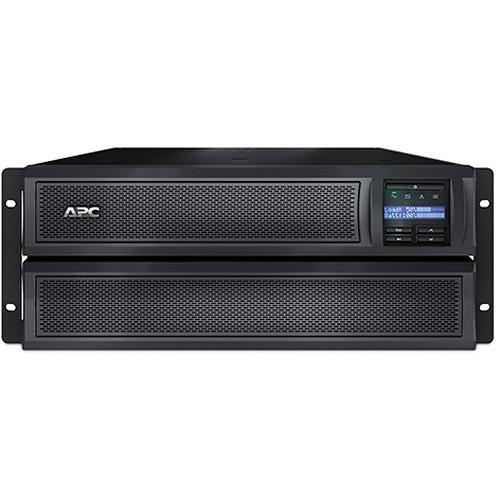

Product description The black Smart-UPS X 2200VA Rack/Tower LCD 200-240V from APC is an extended runtime model Uninterruptible Power Supply (UPS) designed to protect connected loads from surges, spikes, lightning, and other power disturbances. The battery is hot-swappable and easy to replace. An audible alarm lets you know if the battery is low or if there is an overload condition. The UPS can be used in a tower or rackmount configuration. It features a LED status display with On Line, On Battery, Replace Battery and Overload indicators, multi-function LCD status and control console. Availability - Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions, without using the battery (not available on all models)
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
Manageability - Network Manageable
- Provides remote power management of the UPS over the network
- Audible Alarms
- Actively lets you know if the unit is on battery, if the battery is low or if there is an overload condition
- LED Status Indicators
- Quickly understands unit and power status with visual indicators
- Serial Connectivity
- Provides management of the UPS via a serial port
- USB Connectivity
- Provides management of the UPS via a USB port (not available on all models)
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
Serviceability - User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, reducing Mean Time to Repair (MTTR)
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
- Resettable Circuit Breakers
- Enables a quick recovery from overload events
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability - Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
Safety - Safety-Agency Approved
- Ensures that the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
UPC: 731304292609 In the Box APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V (Black) Software CD Rack Mounting Brackets Smart UPS Signaling RS-232 Cable USB Cable Limited 3-Year Warranty Limited 2-Year Warranty for Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X 2200VA Rack Tower LCD 200-240V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

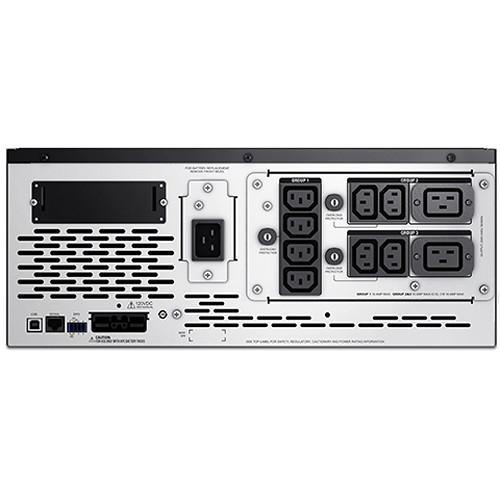

Technical parametersAPC SMX2200HV Specs | | | Total Outlets | 8 x IEC-320 C13
2 x IEC-320 C19 | | Plug Type | IEC-320 C20 | | SmartSlot Interface | 1 | | Communications | USB | | Emergency Power Off (EPO) Support | Yes | | Noise Filtering | 0.3% | | Topology | Line Interactive | | Transfer Time | 2 to 4 ms | | | | Surge Energy Rating | 645 Joules | | Maximum Wattage | 1980 W | | Input Voltage Range | 208 to 240 VAC | | Input Voltage Adjustable Range | 140 to 280 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Output Voltage Range | 208 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 2200 VA | | Thermal Dissipation | 150 BTU/Hour | | Maximum Efficiency | 98.1% | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | APCRBC143 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Rack Form Factor | 4 RU | | Dimensions (W x H x D) | 7.0 x 17.0 x 19.0" / 178.0 x 432.0 x 483.0 mm | | Weight | 85.2 lb / 38.6 kg | | | | Package Weight | 105.4 lb | | Box Dimensions (LxWxH) | 25.0 x 24.0 x 13.0" |
