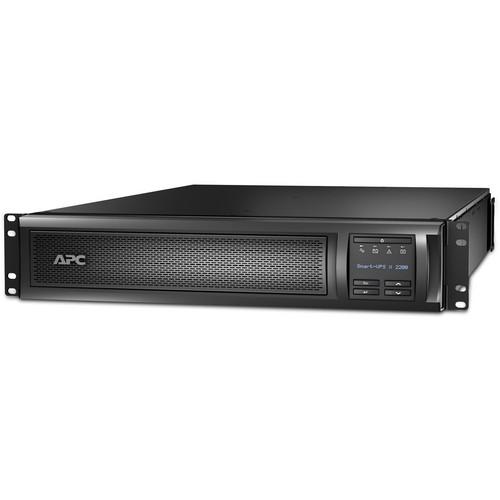

User Manual for APC Smart-UPS X 2200VA Rack Tower with LCD Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS X 2200VA Rack Tower
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS X 2200VA Rack Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The APC Smart-UPS X 2200VA Rack/Tower with LCD (200-240V) offers efficient network power protection to your servers, point-of-sale, routers, switches, hubs, and other network devices. With Automatic Voltage Regulation, the unit offers higher application availability by correcting low and high voltage conditions without utilizing the battery.
With an intelligent battery management, the Smart-UPS X 2200VA Rack/Tower with LCD (200-240V)maximizes battery performance, life, and reliability via precision charging. The unit houses a power condition that offers protection for connected loads from surges, spikes, lightning, and other power disturbances. It boasts of temperature-compensated battery charging capability to enhance battery life by controlling the charge voltage as per battery temperature. Apart from battery failure notification, the Smart-UPS also conducts periodic battery self-test to ensure early detection of a battery that needs to be replaced.
Featuring an automatic self-test, the Smart-UPS automatically starts up the connected equipment upon the return of utility power and restarts loads after it is shutdown. With network manageability, the unit provides remote management over the network. It features audible alarms that actively inform you whether the unit is on battery, the battery is low, or if there is an overload condition.
Through LED status indicators, the Smart-UPS updates you on the unit and power status. In addition to serial connectivity for managing the UPS via a serial port, the unit has USB connectivity that enables you to manage the UPS via a USB port. Hot-swappable batteries ensure clean, uninterrupted power to protect equipment while batteries are being replaced. It comes with resettable circuit breakers for a quick recovery from overloaded events.
With adjustable voltage-transfer points, Smart-UPS widens the input voltage window or tightens the output voltage regulation for maximizing useful battery life. You can also use this equipment for optimal performance in some specific power environments or generator applications. The unit has been tested and approved to work safely with the connected service provider equipment and within the specified environment. - Boost and Trim Automatic Voltage Regulation
- Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Network Manageable
- Provides remote management of the UPS over the network.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- USB Connectivity
- Provides management of the UPS via a USB port.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
UPC: 731304272687 In the Box APC Smart-UPS X 2200VA Rack/Tower with LCD (230V) Rack Mounting Brackets Smart UPS Signalling RS-232 Cable USB Cable CD with Software User Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X 2200VA Rack Tower with LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMX2200RMHV2U Specs | | | Total Outlets | 8 x IEC-320 C13
1 x IEC-320 C19 | | SmartSlot Interface | 1 | | Communications | USB | | Emergency Power Off (EPO) Support | Yes | | Noise Filtering | 0.3% | | Topology | Line Interactive | | Transfer Time | 2 to 4 ms | | | | Surge Energy Rating | 645 Joules | | Maximum Wattage | 1980 W | | Nominal Input Voltage | 230 VAC | | Input Voltage Range | 208 to 240 VAC | | Input Voltage Adjustable Range | 141 to 280 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Output Voltage Range | 208 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 2200 VA | | Thermal Dissipation | 150 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | APCRBC117 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 3.4 x 26.3" / 432.0 x 85.0 x 667.0 mm | | Weight | 82.1 lb / 37.3 kg | | | | Package Weight | 104.8 lb | | Box Dimensions (LxWxH) | 34.5 x 23.5 x 9.5" |
