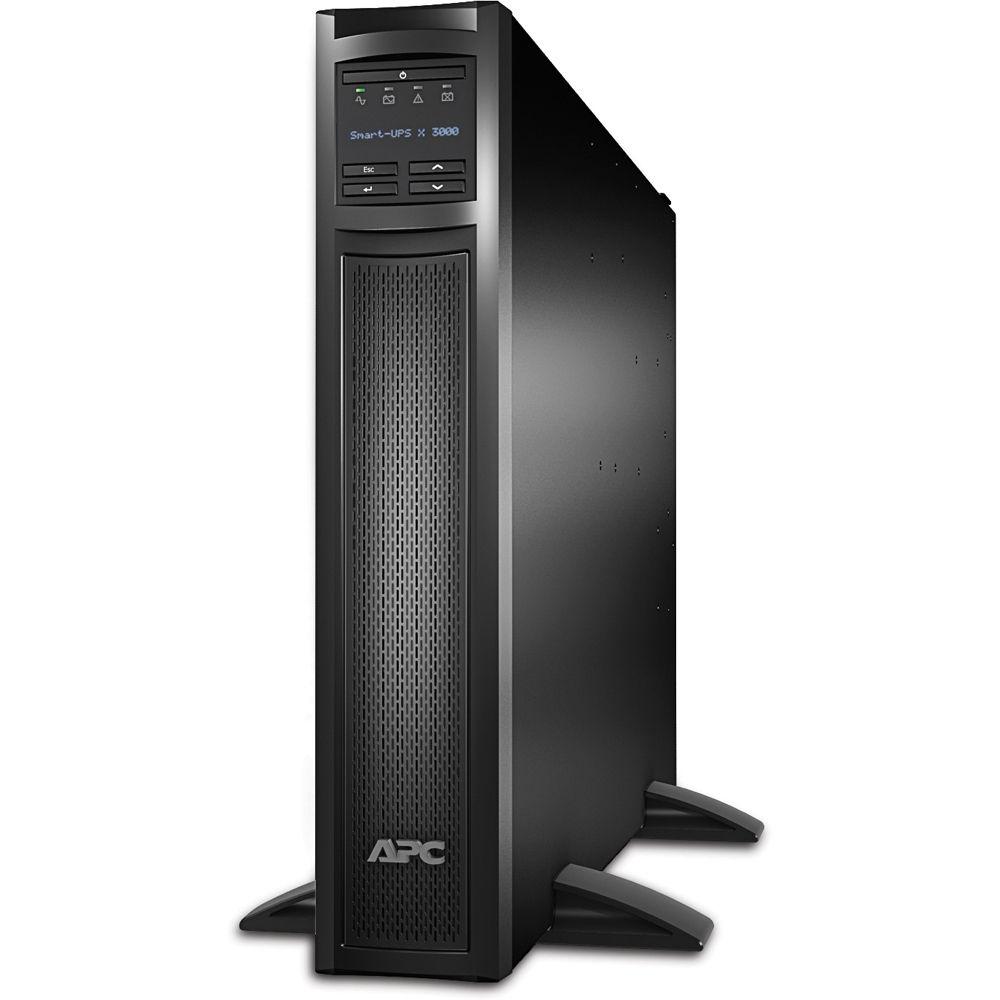

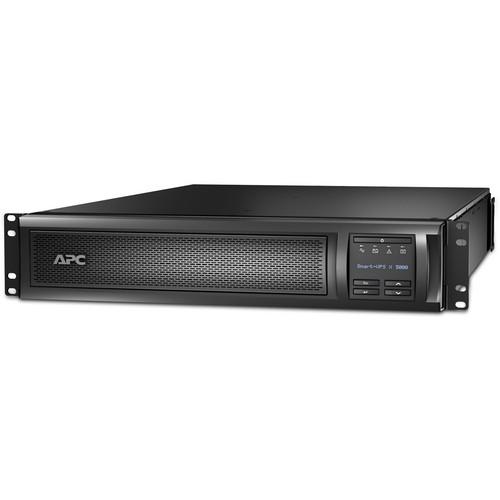

User Manual for APC Smart-UPS X 3000VA Rack Tower LCD 100-127V Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS X 3000VA Rack Tower
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS X 3000VA Rack Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V provides a continuous supply of battery power for connected devices in the event of an AC power loss. It also safeguards equipment from surges, spikes, lightning, and electrical disturbances. An on-board LCD display, available in multiple languages, gives you a comprehensive and precise readout on critical system functionality. A unique feature of this UPS is green mode which, by bypassing unused electrical components in good power conditions, saves energy costs while reducing the impact on the environment.
This UPS incorporates a notification process which will let you know the month and year that the battery is recommended for replacement so you can plan ahead of time. The system will also notify you if it detects a problem with the battery so you can take the proper measures before it fails completely. Thanks to hot-swap support you can replace the battery on the fly without interrupting the UPS' surge protection functionality.
This UPS features a USB connection that enables configuration and control from a PC. It also has a Smart-Slot for integrating the UPS into a network for remote accessibility. There's also an Automatic Voltage Regulator (AVR) which ensures clean and uninterrupted AC power by correcting low and high voltage conditions without using the battery.
This UPS features an intelligent battery management that prolongs battery life by using a charging method that takes into account the battery's age, capacity, temperature, and other factors. An automatic self-test function periodically checks the efficiency of the battery and provides notification when the battery is nearing the end of its usefulness. If the battery requires replacement it can be done easily without the need for tools. The system will also notify you if the battery is disconnected. An LED indicator lets you see at a glance power and battery status. The UPS also features an automatic restart function which will automatically power up devices after AC is restored. System - Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- High Frequency Design
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Auto Recognition of External Batteries
- UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users.
- Outlet Group Control
- Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
- Sequenced Shutdown and Restart
- Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
- Load Shedding
- Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).
- InfraStruXure Central Compatible
- Enables centralized management via APC InfraStruXure Central.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Multiple Switched Outlet Groups
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Wide Input Voltage Range
- Designed for harsh electrical environments to save battery life.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- High Online Efficiency
- Reduces utility costs, generates less heat.
- LED Indicators
- Provide easy-to-read status of the unit and utility power conditions.
- Overload Protection
- Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
- SmartSlot
- Customize UPS capabilities with management cards.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Audible Alarms
- Provides notification of changing utility power and UPS conditions.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
- USB Connectivity
- Provides management of the UPS via a USB port (not available on all models).
- Serial Connectivity
- Provides management of the UPS via a serial port.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Scalable Runtime
- Allows additional run time to be quickly added as needed.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Network Manageable
- Provides remote management of the UPS over the network.
- Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Predicitive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
Availability - Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
Manageability - Network Manageable
- Provides remote management of the UPS over the network.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- USB Connectivity
- Provides management of the UPS via a USB port (not available on all models).
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
Serviceability - User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Adaptability - Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety - Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
UPC: 731304268550 In the Box APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V CD with Software Documentation CD Installation Guide Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails Removable Support Feet Smart UPS Signaling Smart-UPS Signaling RS-232 Cable RS-232 Cable USB Cable 3 Years Repair or Replace (excluding battery) and 2 Years for Battery More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X 3000VA Rack Tower LCD 100-127V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

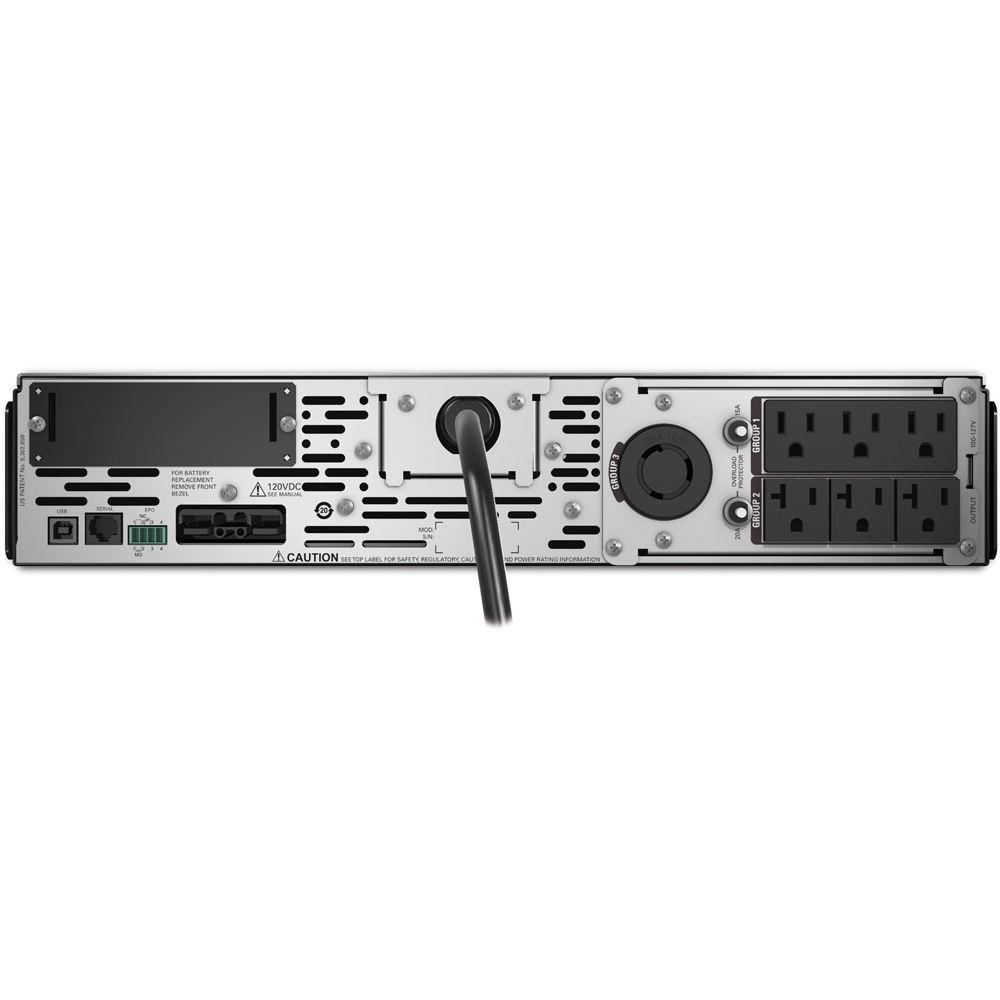

Technical parametersAPC 3000 Specs | | | Total Outlets | 3 x NEMA 5-15R
3 x NEMA 5-20R
1 x NEMA L5-20R | | Plug Type | NEMA L5-30P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | Transfer Time | 2 to 4 ms | | | | Surge Energy Rating | 540 Joules | | Maximum Wattage | 2700 W | | Nominal Input Voltage | 120 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 3000 VA | | Thermal Dissipation | 276 BTU/Hour | | Maximum Efficiency | 98% | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Full-Load Runtime | 6 Minutes | | Charging Time | 3 Hours | | Replacement Battery | APCRBC117 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 3.4 x 17.0 x 26.3" / 85.0 x 432.0 x 667.0 mm | | Weight | 84.6 lb / 38.5 kg | | | | Package Weight | 103.5 lb | | Box Dimensions (LxWxH) | 33.0 x 23.5 x 9.5" |
