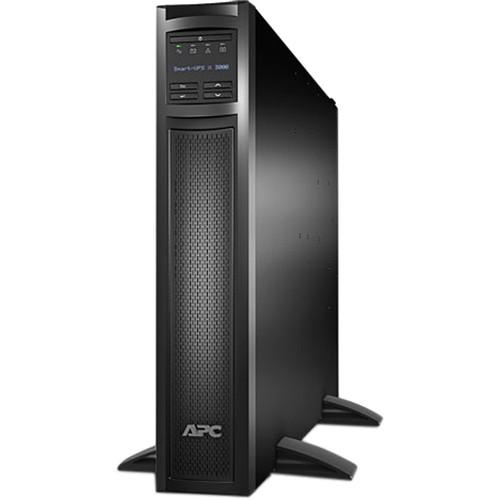

User Manual for APC Smart-UPS X 3000VA Rack Tower LCD 100-127V with Network Card Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS X 3000VA Rack Tower
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Smart-UPS X 3000VA Rack Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

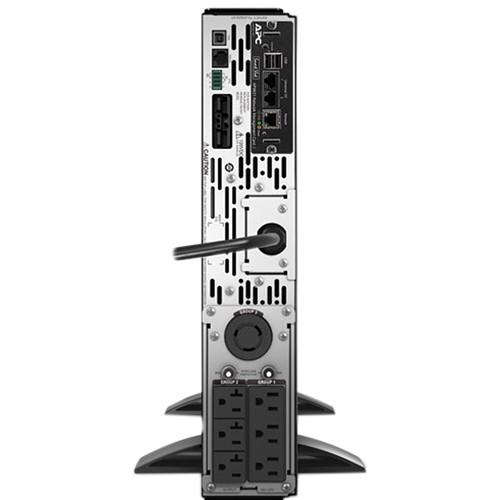

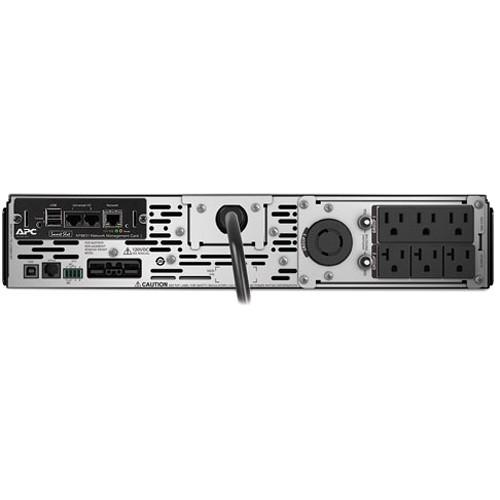

Product description Designed for use with point-of-sale kiosks, routers, switches, hubs and other network devices, the Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card from APC is a reliable, efficient, backup power solution. This UPS features a 2.7 kW/2.88 kVA output power capacity along with a nominal output voltage of 120 V. Additionally, this line interactive UPS outputs a pure sine wave and comes equipped with one NEMA L5-30R, three NEMA 5-15R, and three NEMA 5-20R output connections along with a transfer time between 2 and 4 ms. Once configured, users benefit from a variety of power features including adjustable voltage sensitivity, hot-swappable batteries, cold-start capabilities, battery failure notifications, network management functionality, predictive failure notifications, and much more. - Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions
- Auto Recognition of External Batteries
- UPS recognizes when external battery packs are attached and automatically adjusts runtime
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Cold-Start Capable
- Provides temporary battery power when the utility power is out
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users
- Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
- High Frequency Design
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling
- High Online Efficiency
- Reduces utility costs, generates less heat
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging
- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
- LED Indicators
- Provide easy-to-read status of the unit and utility power conditions
- Load Shedding
- Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups)
- Multiple Switched Outlet Groups
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
- Network Manageable
- Provides remote power management of the UPS over the network
- Outlet Group Control
- Turn on/off, reboot or shut down select outlet groups to avoid dispatching technicians to remote locations
- Overload Protection
- Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
- Pure Sine Wave Output on Battery
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics

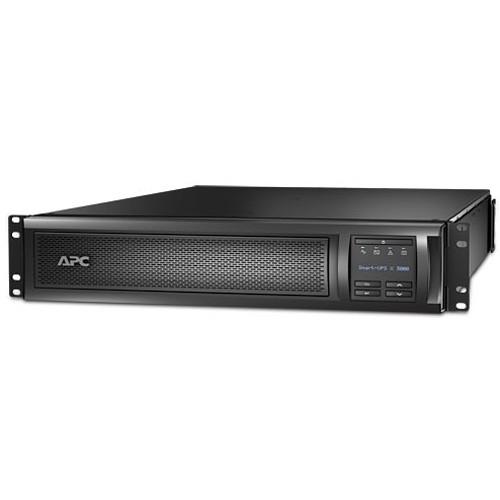

- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
- Scalable Runtime
- Allows additional run time to be quickly added as needed
- Sequenced Network Shutdown and Reboot
- Customize network shutdown and reboot sequence of connected servers and UPS's
- Serial Connectivity
- Provides management of the UPS via a serial port
- SmartSlot
- Customize UPS capabilities with management cards
- StruxureWare Data Center Expert Compatible
- Enables centralized management via StruxureWare Data Center Expert
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Wide Input Voltage Range
- Designed for harsh electrical environments to save battery life
UPC: 731304268543 In the Box APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails Removable Support Feet Smart UPS Signaling RS-232 Cable USB Cable Web/SNMP Management Card Limited 3-Year Warranty Limited 2-Year Manufacturer Warranty for Batteries More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X 3000VA Rack Tower LCD 100-127V with Network Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 3000VA Specs | | | Total Outlets | 7 | | Protected Outlets | 1 x NEMA L5-30R (Battery and Surge)
3 x NEMA 5-15R (Battery and Surge)
3 x NEMA 5-20R (Battery and Surge) | | Plug Type | NEMA L5-30P | | SmartSlot Interface | 1 | | Data Line Protection | RJ11, RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | Transfer Time | 2 to 4 ms | | | | Surge Energy Rating | 540 Joules | | Maximum Current | 15 A | | Maximum Wattage | 2700 W | | Nominal Input Voltage | 120 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 2880 VA | | Thermal Dissipation | 276 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | CURK117-01-04 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 3.4 x 17.0 x 26.3" / 8.5 x 43.2 x 66.7 cm | | Weight | 84.6 lb / 38.5 kg | | | | Package Weight | 105.1 lb | | Box Dimensions (LxWxH) | 34.5 x 23.5 x 9.5" |
