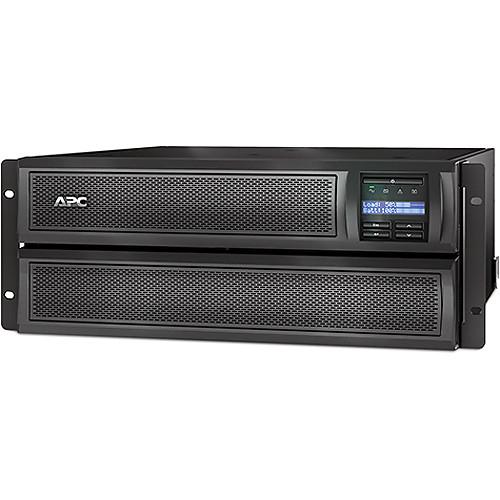

User Manual for APC Smart-UPS X 3000VA Short Depth Tower Rack Convertible LCD Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS X 3000VA Short Depth
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS X 3000VA Short Depth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD from APC features a 2700 Watt / 3000 VA maximum configurable output power capacity and a 230 V nominal output voltage ensuring you can power a variety of devices such as servers, PCs, and more. This smart uninterrupted power supply comes equipped with four IEC 320 C13, two IEC 320 C19, two NEMA L6-20R outlets and two IEC jumpers. Along with output power capabilities of the UPS, you also benefit from a 208 V nominal input voltage along with an input voltage range of 141 to 255 V and 160 to 280 V. The included user replaceable sealed lead-acid battery ensures reliable backup power with a 3 hour recharge time.
Managing this Smart-UPS has also been simplified as it comes with an integrated LCD display along with the ability to remotely manage the UPS over a network connection. Accompanying the integrated LCD display are LED status indicators to provide an additional visual element to display the power status of the unit. - Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Network Manageable
- Provides remote management of the UPS over the network.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
UPC: 731304292630 In the Box APC Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD (208V) CD with Software Documentation CD Rack Mounting Brackets Smart UPS Signaling RS-232 Cable USB Cable Limited 2-Year Manufacturer Warranty for Battery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X 3000VA Short Depth Tower Rack Convertible LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMX3000HVT Specs | | | Total Outlets | 4 x IEC-320 C13
2 x IEC-320 C19
2 x NEMA L6-20R | | Plug Type | IEC-320 C20 | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | Yes | | Noise Filtering | 0.3% | | Topology | Line Interactive | | Transfer Time | 2 to 4 ms | | | | Surge Energy Rating | 645 Joules | | Maximum Wattage | 2700 W | | Nominal Input Voltage | 230 VAC | | Input Voltage Range | 208 to 240 VAC | | Input Voltage Adjustable Range | 141 to 280 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Output Voltage Range | 208 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 3000 VA | | Thermal Dissipation | 184 BTU/Hour | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | APCRBC117 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 17.0 x 7.0 x 19.0" / 43.2 x 17.8 x 48.3 cm | | Weight | 85.0 lb / 38.6 kg | | | | Package Weight | 107.5 lb | | Box Dimensions (LxWxH) | 25.0 x 23.0 x 13.0" |
