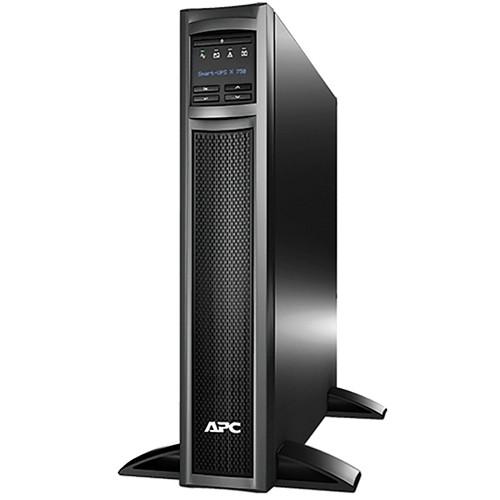

User Manual for APC Smart-UPS X 750VA Rack Tower with LCD Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS X 750VA Rack Tower
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS X 750VA Rack Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Smart-UPS X 750VA Rack/Tower with LCD (120V) from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery. The UPS also delivers battery-powered AC and features a rackmountable form factor and all the hardware needed to mount it. - Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- High Frequency Design
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Auto Recognition of External Batteries
- UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single Switched Outlet Group
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- High Online Efficiency
- Reduces utlility costs, generates less heat.
- EPO
- Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
- SmartSlot
- Customize UPS capabilities with management cards
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Scalable Runtime
- Allows additional run time to be quickly added as needed.
- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Plug-and-Play External Batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
UPC: 731304274650 In the Box APC Smart-UPS X 750VA Rack/Tower with LCD (120V) CD with Software Documentation CD Installation Guide Rack Mounting Brackets Removable Support Feet Smart UPS Signaling RS-232 Cable USB Cable Limited 3-Year Warranty 2-Year Limited Warranry for Batteries More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X 750VA Rack Tower with LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 750 Specs | | | Total Outlets | 8 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Noise Filtering | 5% | | Topology | Line Interactive | | | | Surge Energy Rating | 645 Joules | | Maximum Current | 12 A | | Maximum Wattage | 600 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 750 VA | | Circuit Breaker Rating | 15 A | | Thermal Dissipation | 69 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Full-Load Runtime | 18.8 Minutes | | Charging Time | 3 Hours | | Replacement Battery | APCRBC116 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 40 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 3.5 x 19.3" / 432.0 x 89.0 x 490.0 mm | | Weight | 48.4 lb / 22.0 kg | | | | Package Weight | 55.0 lb | | Box Dimensions (LxWxH) | 24.6 x 23.4 x 10.0" |
