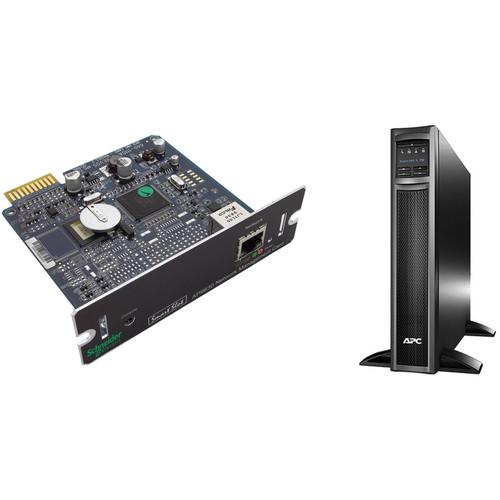

User Manual for APC Smart-UPS X 750VA Rack Tower with Network Management Card Kit

• Product category: UPS Backup APC
• Brand: APC
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for APC UPS Backup

Product description

• APC Smart-UPS X 750VA Rack/Tower with LCD (120V) The Smart-UPS X 750VA Rack/Tower with LCD (120V) from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery. The UPS also delivers battery-powered AC and features a rackmountable form factor and all the hardware needed to mount it.
  Intuitive LCD Interface
  • Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  High Frequency Design
  • Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
  Auto Recognition of External Batteries
  • UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  Predictive Replace Battery Date
  • Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  Green Mode
  • Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  Energy Meter
  • Provides actual kilowatt hours of usage for energy conscious users.
  Pure Sine Wave Output on Battery
  • Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  Single Switched Outlet Group
  • Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  High Online Efficiency
  • Reduces utlility costs, generates less heat.
  EPO
  • Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
  SmartSlot
  • Customize UPS capabilities with management cards
  Cold-Start Capable
  • Provides temporary battery power when the utility power is out.
  Temperature-Compensated Battery Charging
  • Prolongs battery life by regulating the charge voltage according to battery temperature.
  Scalable Runtime
  • Allows additional run time to be quickly added as needed.
  Rack/Tower Convertible
  • Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  Plug-and-Play External Batteries
  • Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
  UPC: 731304274650
• APC UPS Network Management Card 2 The UPS Network Management Card 2 from APC provides simple network management and monitoring for APC SmartSlot Uninterruptible Power Supplies (UPS). Installing the card is easy, and the 10/100 Ethernet port provides simple connection to your network. With notification and logging accessible over the network or from a remote location, the card is a convenient solution for technicians and network managers needing to address problems unable to come into the office.
  Scheduling
  • Customize shut down and reboot of connected equipment and UPSs.
  Integrates with InfraStruXure Central
  • An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.
  Data Logging
  • Identify problematic trends before they escalate or export the data log for analysis.
  Event Logging
  • Pinpoint the timing and sequence of events leading up to an incident with the event log.
  Flash Upgradeable Firmware
  • Install maintenance releases of firmware remotely using FTP.
  Run Command File
  • Run command file on shutdown sequence as well as start-up sequence.
  Notification
  • Be notified of problems to ensure crucial situations are dealt with in a timely manner.
  Remote UPS Management
  • Enable management of your UPS by connecting it directly to the network.
  Browser Accessible
  • View the user interface with a browser. Provides quick access from anywhere on a secure network.
  Enterprise Management System Compatible
  • Manage your APC devices from a single system by forwarding SNMP traps (events) to your preferred enterprise management system.
  Reboot Equipment Remotely
  • Saves dispatching technicians to remote locations.
  Operating System Shutdown
  • Prevents possible data corruption by performing graceful, unattended operating system shutdown in the event of an extended power outage.
  Password Security
  • User-selectable password protection prevents unauthorized access.
  Three-tier User Access
  • Control user access on three levels including read only, device and administrator.
  Radius Support
  • Use an existing radius server to securely authenticate, authorize, and account for your APC device.
  PowerChute Network Shutdown
  • Reliable network-based shutdown of multiple servers.
  UPC: 731304267416

• Smart-UPS X 750VA Rack/Tower with LCD (120V)
• CD with Software
• Documentation CD
• Installation Guide
• Rack Mounting Brackets
• Removable Support Feet
• Smart UPS Signaling RS-232 Cable
• USB Cable
• Limited 3-Year Warranty
• 2-Year Limited Warranry for Batteries

• UPS Network Management Card 2

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• APC Smart-UPS X 750VA Rack/Tower with LCD (120V)

  Total Outlets	8 x NEMA 5-15R
  Plug Type	NEMA 5-15P
  SmartSlot Interface	1
  Data Line Protection	RJ45
  Communications	USB
  Noise Filtering	5%
  Topology	Line Interactive

  Surge Energy Rating	645 Joules
  Maximum Current	12 A
  Maximum Wattage	600 W
  Nominal Input Voltage	120 VAC
  Input Voltage Adjustable Range	75 to 154 VAC
  Input Frequency	50/60 Hz ± 3 Hz (Auto Sensing)
  Nominal Output Voltage	120 VAC
  Output Frequency	50/60 Hz ± 3 Hz
  Voltage Distortion	<5%
  Load Capacity	750 VA
  Circuit Breaker Rating	15 A
  Thermal Dissipation	69 BTU/Hour
  Waveform	Sine Wave

  Cells	1
  Chemistry	Lead-Acid
  Full-Load Runtime	18.8 Minutes
  Charging Time	3 Hours
  Replacement Battery	APCRBC116

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 95%
  Storage Temperature	5 to 113°F / -15 to 45°C
  Operating Altitude	10,000' / 3000 m
  Storage Altitude	50,000' / 15,000 m
  Noise Level	40 dBA
  Certifications	REACH, RoHS, as per Manufacturer

  Cable Length	8' / 2.4 m
  Rack Form Factor	2 RU
  Dimensions (W x H x D)	17.0 x 3.5 x 19.3" / 432.0 x 89.0 x 490.0 mm
  Weight	48.4 lb / 22.0 kg

  Box Dimensions (LxWxH)	24.6 x 23.4 x 10.0"

• APC UPS Network Management Card 2

  Interface	10/100 Ethernet RJ-45
  Standards	HTTP, HTTPS, SMTP, SNMP v1, SNMP v3, TCP/IP, Telnet
  Data Rate	Up to 100Mbps
  Connectors	RJ-45 Port
  Compatible with	All APC SmartSlot UPSs, including Smart-UPS and Symmetra units
  Power Requirements	Bus Powered
  Dimensions	1.5 x 4.75 x 4.5" (38 x 121 x 114mm)
  Weight	0.18 lbs (80g)

  Box Dimensions (LxWxH)	9.1 x 6.4 x 1.9"
