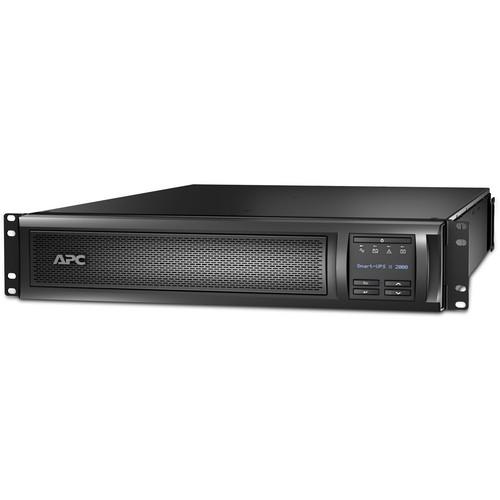

User Manual for APC Smart-UPS X-series Rack Tower UPS with LCD Click to enlarge the picture
Contents of the user manual for the APC Smart-UPS X-series Rack Tower UPS
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Smart-UPS X-series Rack Tower UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The APC Smart-UPS X-series Rack/Tower UPS with LCD (2000 VA) provides efficient power protection to your electrical equipment by maintaining a continuous supply in case of a power loss, and safeguards your equipment from surges, spikes, lightning, and electrical disturbances.
Designed for the energy-conscious consumer, the APC Smart-UPS is designed to increase control and efficiency, thereby helping the user save on utility costs. A unique feature of this UPS is the green mode, which bypasses unused electrical components in good power condition and saves energy, reducing the impact on the environment. If you're an energy-conscious consumer, then you'll appreciate the handy energy meter that helps you track the usage statistics of the UPS.
Improved diagnostic features of the Smart-UPS unit allow for enhanced monitoring, and keep you updated on any necessary maintenance well in advance. For instance, an audible alarm alerts you of events like changing utility power and UPS conditions, power outage, and low battery condition. The Smart-UPS also incorporates a notification process, which tells you the exact month and year when the battery is due for replacement so you can plan ahead of time. Predictive failure notification offers continuous worry-free operation by enabling you to fix a problem before it occurs. Thanks to hot-swap support, you can replace the battery on the fly without interrupting the surge protection functionality. In case of an over-load, the resettable circuit breakers will help you get back in business in no time. Additionally, the Smart-UPS allows you to individually control power flow to attached devices, enabling you to perform discrete sequenced on/off and reboot of hung devices and non-critical load shedding.
Boost and trim automatic voltage regulation outputs pure sine wave by correcting low and high voltage condition that makes this UPS suitable for use with active PFC servers and highly sensitive electronic equipment. An intelligent battery management system with precision charging prolongs battery life by charging the UPS as per its current temperature. Automatic periodic battery self tests will alert you in case of a problem with the battery so you can take the proper measures before it fails completely. An LED indicator lets you see the power and battery status at a glance. The UPS also features an automatic restart function, which will automatically power up devices after AC is restored.
An on-board LCD display, with multi-lingual support, provides clear and accurate information so you can configure the UPS using the navigation keys. You also can control and configure the UPS via a PC and connect it to a network for remote accessibility. Operation - Protects your electrical equipment by maintaining a continuous flow of power
- Safeguards equipment from surges, spikes, lightning, and electrical disturbances
- Intuitive on-board LCD display with multi-linguistic support provides clear and accurate information and assists in configuration with easy-to-use navigation keys
Efficiency - Green mode bypasses unused electrical components in good power condition for energy efficient operation
- Energy meter provides usage statistics
- High online efficiency - reduced utility costs and minimal heat generation
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Individual power flow control enables you to perform discrete reboot of hung devices, sequenced on/off, and non-critical load shedding
- Boost and trim automatic voltage regulation corrects low and high voltage condition for a constant pure sine wave output
- Simulates utility power to provide the highest degree of compatibility for active PFC servers and sensitive electronic devices
- Easy handling of the unit thanks to a high frequency design that avoids the use of bulky transformers
- Scalable runtime for operating critical equipment in case of power failure
Alerts - Notifies you about the month and year that the battery is due for replacement
- Continuous worry-free operation via predictive failure notification - fix a problem before it occurs
- Disconnected battery notification warns you when a battery is not available for backup
- Audible alarm alerts you of critical events that might affect the operation of the UPS
- Periodic battery self tests allow you to prevent rather than correct faults in the battery
- LED indication of power and battery status
Additional Functionalities - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Automatically recognizes the type of battery packs attached and its equivalent runtime
- User-replaceable batteries reduces Mean Time to Repair (MTTR)
- Adjustable voltage sensitivity offers the ability to adapt the UPS for optimal performance in specific power environments or generator applications
- Resettable circuit breakers help you recover from an overload condition in no time
- Battery management system prolongs battery life via precision charging with respect to the battery temperature
- Automatic restart function automatically power up devices after AC is restored
- Cold-start capable - provides temporary battery power when the utility power is out
- Cold-start capable - provides temporary battery power when the utility power is out
- Management via a serial port
- Enables centralized management via StruxureWare Central
- Can be integrated with a network for remote accessibility and management
- Customizable UPS capabilities with management cards
- Can be mounted in a rack, useful while migrating from tower to rack-mount environment
UPC: 731304268536 In the Box APC Smart-UPS X-series Rack/Tower UPS with LCD (2000 VA) CD with Software Documentation CD Installation Guide Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails Removable Support Feet Smart-UPS Signaling RS-232 Cable USB Cable 3-Year Repair or Replace (Excluding Battery) and 2-Year for Battery More info from APC usfazfxdfqzfd Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X-series Rack Tower UPS with LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 1500 Specs | | | Total Outlets | 3 x NEMA 5-15R
3 x NEMA 5-20R
1 x NEMA L5-20R | | Plug Type | NEMA 5-20P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | Transfer Time | 2 to 4 ms | | | | Surge Energy Rating | 540 Joules | | Maximum Wattage | 1800 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 1920 VA | | Thermal Dissipation | 276 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | APCRBC117 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 3.4 x 17.0 x 26.3" / 85.0 x 432.0 x 667.0 mm | | Weight | 84.6 lb / 38.5 kg | | | | Package Weight | 99.0 lb | | Box Dimensions (LxWxH) | 34.0 x 23.6 x 9.7" |
