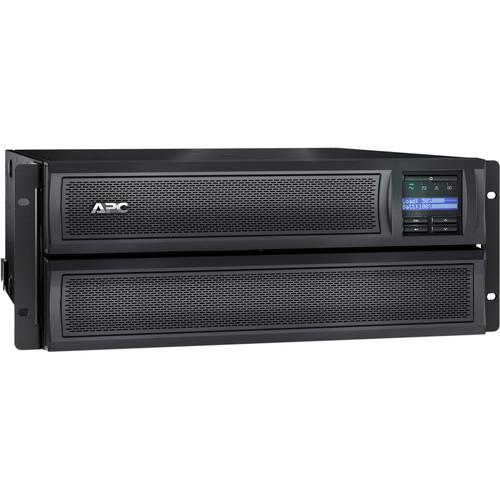

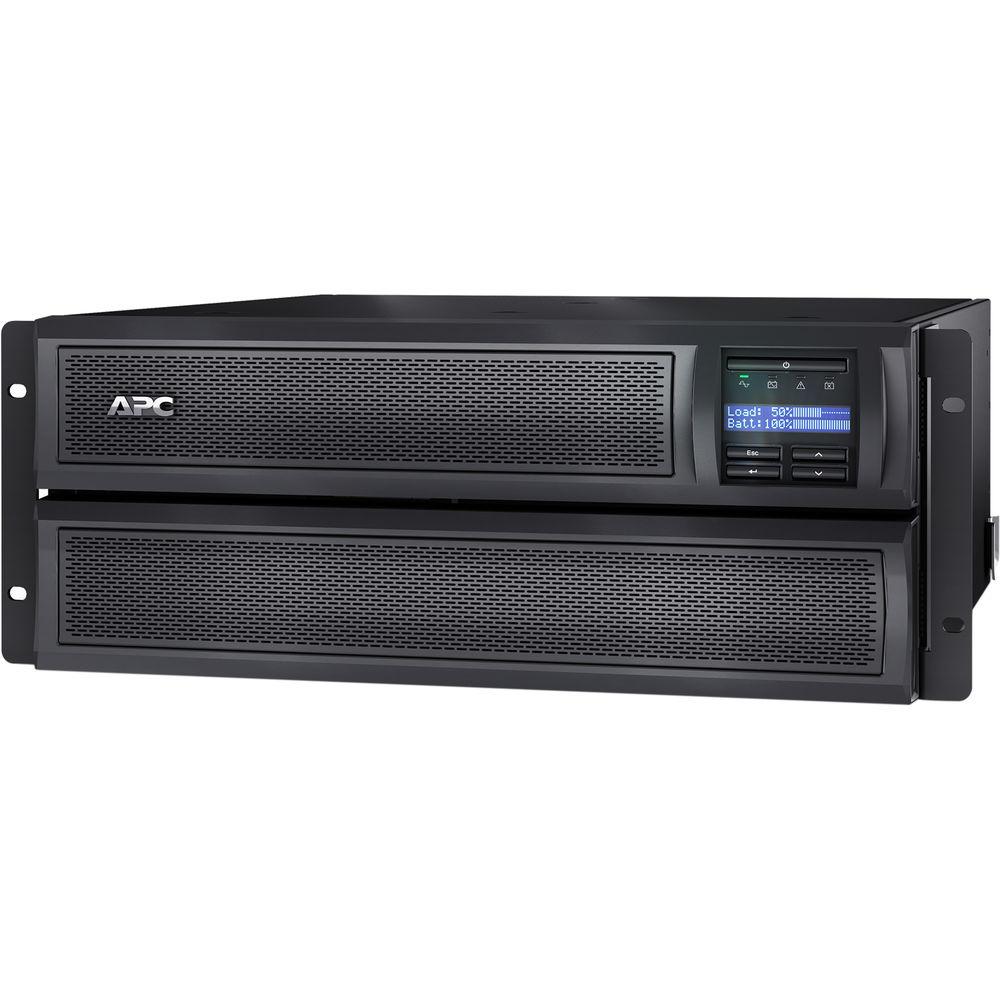

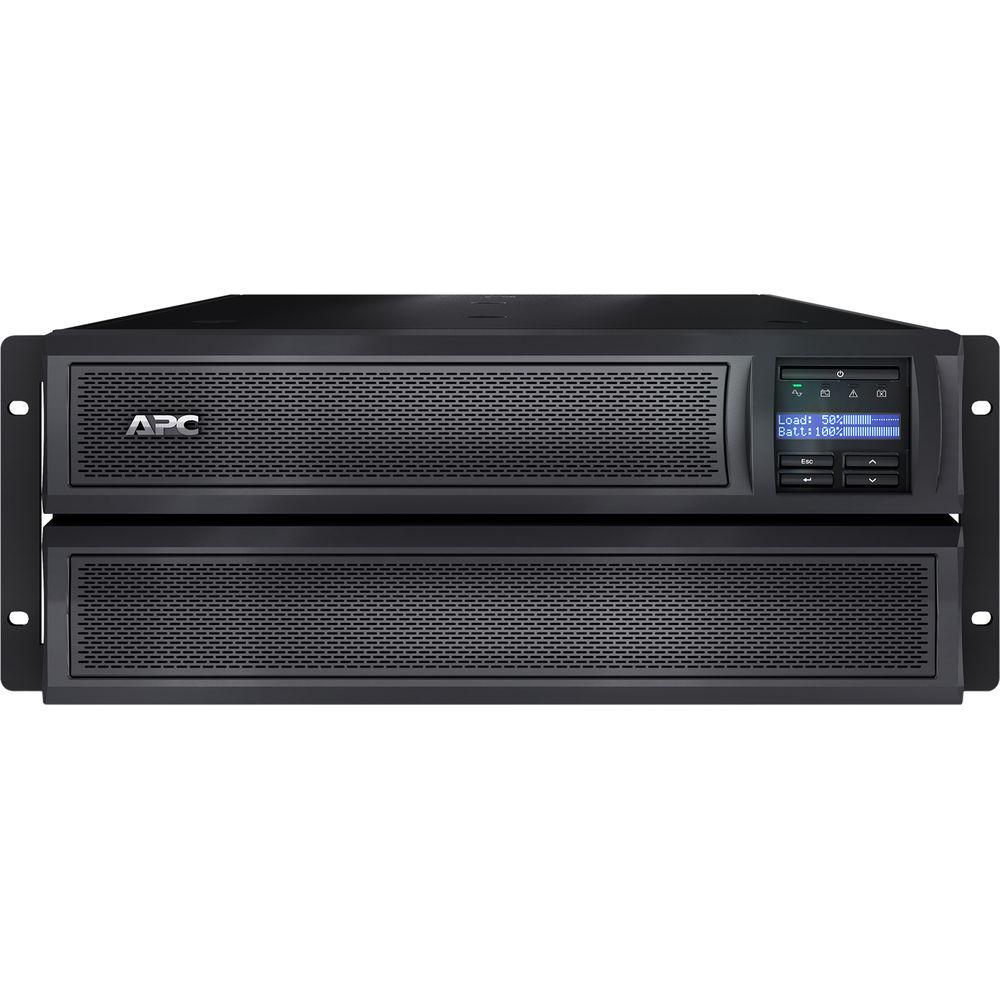

Product description Maintain business certainty with intelligent and efficient network power protection for your network closets and server rooms with the Smart-UPS X Uninterruptible Power Supply with Network Card from APC. This UPS is designed for network power protection from entry level to scalable runtime and is suited for servers, point-of-sale routers, switches, hubs, and other network devices. APC's green mode provides high efficiency at low, medium, and high load levels and managed outlet groups allow segmented load control to power your equipment on or off in series, as well as load shedding to help preserve battery power for critical connected equipment or reboot a hung device.

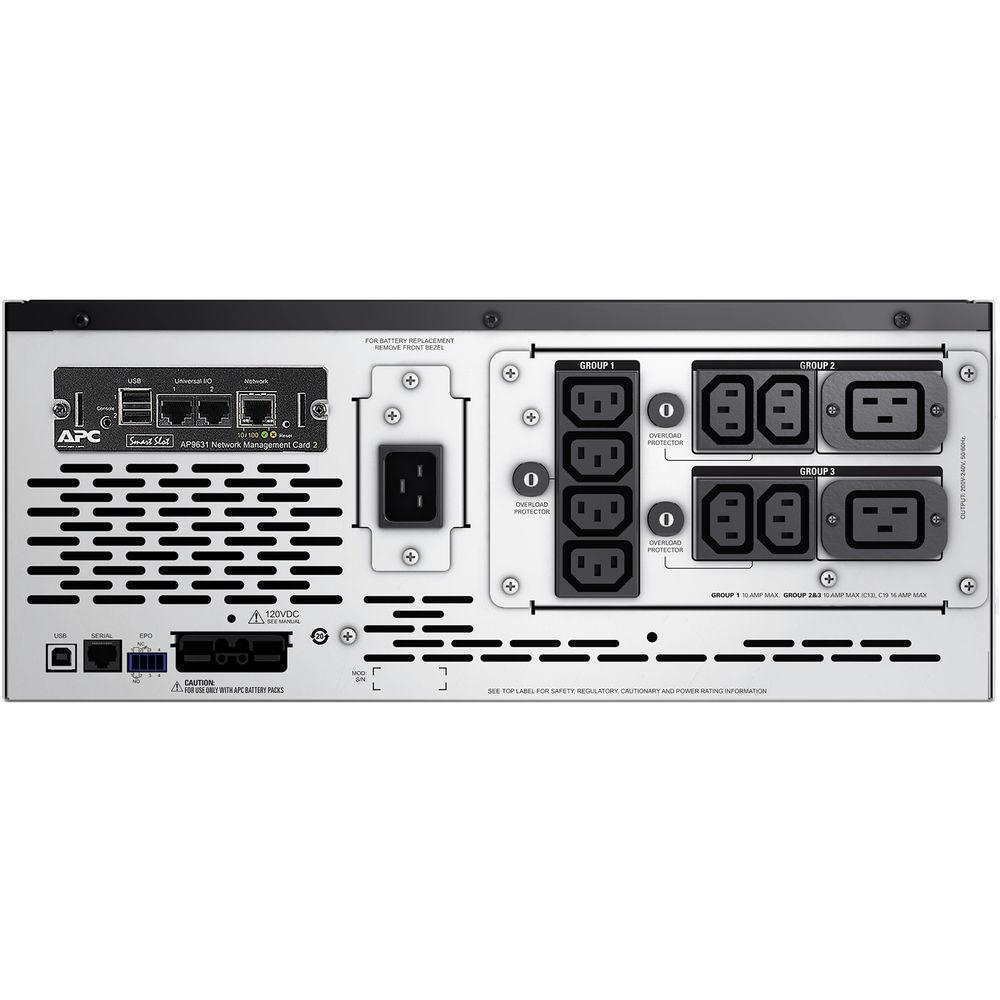

APC's Smart-UPS X features an output of 3000 VA / 2700W, an input range of 140-280V at 50/60 Hz ± 3 Hz, two IEC jumpers, eight IEC 320 C13 output connections, two IEC 320 C19 output connections, a surge energy rating of 645 joules, line-interactive topology, a sine waveform, and an LED status display to monitor the system and perform functions as needed. The built-in APCRBC143 battery is hot-swappable and may be recharged in around 3 hours. The SmartSlot is pre-installed with an AP9631 UPS Network Management Card and rackmount support rails, an RS-232 cable, and a temperature probe are also included. Smart-UPS Features & Benefits Safety - Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Adaptability - Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Serviceability - Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Manageability - Serial Connectivity
- Provides management of the UPS via a serial port.
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low, or if there is an overload condition.
- Network Manageable
- Provides remote power management of the UPS over the network.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
Availability - Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
Product Distribution - Countries
- Andorra, United Arab Emirates, Afghanistan, Albania, Armenia, Angola, Austria, Australia, Azerbaijan, Bosnia and Herzegovina, Belgium, Burkina Faso, Bulgaria, Bahrain, Burundi, Benin, Botswana, Belarus, Canada, The Democratic Republic Of Congo, Central African Republic, Congo, Switzerland, Côte d'Ivoire, Cameroon, Serbia and Montenegro, Cyprus, Czech Republic, Germany, Djibouti, Denmark, Algeria, Estonia, Egypt, Western Sahara, Eritrea, Spain, Ethiopia, Finland, France, Gabon, United Kingdom, Georgia, French Guiana, Ghana, Gibraltar, Gambia, Guinea, Guadeloupe, Equatorial Guinea, Greece, Croatia, Hungary, Indonesia, Ireland, Israel, Iraq, Iran, Iceland, Italy, Jordan, Kenya, Cambodia, Kuwait, Kazakhstan, Lebanon, Liechtenstein, Liberia, Lesotho, Lithuania, Luxembourg, Latvia, Morocco, Moldova, Madagascar, Macedonia, Mali, Myanmar, Mongolia, Martinique, Mauritania, Malta, Mauritius, Malawi, Mexico, Malaysia, Mozambique, Namibia, Niger, Nigeria, Netherlands, Norway, Nepal, New Zealand, Oman, Panama, Philippines, Pakistan, Poland, Portugal, Qatar, Reunion, Romania, Russia, Rwanda, Saudi Arabia, Sudan, Sweden, Singapore, Slovenia, Slovakia, Sierra Leone, Senegal, Somalia, Suriname, Turks and Caicos Islands, Chad, Togo, Thailand, Tajikistan, Turkmenistan, Tunisia, Turkey, Trinidad and Tobago, Tanzania, Ukraine, Uganda, United States, Uzbekistan, Vietnam, Yemen, Mayotte, South Africa, Zambia, Zimbabwe
In the Box APC Smart-UPS X Uninterruptible Power Supply with Network Card Rackmount Support Rails Smart UPS Signaling RS-232 Cable Temperature Probe Limited 2-Year Battery Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Smart-UPS X Uninterruptible Power Supply with Network Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMX3000HVNC Specs | | | Total Outlets | 10 | | Protected Outlets | 8 x IEC-320 C13 (Battery and Surge)
2 x IEC-320 C19 (Battery and Surge) | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Emergency Power Off (EPO) Support | Yes | | Noise Filtering | 0.3% | | Topology | Line Interactive | | Transfer Time | 2 to 10 ms | | | | Surge Energy Rating | 645 Joules | | Maximum Wattage | 2700 W | | Input Voltage Range | 208 to 240 VAC | | Input Voltage Adjustable Range | 140 to 280 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Output Voltage Range | 208 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 3000 VA | | Thermal Dissipation | 184 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | APCRBC143 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 4 RU | | Dimensions (W x H x D) | 17.0 x 7.0 x 19.0" / 432.0 x 178.0 x 483.0 mm | | Weight | 85.2 lb / 38.6 kg | | | | Package Weight | 107.0 lb | | Box Dimensions (LxWxH) | 25.0 x 23.0 x 13.0" |
