User Manual for APC SMC1000 Smart-UPS C 1000VA with LCD Click to enlarge the picture
Contents of the user manual for the APC SMC1000 Smart-UPS C 1000VA with
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC SMC1000 Smart-UPS C 1000VA with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

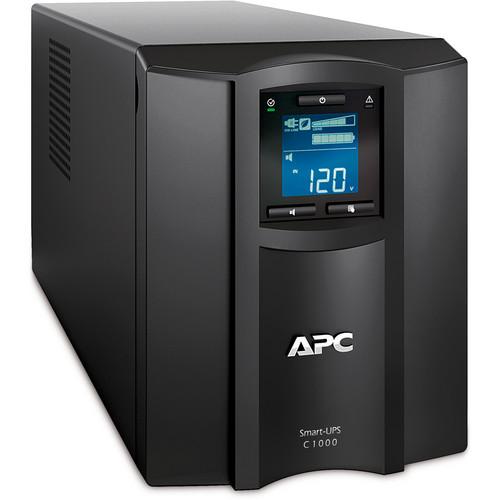

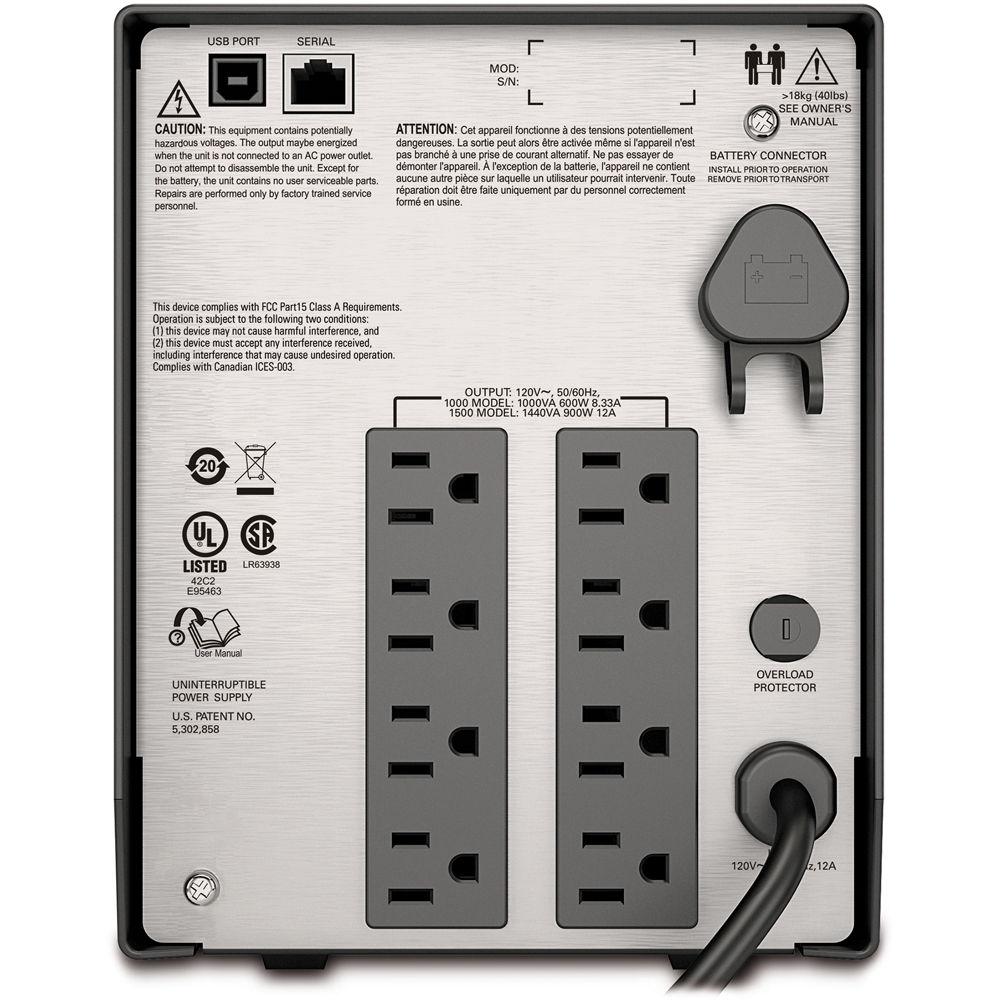

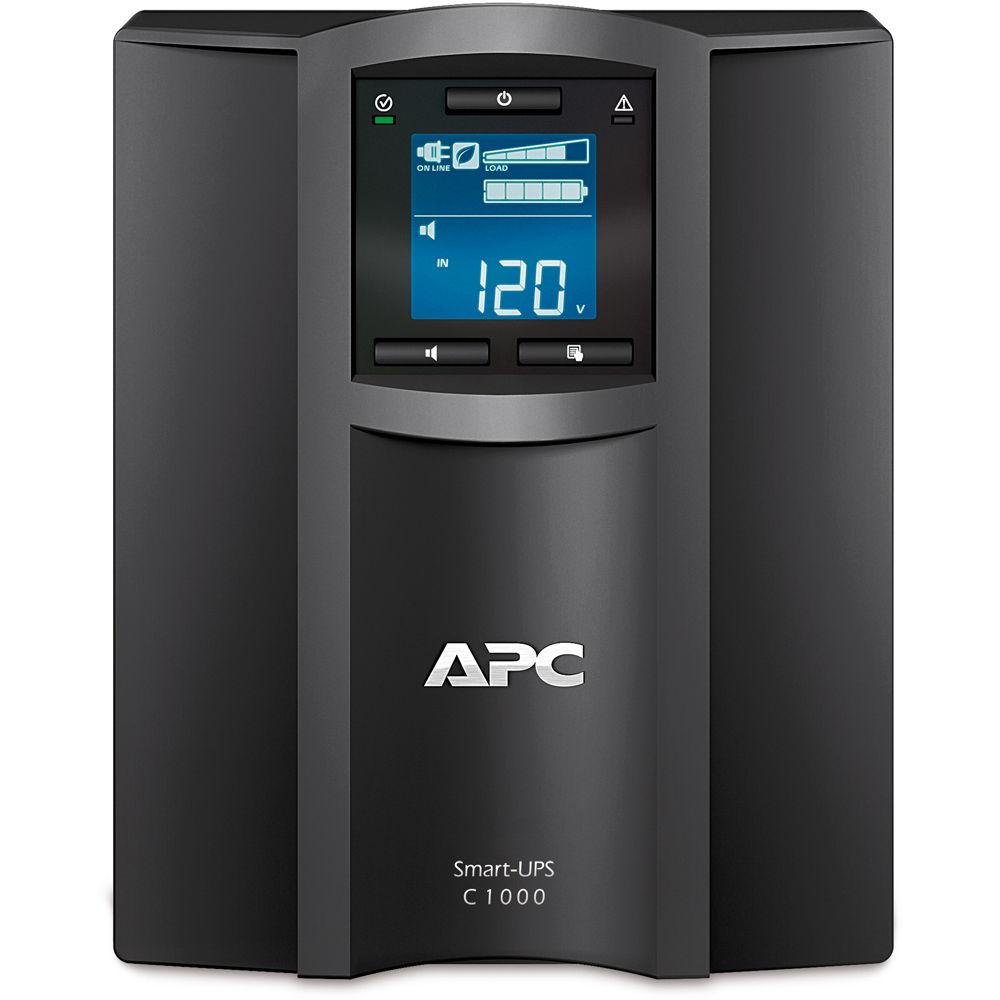

Product description The Smart-UPS C 1000VA with LCD (120V) by APC is a UPS (uninterruptible power supply) with a 120V output and input, and 8x NEMA 5-15R battery-powered outlets. It features pure sine wave output on battery which simulates utility power for servers and sensitive electronics, an LCD status display for quick status updates at a glance, and is cold-start capable, which means the outlets provide AC battery power when the utility power goes out.
It is also an efficient unit, with a patent-pending operating mode that bypasses electrical components in good condition in order to provide a high operating efficiency to the rest of the load. Because it generates less heat, it also reduces utility costs, and it prolongs battery life by regulating the charge voltage according to battery temperature.
A host of other features are included in the Smart-UPS line, including but not limited to, remote network management, hot-swappable user replaceable batteries, and predictive failure notification. - Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Pure Sine Wave Output on Battery
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- LCD Status Display
- Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- High Online Efficiency
- Reduces utility costs, generates less heat.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
UPC: 731304291879 In the Box APC SMC1000 Smart-UPS C 1000VA with LCD (120V) CD with Software Documentation CD USB Cable Limited 2-Year Warranty More from Manufacturer ubfqxwyb More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC SMC1000 Smart-UPS C 1000VA with LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SMC1000 Specs | | | Total Outlets | 8 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | No | | Noise Filtering | 0.3% | | Topology | Line Interactive | | | | Surge Energy Rating | 455 Joules | | Maximum Wattage | 600 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 85 to 136 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 1000 VA | | Thermal Dissipation | 100 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 41 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 8.5 x 6.7 x 17.3" / 215.0 x 171.0 x 439.0 mm | | Weight | 38.0 lb / 17.3 kg | | | | Package Weight | 43.25 lb | | Box Dimensions (LxWxH) | 23.25 x 14.25 x 13.0" |
