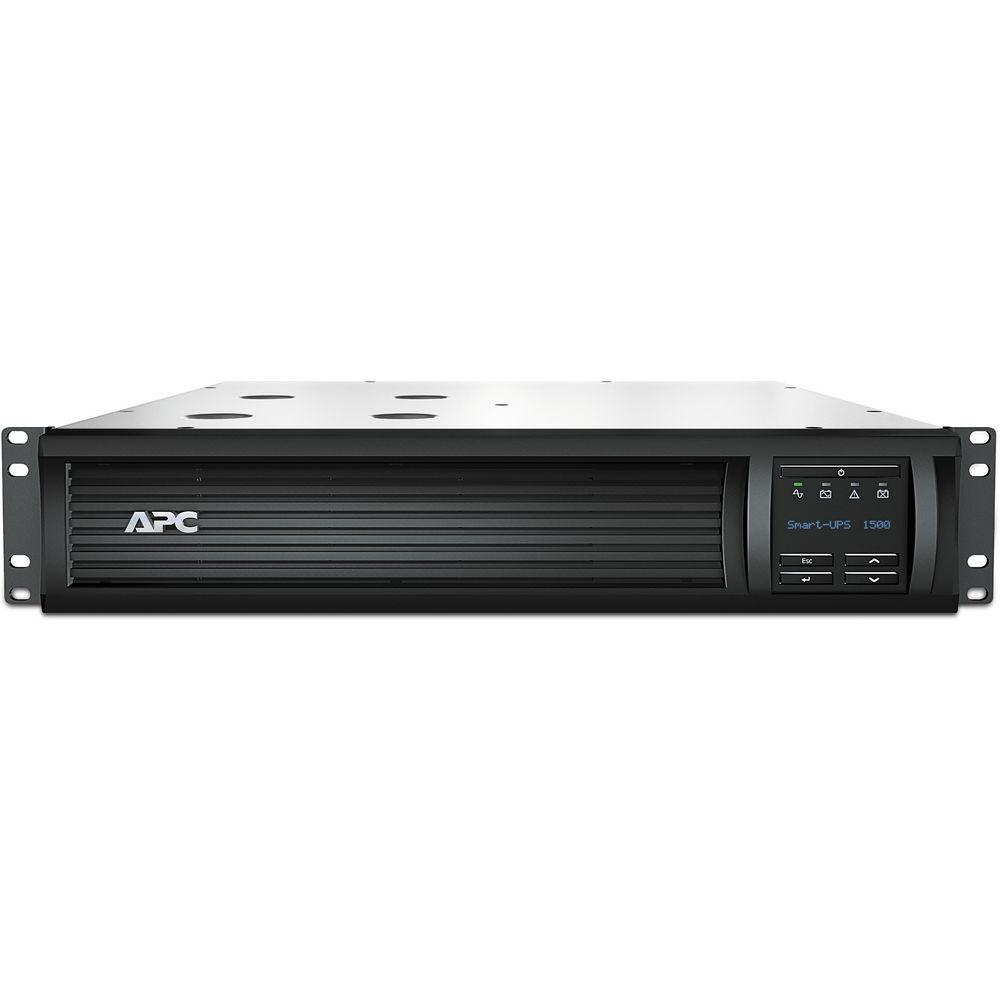

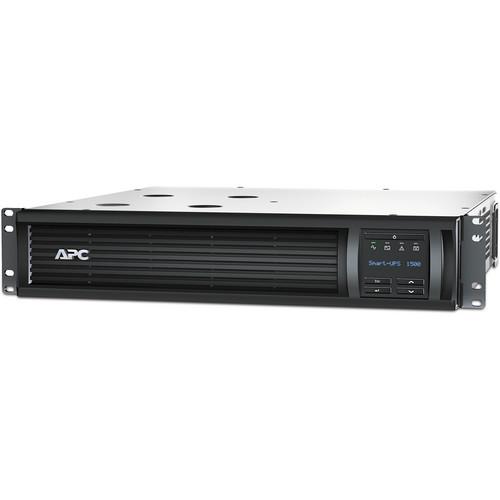

User Manual for APC SMT1500R2X122 Smart-UPS C 1500VA LCD 120V USB with Alarm Disabled Click to enlarge the picture
Contents of the user manual for the APC SMT1500R2X122 Smart-UPS C 1500VA LCD
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC SMT1500R2X122 Smart-UPS C 1500VA LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The black SMT1500R2X122 Smart-UPS C 1500VA LCD 120V USB with Alarm Disabled provides power to your important computer components in the event of an electrical outage. - Availability
- Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
Automatic Self-Test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Power Conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature. - Manageability
- Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
LED Indicators: Provides easy-to-read status of the unit and utility power conditions.
Serial Connectivity: Provides management of the UPS via a serial port.
SmartSlot: Customize UPS capabilities with management cards.
USB connectivity: Provides management of the UPS via a USB port - Serviceability
- Easy to install: Innovative design allows for fast, easy installation by almost anybody.
Hot-Swappable Batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
User-Replaceable Batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) UPC: 731304294061 In the Box APC SMT1500R2X122 Smart-UPS C 1500VA LCD 120V USB with Alarm Disabled (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC SMT1500R2X122 Smart-UPS C 1500VA LCD 120V USB with Alarm Disabled in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

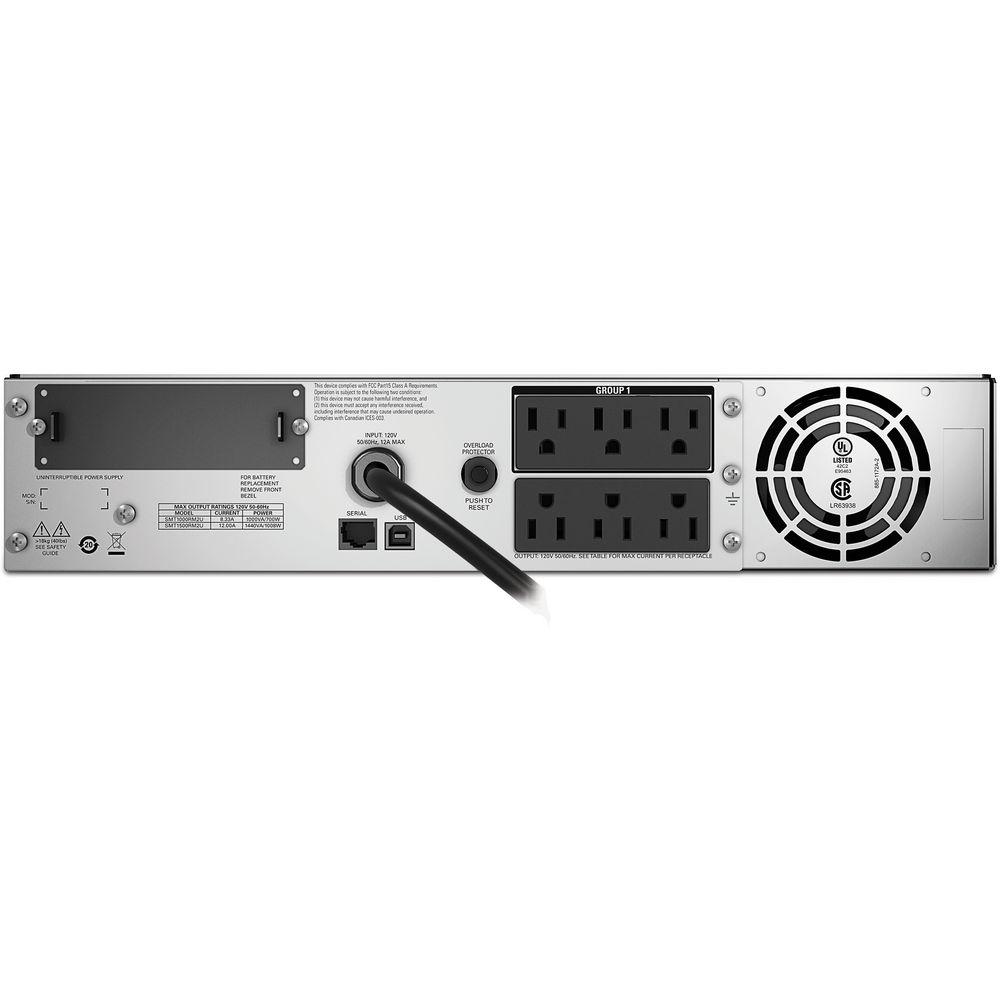

Technical parametersAPC 1500 Specs | | | Total Outlets | 8 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Communications | USB, Serial | | Noise Filtering | 0.3% | | Topology | Line Interactive | | | | Surge Energy Rating | 459 Joules | | Maximum Wattage | 980 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 1440 VA | | Thermal Dissipation | 135 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | RBC7 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 45 dBA | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 8.5 x 6.6 x 17.2" / 216.0 x 170.0 x 439.0 mm | | Weight | 53.1 lb / 24.1 kg | | | | Package Weight | 73.15 lb | | Box Dimensions (LxWxH) | 24.0 x 23.0 x 9.5" |
