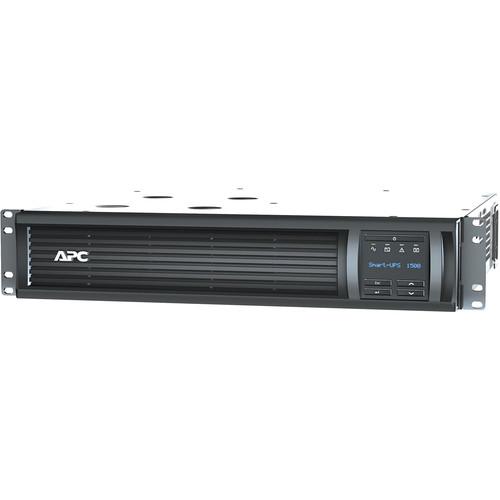

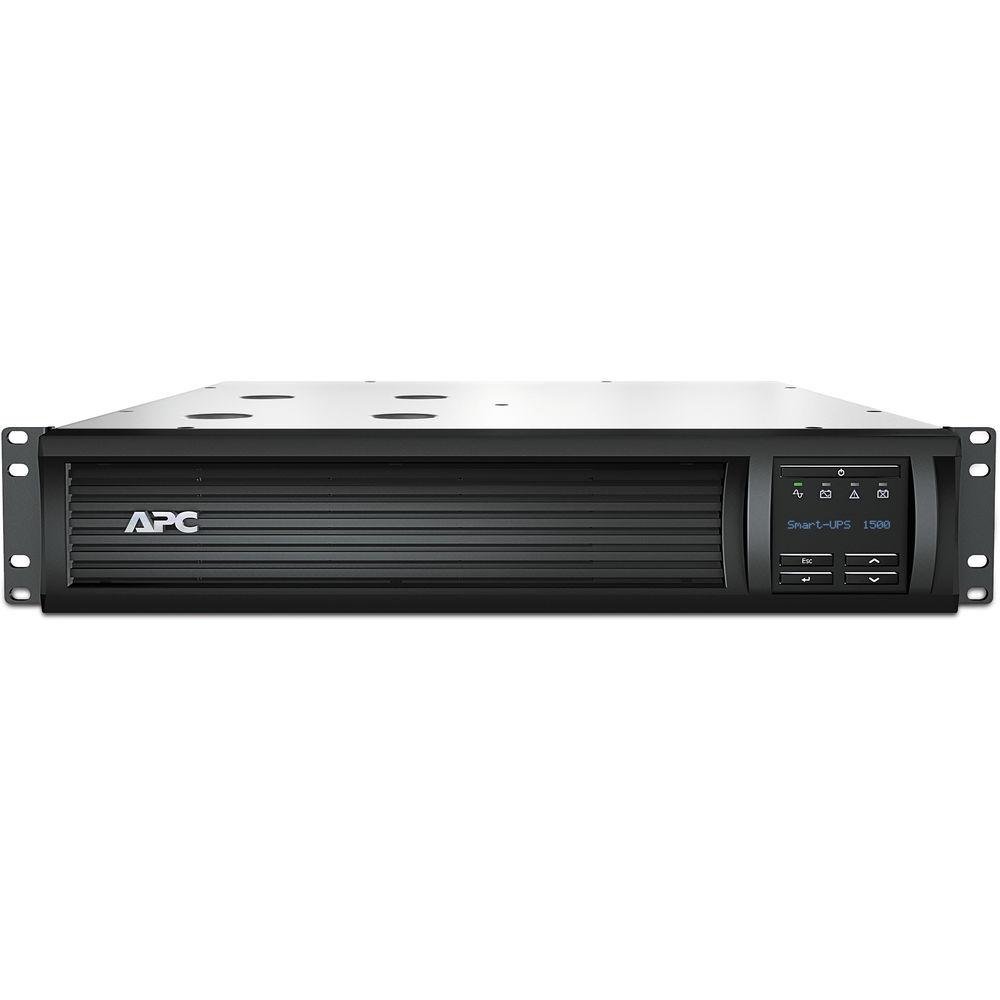

User Manual for APC SMT1500RMUS Smart-UPS 1500 VA LCD RM 2U 120 V US Click to enlarge the picture
Contents of the user manual for the APC SMT1500RMUS Smart-UPS 1500 VA LCD
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC SMT1500RMUS Smart-UPS 1500 VA LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The SMT1500RMUS Smart-UPS 1500 VA LCD RM 2U 120 V US from APC is a high performance uninterruptible power supply (UPS). It provides protection for electronic equipment from utility power blackouts, brownouts, sags, and surges; small utility fluctuations and large disturbances. The UPS also provides battery backup power until utility power returns to safe levels or the batteries are fully discharged. Operation - High Online Efficiency
- Reduces utlility costs, generates less heat
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
- Single Switched Outlet Group
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
- Pure Sine Wave Output on Battery
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
- Cold-Start Capable
- Provides temporary battery power when the utility power is out
- SmartSlot
- Customize UPS capabilities with management cards
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
Availability - Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models)
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Automatic Self Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Disconnect Battery Notification
- Warns when a battery is not available to provide backup power
Manageability - Network Manageable
- Provides remote power management of the UPS over the network
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition
- LED Status Indicators
- Quickly understand unit and power status with visual indicators
- Serial Connectivity
- Provides management of the UPS via a serial port
- USB Connectivity
- Provides management of the UPS via a USB port
Serviceability - User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
- Resettable Circuit Breakers
- Enables a quick recovery from overload events
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability - Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
Safety - Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
UPC: 731304305590 In the Box APC SMT1500RMUS Smart-UPS 1500 VA LCD RM 2U 120 V US CD with Software Documentation CD Rack Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Limited 3-Year Warranty More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC SMT1500RMUS Smart-UPS 1500 VA LCD RM 2U 120 V US in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

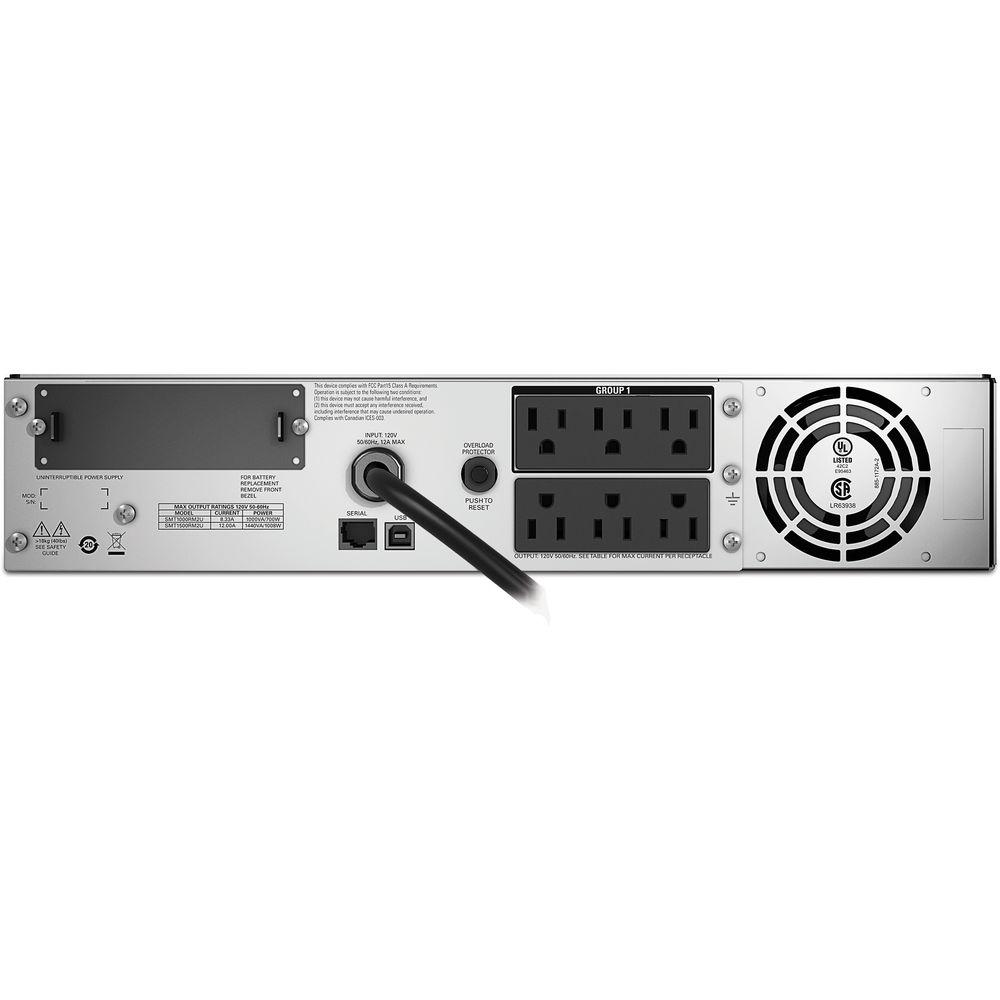

Technical parametersAPC SMT1500RMUS Specs | | | Total Outlets | 6 x NEMA 5-15R | | Plug Type | NEMA 5-15P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | No | | Noise Filtering | 0.3% | | Topology | Line Interactive | | | | Surge Energy Rating | 459 Joules | | Maximum Wattage | 1000 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 1440 VA | | Thermal Dissipation | 90 BTU/Hour | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 46 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 3.5 x 17.0 x 18.0" / 89.0 x 432.0 x 457.0 mm | | Weight | 62.7 lb / 28.5 kg | | | | Package Weight | 73.5 lb | | Box Dimensions (LxWxH) | 24.4 x 23.4 x 9.3" |
