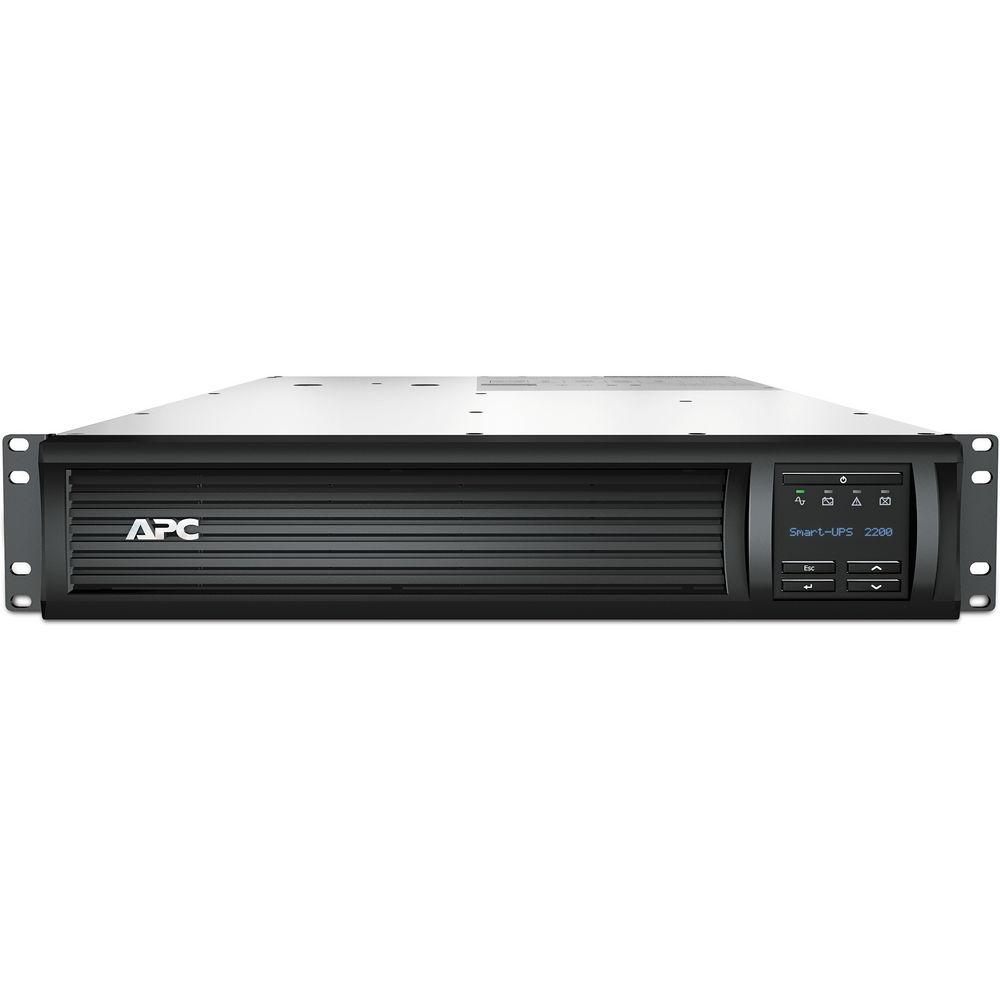

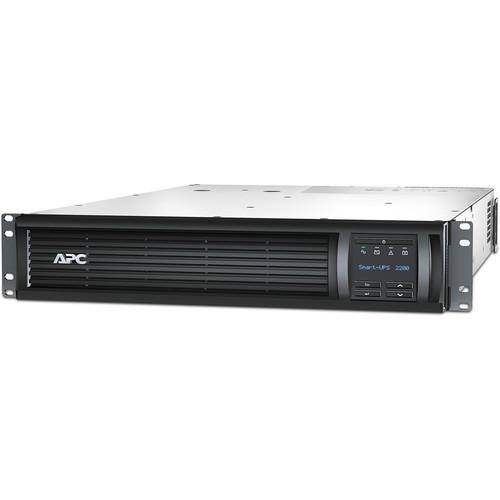

User Manual for APC SMT2200R2X106 1980 Watt Smart Uninterruptable Power Supply Click to enlarge the picture
Contents of the user manual for the APC SMT2200R2X106 1980 Watt Smart Uninterruptable
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC SMT2200R2X106 1980 Watt Smart Uninterruptable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

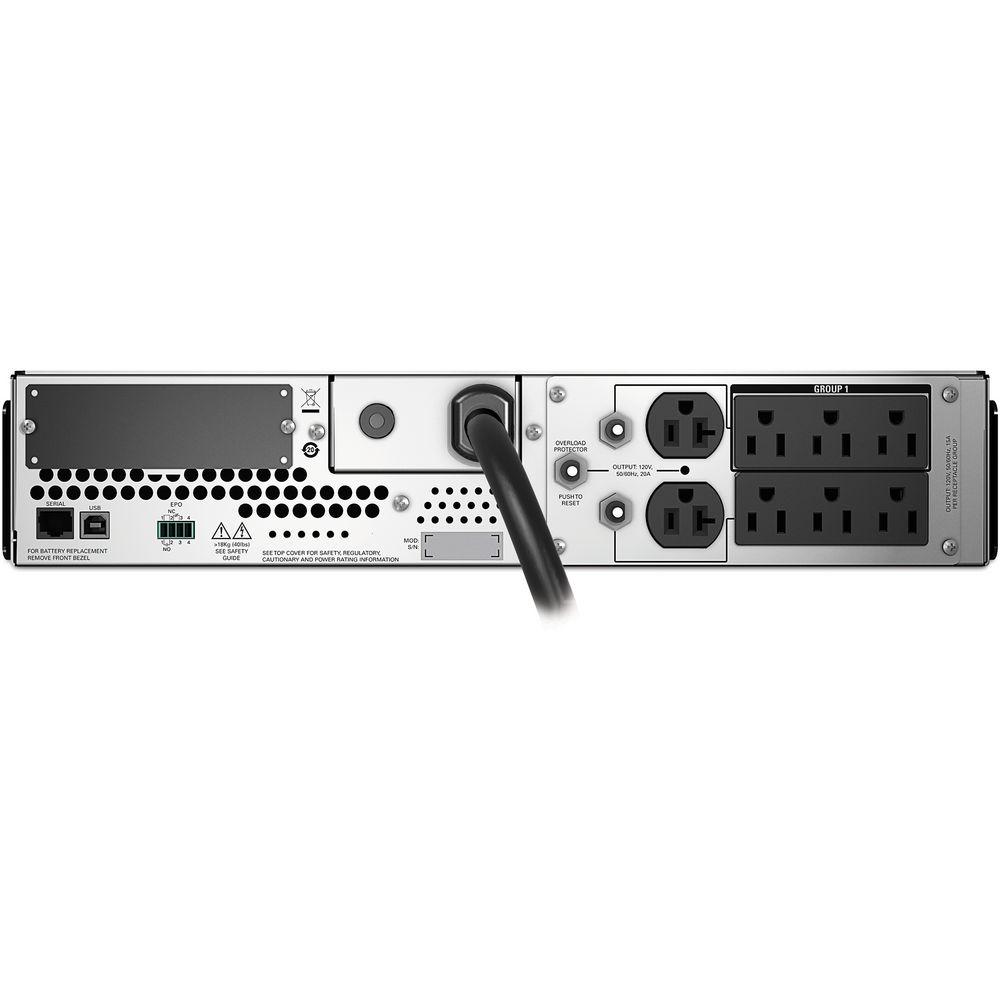

Product description The SMT2200R2X106 Smart Uninterruptable Power Supply from APC features six NEMA 5-15R and two NEMA 5-20R output connections along with an output power capacity of 1980 watts. Integrated line interactive technology found within this UPS redirects the battery's DC current path from the normal charging mode to supplying current when power is lost.
Along with enhanced output capacity found in this UPS, you also benefit from a 120 V nominal input voltage and a 50/60 Hz ± 3 Hz auto sensing input frequency. Input connectivity is provided via an integrated NEMA L5-20P connector with a cord length of 8 ft (2.44 m). Input voltage ranges from 82 to 143 V for main operations along with an adjustable range of 75 to 154 V. Additionally, this Smart UPS comes equipped with a maintenance-free sealed lead-acid battery with typical recharge time of 3 hours. Main Features - Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive Replace Battery Date
- Dynamically provides month and year when battery replacement is recommended to aide in long term maintenance planning.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power condition to achieve very high operating efficiency without sacrificing any protection.
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users.
- Pure Sine Wave Output On Battery
- Simulates utility power to provide an enhanced degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single Switched Outlet Group
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- StruxureWare Central Compatible
- Enables centralized management via StruxureWare Central.
- High Online Efficiency
- Reduces utility costs, generates less heat.
- SmartSlot
- Customize UPS capabilities with management cards.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Sequenced Network Shutdown and Reboot
- Customize network shutdown and reboot sequence of connected servers and UPSs.
Availability - Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Pure Sine Wave Output On Battery
- Simulates utility power to provide an enhanced degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability - Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- LED Indicators
- Provide easy-to-read status of the unit and utility power conditions.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- SmartSlot
- Customize UPS capabilities with management cards.
Serviceability - Easy to Install
- Innovative design allows for fast, easy installation.
- How-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
UPC: 731304294085 In the Box APC SMT2200R2X106 1980 Watt Smart Uninterruptable Power Supply Rack Mounting Brackets Rack Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Limited 2-Year Manufacturer Warranty for Battery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC SMT2200R2X106 1980 Watt Smart Uninterruptable Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 2200VA Specs | | | Total Outlets | 6 x NEMA 5-15R
2 x NEMA 5-20R | | Plug Type | NEMA L5-20P | | SmartSlot Interface | 1 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | | | Surge Energy Rating | 530 Joules | | Maximum Wattage | 1980 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Load Capacity | 2200 VA | | Thermal Dissipation | 215 BTU/Hour | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | RBC43 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 3.4 x 18.9 x 26.9" / 86.0 x 480.0 x 683.0 mm | | Weight | 93.3 lb / 42.3 kg | | | | Package Weight | 114.0 lb | | Box Dimensions (LxWxH) | 38.0 x 24.0 x 10.0" |
